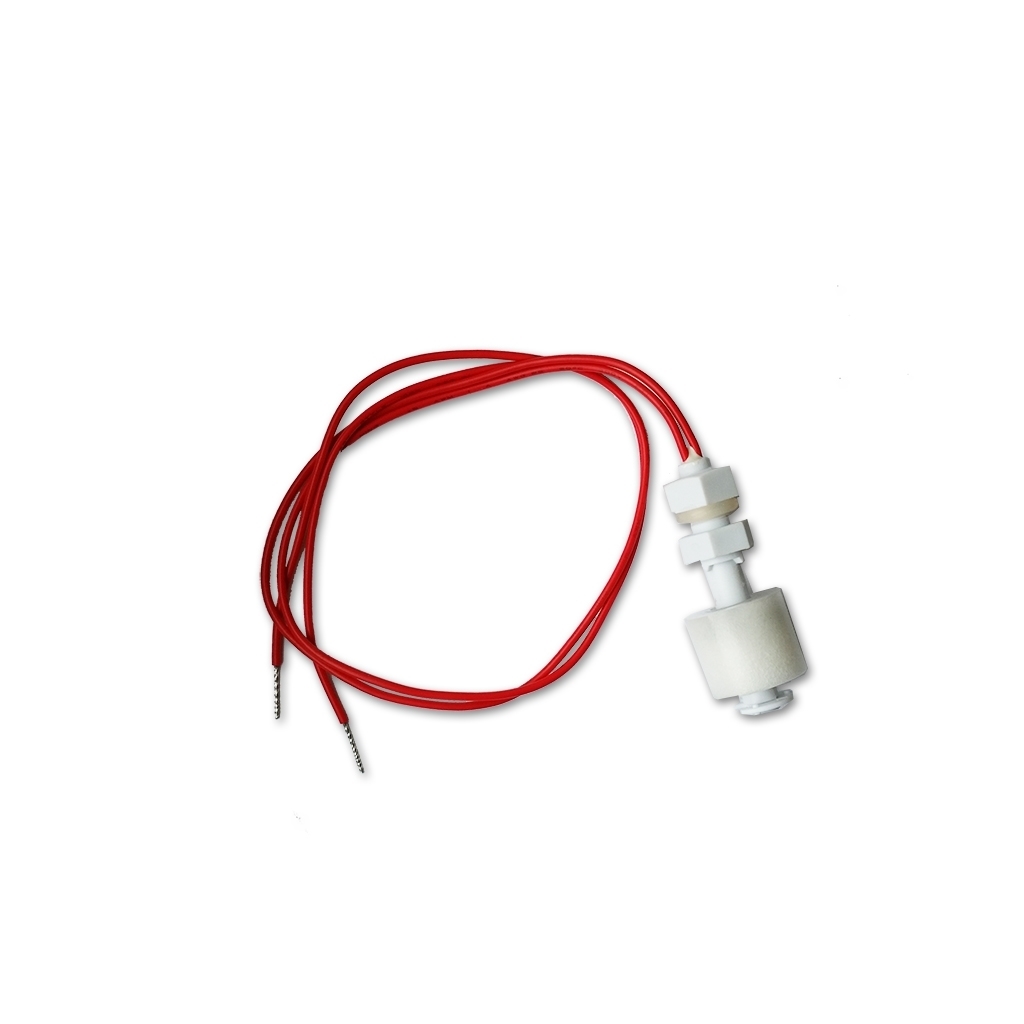

Mechanical water level float switch

160-110-061100

https://boutiquepro.ghlinc.com/web/image/product.template/3911/image_1920?unique=145afa6

36.23 $ CAD 36.230000000000004 CAD 36.23 $ CAD

36.23 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    This plastic liquid level switch can be installed inside a water tank or fertilizer solution and can be connected to a controller and then to a pump. The controller can actuate and/or stop the start of a pump or a valve to fill the tank to a precise level.

    This float can also be used to trigger an alarm on a high or low level.



    The switch can be installed in a normally open (NO) or normally closed (NC) configuration. To change the configuration, simply reverse the direction of the float. To do this, remove the tip in a semicircle, remove the float ring, reverse the direction of the float ring and then reinsert it and replace the tip in a semicircle. It is possible to check the electrical configuration of the switch using a multimeter. If the meter reading indicates a value (about <10.0 ohms) when the float ring is at the base and then no value when it is no longer there, the circuit is normally closed (NC). If the meter reading does not indicate a value when the float ring is at the base and then a value (about <10.0 ohms) when it is no longer there, it is normally open (NO)



    Switch type
    50 Watts, normally closed (NC) or normally open (NO)
    Maximum pressure
    25 PSIG
    Maximum switching current
    0.5 A
    Maximum switching voltage
    220 VDC
    Maximum liquid temperature
    90°C
    Specific gravity
    0.80
    Dimension (float)
    19 mm (3/4") wide x 47 mm (1,85'') height
    Wire lenght
    350 mm (13,8")
    Wire type
    24 AWG PVC
    Material (float)
    Polypropylene



    This plastic liquid level switch can be installed inside a water tank or fertilizer solution and can be connected to a controller and then to a pump. The controller can actuate and/or stop the start of a pump or a valve to fill the tank to a precise level.

    This float can also be used to trigger an alarm on a high or low level.



    The switch can be installed in a normally open (NO) or normally closed (NC) configuration. To change the configuration, simply reverse the direction of the float. To do this, remove the tip in a semicircle, remove the float ring, reverse the direction of the float ring and then reinsert it and replace the tip in a semicircle. It is possible to check the electrical configuration of the switch using a multimeter. If the meter reading indicates a value (about <10.0 ohms) when the float ring is at the base and then no value when it is no longer there, the circuit is normally closed (NC). If the meter reading does not indicate a value when the float ring is at the base and then a value (about <10.0 ohms) when it is no longer there, it is normally open (NO)



    Switch type
    50 Watts, normally closed (NC) or normally open (NO)
    Maximum pressure
    25 PSIG
    Maximum switching current
    0.5 A
    Maximum switching voltage
    220 VDC
    Maximum liquid temperature
    90°C
    Specific gravity
    0.80
    Dimension (float)
    19 mm (3/4") wide x 47 mm (1,85'') height
    Wire lenght
    350 mm (13,8")
    Wire type
    24 AWG PVC
    Material (float)
    Polypropylene

    Control By computer
    Inventory stocked
