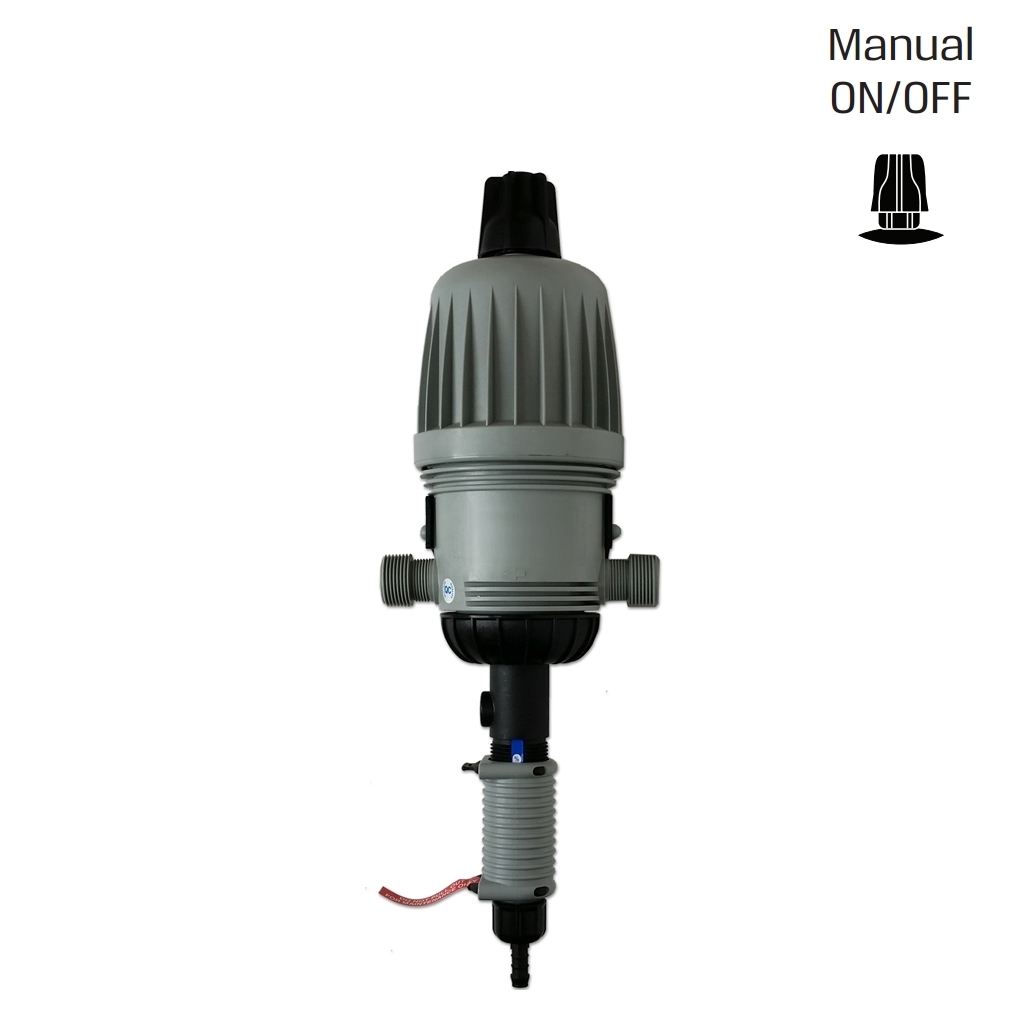

MixRite TF-3 1" 0.2-2% 0.088-14gpm ON/OFF proportional injector

160-140-031000

https://boutiquepro.ghlinc.com/web/image/product.template/4345/image_1920?unique=768ddd0

697.56 $ CAD 697.5600000000001 CAD 697.56 $ CAD

697.56 $ CAD

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF3 2% IL) and instruction manual.
    Flow range "to operate properly" 0.088 - 14 gpm (20-3200 L/h)
    Dosage rate 0.2 - 2% (1:500 - 1:50)
    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Air release system Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process)
    Inlet x Outlet size 1" MPT x 1" MPT
    Material

    NBR seals

    SST springs

    Typical chemical application

    Fertilizer

    Low acid concentration (<10% for most acid types)

    Etc.




    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF3 2% IL) and instruction manual.
    Flow range "to operate properly" 0.088 - 14 gpm (20-3200 L/h)
    Dosage rate 0.2 - 2% (1:500 - 1:50)
    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Air release system Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process)
    Inlet x Outlet size 1" MPT x 1" MPT
    Material

    NBR seals

    SST springs

    Typical chemical application

    Fertilizer

    Low acid concentration (<10% for most acid types)

    Etc.

    Air release system Manual ON/OFF
    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Dosage rate 0.2 - 2% (1:500 - 1:50)
    Inventory stocked
    Water flow 0.088 - 14 gpm (20-3200 L/h)
    Outer tube diameter (O.D.) 1 "
    Connection type Male pipe thread (MPT)
    Dosing flow N/A
    Connection type MPT x MPT
