Inyector MixRite TF25 2" 0.3-2.5% 9-110 gpm ON/OFF (bomba dosificadora proportional)
160-140-031300
Disponibilidad:
en stock
Tiempo de envío si no hay stock::
hasta 3 semanas
En caso de falta de stock::
SÓLO SE REPONDE SI LO PIDES
Referencia interna:
160-140-031300

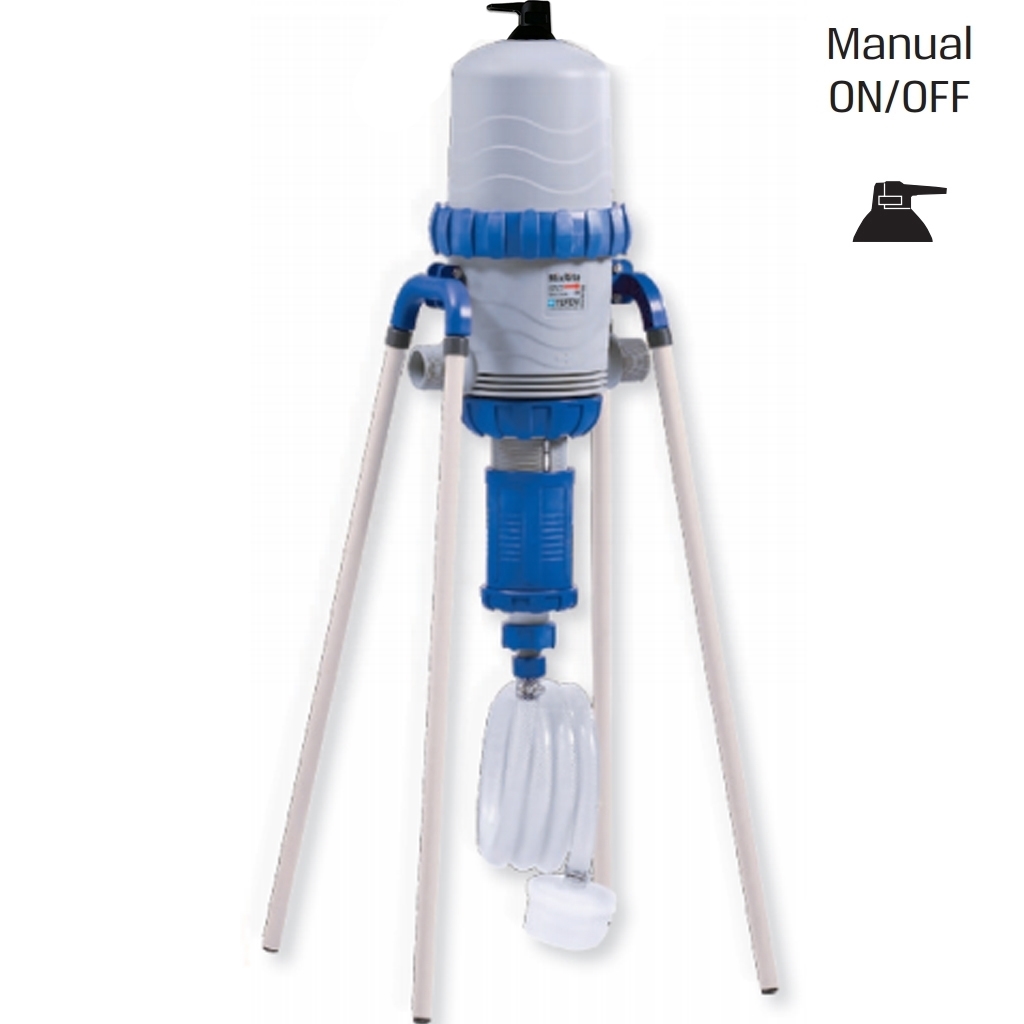

* Actual injector shape may differ from image.
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ TF-25 (25 m3/h) - 0.3%-2.5% - Manual On/Off |
| Included | Bomba dosificadora, tubo de aspiración y accesorios, soporte de montaje en pared en plástico, medios de instalación vertical con las piernas, llave inglesa, ensembre de juntas tóricas de repuesto para silicona (Seal Kit TF25) y manual de instrucciones |
| Flow range "to operate properly" |
9 - 110 gpm (2000-25000 L/h) |
| Proporción de inyección | 0.3 - 2.5% (1:333 - 1:40) |
| Presión operacional | 14.7 - 120 PSI (1-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
2" MPT x 2" MPT |
| Material | Seals en NBR Fuentes en SST |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etcétera |
| Air release system | Manual ON/OFF |
| Order-driven inventory | |
| Dosage rate | 0.3 - 2.5% (1:333 - 1:40) |
| Working pressure | 14.7 - 120 PSI (1-8 bar) |
| Water flow | 9 - 110 gpm (2000-25000 L/h) |
| Outer tube diameter (O.D.) | 2 " |
| Connection type | Male pipe thread (MPT) |
| Dosing flow | 6 - 625 L/h (1.59-165.4 gph) |
| Connection type | MPT x MPT |
