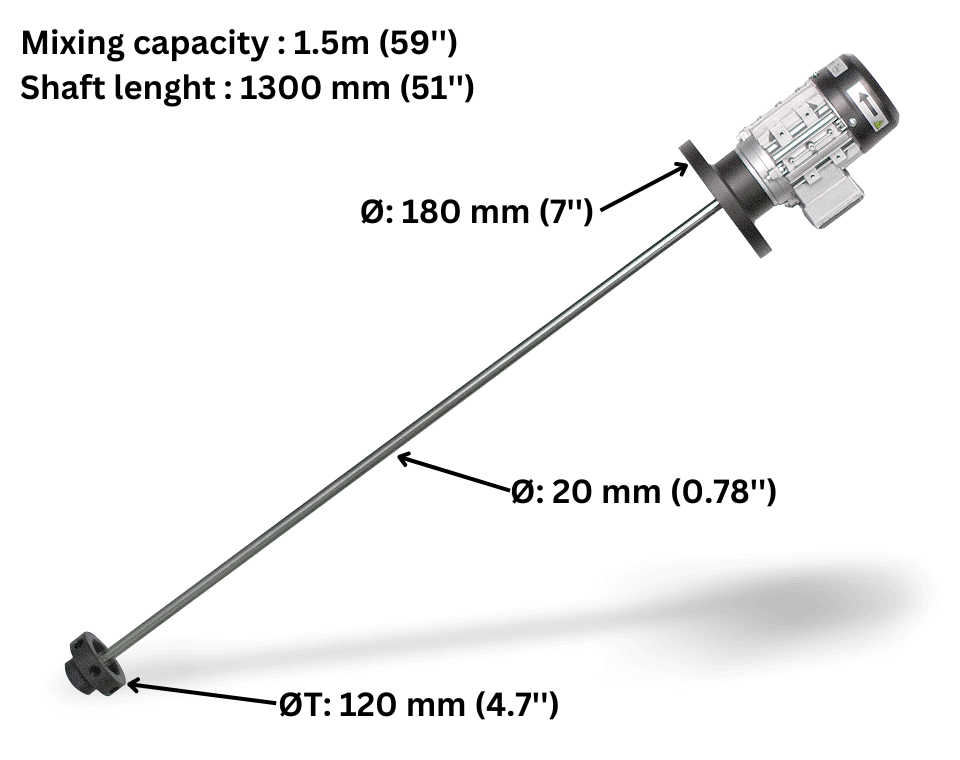

ITC Turbine agitator (mixer) 3-phase motor 230V 60Hz 444W, shaft stainless 1.3m, mixing 1.5mm
160-140-10A2-AB-B1300-T12P
Délai d’expédition si en rupture de stock:
2-4 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-140-10A2-AB-B1300-T12P
Turbine agitator exclusively designed by ITC with 6 spouts, three of them radial with a centrifugal movement to produce a rotation of liquid, and three of them axial to stir the bottom.
- Dismountable turbine without edges, for greater security.
- Direct transmission shaft in stainless steel.
| Material | PP, AISI304 |
| Turbine Ø | 130mm (60Hz) |
| Length | 1300mm (51.1'') |
| Shaft Ø | 20mm (0.78'') |
| Support | Flange |
| Motor | 400V - 3ph - 50/60Hz - 370W T71 |
| Volume | 3 m3 (800 gal) |
| Flow | 5 m3/h (22 gpm) |
| Order-driven inventory | |
| Dosage rate | Many possibilities |
| Water flow | Works regardless of water flow |
| Working pressure | Upcoming info |
| Dosing flow | N/A |
| Outer tube diameter (O.D.) | Upcoming info |
| Connection type | Upcoming info |
Submit a Ticket
Turbine agitator exclusively designed by ITC with 6 spouts, three of them radial with a centrifugal movement to produce a rotation of liquid, and three of them axial to stir the bottom.
- Dismountable turbine without edges, for greater security.
- Direct transmission shaft in stainless steel.
| Material | PP, AISI304 |
| Turbine Ø | 130mm (60Hz) |
| Length | 1300mm (51.1'') |
| Shaft Ø | 20mm (0.78'') |
| Support | Flange |
| Motor | 400V - 3ph - 50/60Hz - 370W T71 |
| Volume | 3 m3 (800 gal) |
| Flow | 5 m3/h (22 gpm) |
