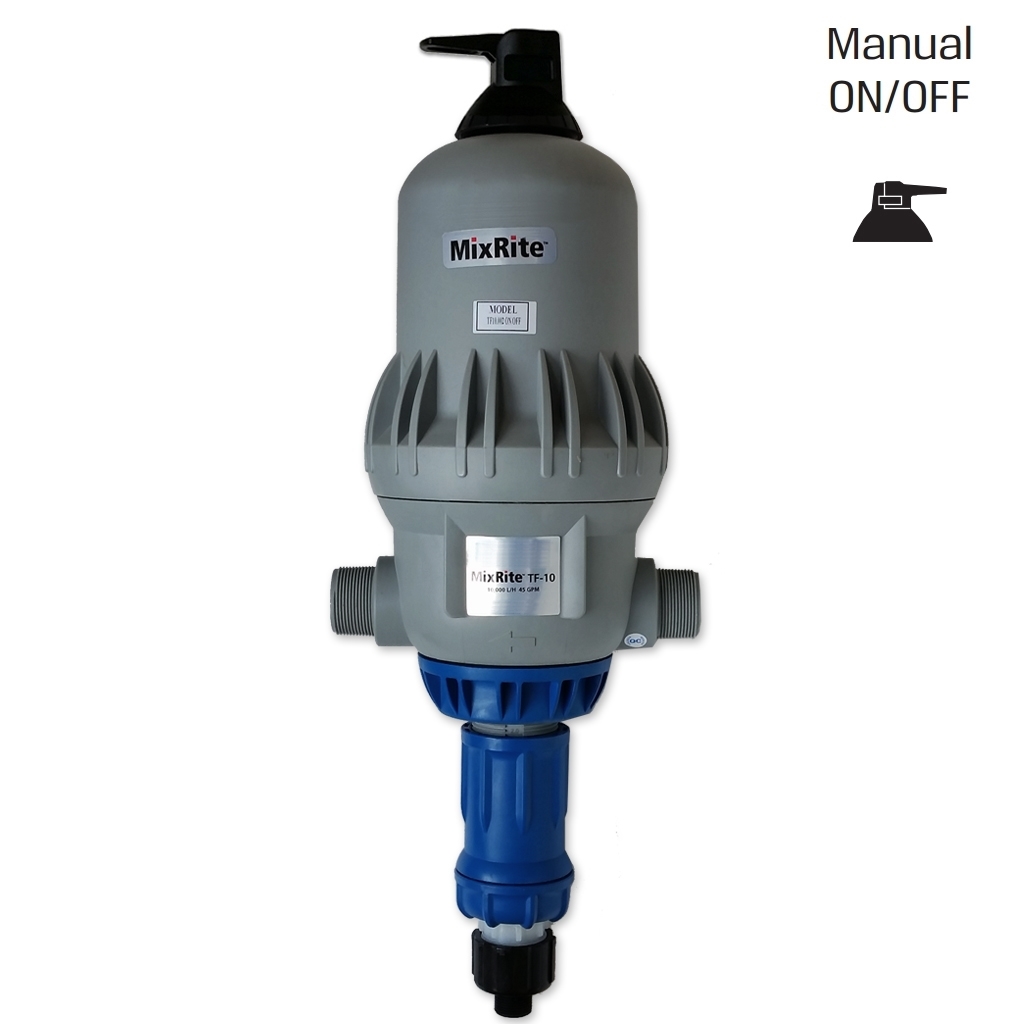

Inyector MixRite TF10 1.5" 0.2-2% 2-45gpm ON/OFF (bomba dosificadora proportional)
160-140-031200
Disponibilidad:
pedido pendiente
Tiempo de envío si no hay stock::
hasta 3 semanas
En caso de falta de stock::
Generalmente se mantiene en stock, estará disponible pronto
Referencia interna:
160-140-031200
*La forma real del inyector puede diferir de la imagen.
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ TF-10 (10 m3/h) - 0.2%-2% - Manual On/Off |
| Included | Bomba dosificadora, tubo de aspiración y accesorios, soporte de montaje en pared en plástico, ensembre de juntas tóricas de repuesto para silicona (Seal Kit TF10 2% IL) y manual de instrucciones |
| Flow range "to operate properly" |
2 - 45 gpm (500-10000 L/h) |
| Proporción de inyección | 0.2 - 2% (1:500 - 1:50) |
| Presión operacional | 14.7 - 120 PSI (1-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
1.5" MPT x 1.5" MPT |
| Material |
Seals en NBR Fuentes en SST |
| Typical chemical application |
Fertilizer Baja concentración de ácidos (<10% de para la Mayoría de los Tipos de Ácidos) Etc. |
| Air release system | Manual ON/OFF |
| Inventory stocked | |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Working pressure | 14.7 - 120 PSI (1-8 bar) |
| Water flow | 2 - 45 gpm (500-10000 L/h) |
| Outer tube diameter (O.D.) | 1 1/2 " |
| Connection type | Male pipe thread (MPT) |
| Dosing flow | 1 - 200 L/h (0.26-53gph) |
| Connection type | MPT x MPT |
