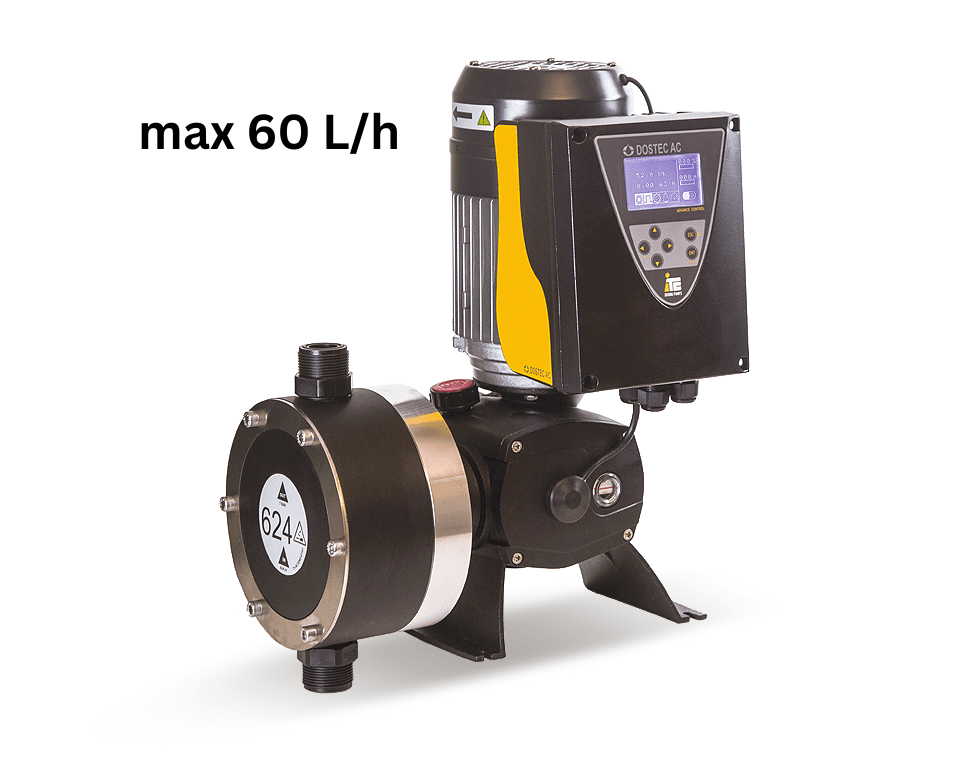

ITC Dostec AC Bombas dosificadoras de pistón Advanced Control 60 /h 15 bar conexión:. 3/4"
Disponibilidad:
pedido pendiente
Tiempo de envío si no hay stock::
2-4 semaines
En caso de falta de stock::
SÓLO SE REPONDE SI LO PIDES
Dostec AC is a diaphragm or piston dosing pump with advanced control for an accurate and efficient automatic dosing.
This series allows many dosing possibilities depending on the chosen head.
The flow of 60 l/h (16 gph), pressures of 15 bar (217 psi).
Voltage: 230V - 0.43kW - 1 phase
Suction lift: 9m (30')
The correct selection of head’s materials, PP, PVDF or S.S., makes this pump suitable for the most chemicals products used in water treatment, chemical industry, food and beverage and agriculture.
Operation modes
Manual: manual flow adjustment through the keyboard
Analogue: dosing flow proportional to a 0/4-20mA signal
Proportional to flow: proportional dosing to a water flow
Proportional to pulses: stroke frequency proportional to input pulses
Batch control, by volume: dosing a defined volume, after a manual, remote or time pre-set start
Batch control, by time: dosing for a defined time, after a manual, remote or time pre-set start
ModBus: dosing control through ModBus RTU protocol
Dostec AC Cloud manager Manuel EN
Batch mode configuration with APP
Cloud manager Proportional mode
Especificaciones
| Materiales | Cylindre PP│Piston Ceramic│Valve PP│Ball Boro. o Cylindre PVDF│Piston Ceramic│Valve PVDF│Ball Boro. o Cylindre PP│Piston PEUMW│Valve-Ball PP - Boro. |
Dostec AC is a diaphragm or piston dosing pump with advanced control for an accurate and efficient automatic dosing.
This series allows many dosing possibilities depending on the chosen head.
The flow of 60 l/h (16 gph), pressures of 15 bar (217 psi).
Voltage: 230V - 0.43kW - 1 phase
Suction lift: 9m (30')
The correct selection of head’s materials, PP, PVDF or S.S., makes this pump suitable for the most chemicals products used in water treatment, chemical industry, food and beverage and agriculture.
Operation modes
Manual: manual flow adjustment through the keyboard
Analogue: dosing flow proportional to a 0/4-20mA signal
Proportional to flow: proportional dosing to a water flow
Proportional to pulses: stroke frequency proportional to input pulses
Batch control, by volume: dosing a defined volume, after a manual, remote or time pre-set start
Batch control, by time: dosing for a defined time, after a manual, remote or time pre-set start
ModBus: dosing control through ModBus RTU protocol
Dostec AC Cloud manager Manuel EN
Batch mode configuration with APP
Cloud manager Proportional mode
| Diámetro exterior del tubo (O.D.) | 3/4 " |
| Inventario a pedido | |
| Proporción de inyección | Muchas posibilidades |
| Flujo de aqua | Funciona independientemente del flujo de agua |
| Presión laboral | Información por venir |
| Flujo de dosificación | N/D |
| Diámetro exterior del tubo (O.D.) | Información por venir |
| Tipo de conexión | Información por venir |
