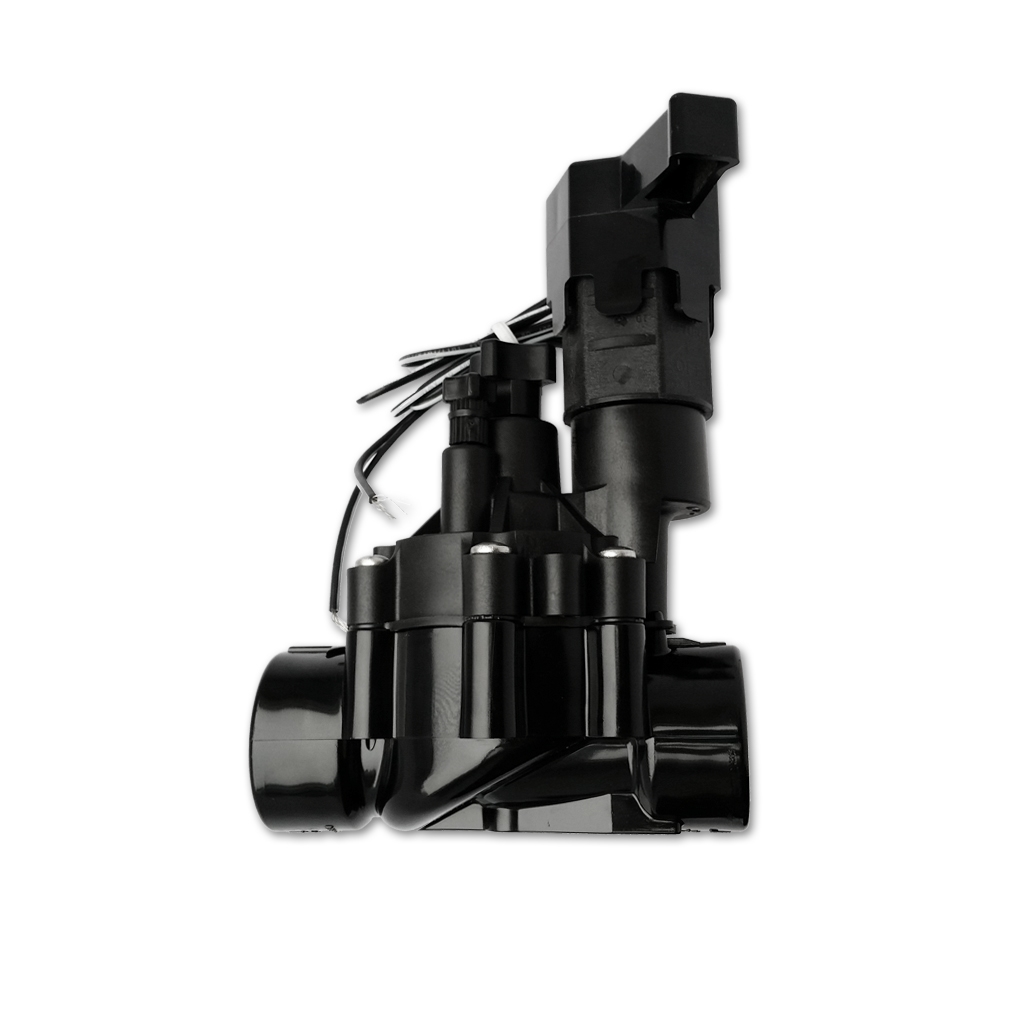

Electrical valve 24Vac 1" FPT black (right) flow regul. Rain Bird
150-150-081700
Availability:
in stock
Shipping time if backordered::
jusqu'à 2 semaines
In case of backorder::
Only replenished IF YOU ORDER IT
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
This model is equipped with a second screw (cross handle) acting as an ordinary valve and allowing to block the flow of water if necessary (example, so that the water flows less quickly at the exit of the system of a cross- irrigation).
| Model | 100-DVF (DVF serie) with flow control valve. |
| Configuration | Straight configuration (globe) |
| Inlet x Outlet size | 1'' FPT x 1'' FPT |
| Flow | 0.2 to 40 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.45 A Holding current: 0.25 A Coil resistance: 38 Ohms |
| Size | 6 1/4" x 3 1/3" x 4 3/8" (16 x 8.4 x 11.1 cm) |
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
This model is equipped with a second screw (cross handle) acting as an ordinary valve and allowing to block the flow of water if necessary (example, so that the water flows less quickly at the exit of the system of a cross- irrigation).
| Model | 100-DVF (DVF serie) with flow control valve. |
| Configuration | Straight configuration (globe) |
| Inlet x Outlet size | 1'' FPT x 1'' FPT |
| Flow | 0.2 to 40 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.45 A Holding current: 0.25 A Coil resistance: 38 Ohms |
| Size | 6 1/4" x 3 1/3" x 4 3/8" (16 x 8.4 x 11.1 cm) |
| Outer tube diameter (O.D.) | 1 " |
| Order-driven inventory | |
| Connection type | Female pipe thread (FPT) |
| Connection type | FPT x FPT |
