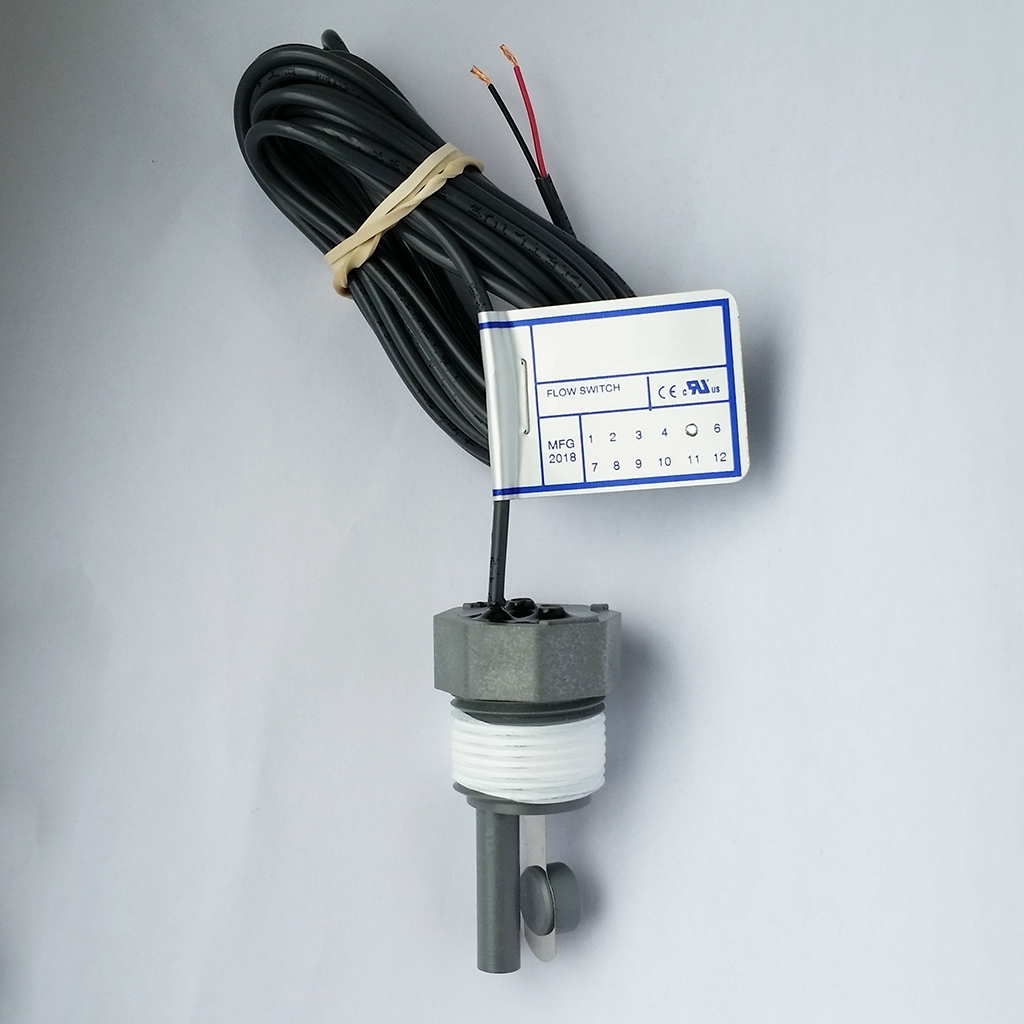

Flow switch 3/4" MPT

160-110-063400

https://ghlinc.odoo.com/web/image/product.template/3928/image_1920?unique=44cc8db

160.42 $ CAD 160.42000000000002 CAD 160.42 $ CAD

160.42 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    This flow switch is screwed on a tee connector with a 3/4 "output (side" c ") The other side of the tee fitting (" a "and" b " must be of the size of the pipe in which the fluid passes. The length of the flow switch paddle must be selected according to the size of the hose. It detects the movement or lack of movement of the liquid.



    Connection
    3/4" MPT
    Minimum flow rate detected for different pipe diameter

    3/4" - min. 0.9 gpm (3.4 L/m)

    1" - min. 1.1 gpm (4.2 L/m)

    1 1/2" - min. 2.8 gpm (10.6 L/m)

    2" - min. 4.9 gpm (18.6L/m)

    3" - min. 11.0 gpm (41.6 L/m)

    4" - min. 19.6 gpm (74.1L/m)

    5" - min. 30.6 gpm (115.7 L/m)

    6" - min. 135 gpm (510.3 L/m)

    Working Temperature
    180˚F (83˚C) Maximum
    Working Pressure
    200 PSI @ 70 ° F
    Electrical (Reed) Switch

    SPNO signal

    Max: AC / DC 30 Volts / 0.1Amp



    Enclosure
    NEMA 4X / IP 66
    Material

    Body in Noryl® (PPO) (10% fiberglass)

    316 stainless steel paddle

    Epoxy seal




    This flow switch is screwed on a tee connector with a 3/4 "output (side" c ") The other side of the tee fitting (" a "and" b " must be of the size of the pipe in which the fluid passes. The length of the flow switch paddle must be selected according to the size of the hose. It detects the movement or lack of movement of the liquid.



    Connection
    3/4" MPT
    Minimum flow rate detected for different pipe diameter

    3/4" - min. 0.9 gpm (3.4 L/m)

    1" - min. 1.1 gpm (4.2 L/m)

    1 1/2" - min. 2.8 gpm (10.6 L/m)

    2" - min. 4.9 gpm (18.6L/m)

    3" - min. 11.0 gpm (41.6 L/m)

    4" - min. 19.6 gpm (74.1L/m)

    5" - min. 30.6 gpm (115.7 L/m)

    6" - min. 135 gpm (510.3 L/m)

    Working Temperature
    180˚F (83˚C) Maximum
    Working Pressure
    200 PSI @ 70 ° F
    Electrical (Reed) Switch

    SPNO signal

    Max: AC / DC 30 Volts / 0.1Amp



    Enclosure
    NEMA 4X / IP 66
    Material

    Body in Noryl® (PPO) (10% fiberglass)

    316 stainless steel paddle

    Epoxy seal

    Outer tube diameter (O.D.) 3/4 "
    Inventory stocked
    Connection type Male pipe thread (MPT)
