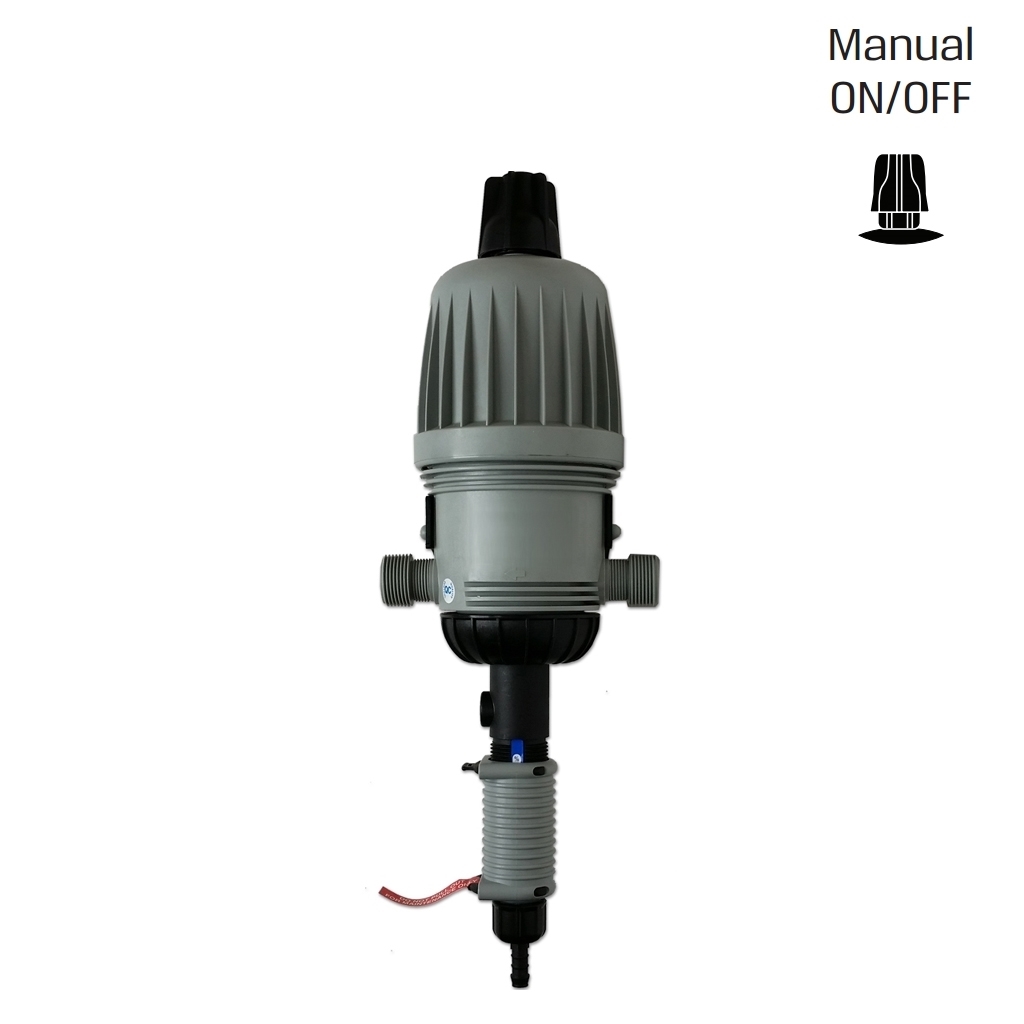

MixRite TF-3 1" 0.2-2% 0.088-14gpm ON/OFF proportional injector
160-140-031000
- Tefen_MixRite_500serie_GHL-Manuel_2012-06-07_FR_EN_ES.pdf
- Tefen_MixRite_GHL-Catalogue_V2014-02-02_EN.pdf
- Tefen_MixRite-Catalogue_V2010-01-27_FR.pdf
- Tefen_MixRite_GHL-Chemical_resistances_V2015-03-04_EN.pdf
- GHL_Tefen_MixRite-Procedure_graissage_et_changement_joints_V2015-03-17_EN.pdf
- GHL_Tefen_MixRite-Test_calibration_rapide_V2015-03-17_FR.pdf
- GHL_Tefen_MixRite-Procedure_rincage_et_entreposage_V2015-03-17_FR.pdf
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Usually kept in stock, will be available soon
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF |
| Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF3 2% IL) and instruction manual. |
| Flow range "to operate properly" | 0.088 - 14 gpm (20-3200 L/h) |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
| Air release system | Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size | 1" MPT x 1" MPT |
| Material |
NBR seals SST springs |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF |
| Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit TF3 2% IL) and instruction manual. |
| Flow range "to operate properly" | 0.088 - 14 gpm (20-3200 L/h) |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
| Air release system | Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size | 1" MPT x 1" MPT |
| Material |
NBR seals SST springs |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
| Air release system | Manual ON/OFF |
| Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
| Dosage rate | 0.2 - 2% (1:500 - 1:50) |
| Inventory stocked | |
| Water flow | 0.088 - 14 gpm (20-3200 L/h) |
| Outer tube diameter (O.D.) | 1 " |
| Connection type | Male pipe thread (MPT) |
| Dosing flow | N/A |
| Connection type | MPT x MPT |
