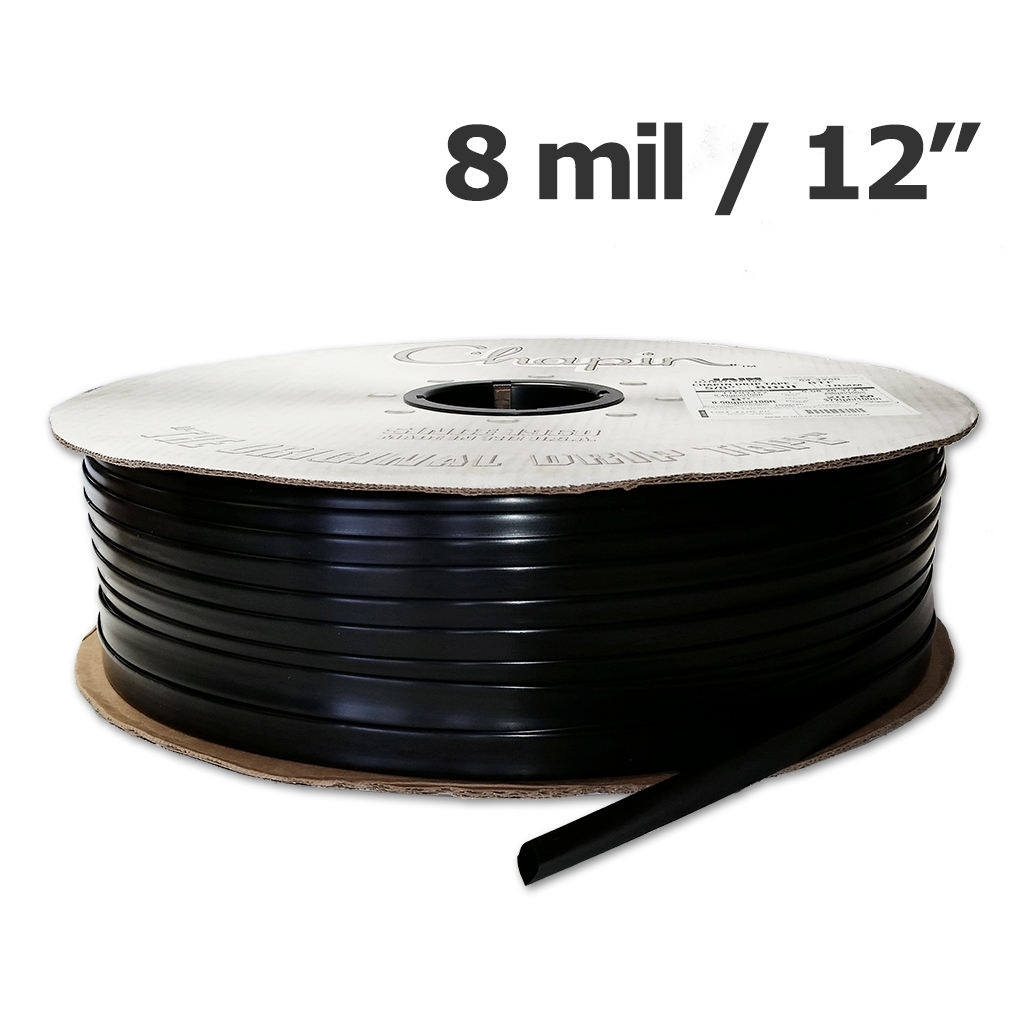

Chapin BTF drip tape 8mil 12" 0.5 gpm 5/8" (3750')
150-110-031200
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
jusqu'à 3 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
150-110-031200
Turbulent double-walled tubing Chapin commonly known as drip tape. Designed for watering in greenhouses and row crops, as well as for irrigation of outdoor crops.
|
Model
|
Chapin drip tape - 8 mil 12'' 0.5 3750 BTF |
|
Inside diameter (ID)
|
5/8" (16 mm) |
|
Wall thickness *
|
8 mil |
|
Spacing
|
12'' (30 cm) |
|
Flow @ 8 PSI
|
0.40 gpm/100' (298 L/h /100m) 0.24 gph/dripper (0.91 L/h /dripper) |
|
Flow @ 10 PSI
|
0.50 gpm/100' (372 L/h /100m) 0.30 gph/dripper (1.13 L/h /dripper) |
|
Reel length
|
3,750' (1,143 meters) |
|
Recommended filtration
|
150 mesh |
|
Material
|
Low density polyethylene |
The thickness required is determined by the type of application. For example, for non-woody plants produced in greenhouses, we suggested 4 or 8 mil. For outdoor production, we would recommend 10 or 15 mil. It is also called as collapsible hose, as once pressurized it becomes round and collapses on depressurizing. Being a flat tube it can be supplied on reels containing several thousand feet. Turbulent flow-path that makes it a clog-resistant drip tape. A 150-200 mesh filter has to be installed before drip tape. An operation pressure of 10 PSI is recommended.
* mil = wall thickness in thousands of an inch.
| Color | Black |
| Inventory stocked | |
| Material | Low density polyethylene |
| Outer tube diameter (O.D.) | 5/8 '' |
