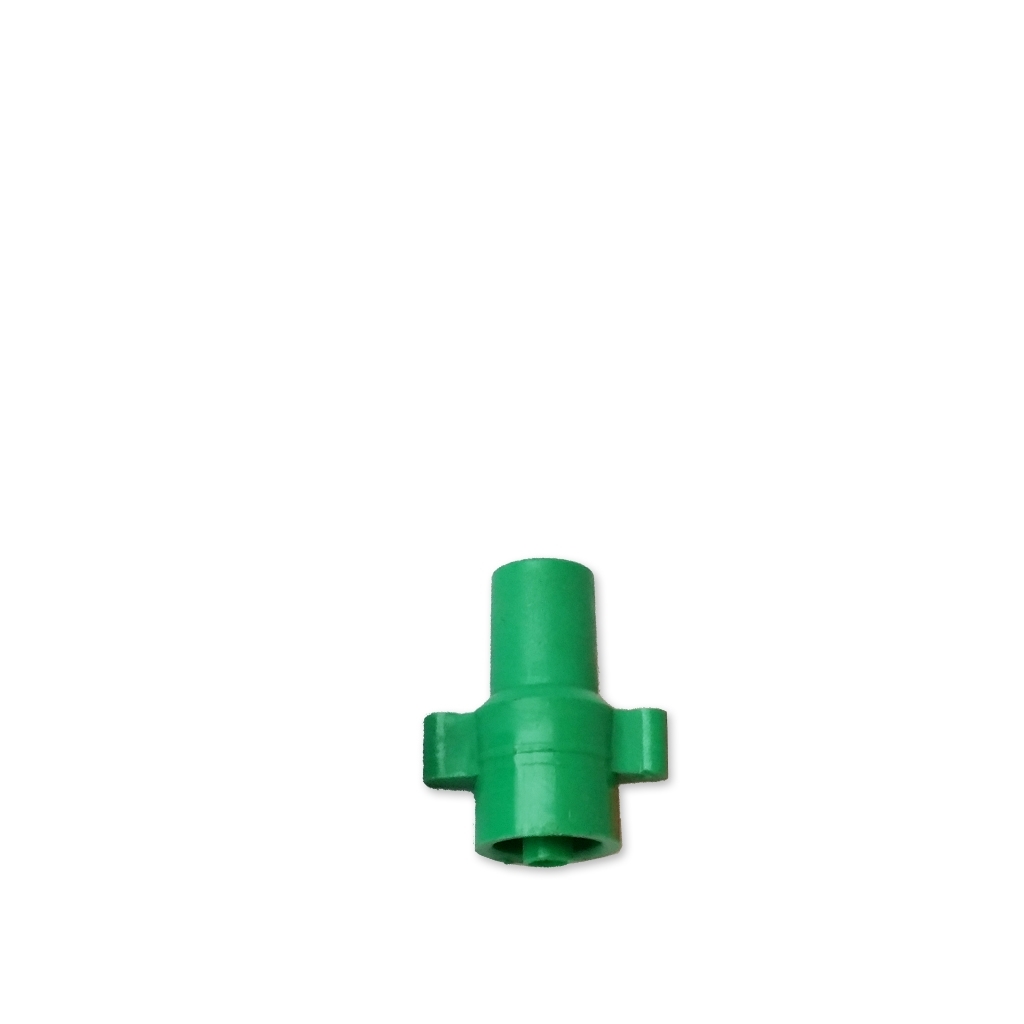

Dan Green antimist (0.035") (50/pk)

150-130-022700-50

https://ghlinc.odoo.com/web/image/product.template/9879/image_1920?unique=efa6e63

37.01 $ CAD 37.01 CAD 37.01 $ CAD

37.01 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    The Dan antimist  is a part of a Dan Modular Group sprinkler assembly. It can be installed before the Dan Bridge to prevent the formation of very small droplets of water and thus reduce the drift of the water droplets by the wind and thus favor the irrigation by sprinkling rather than the misting.



    Model Green (.035”) Modular Antimist
    Quantity per package

    50 / bag

    Opening Diameter

    0.035" (0.94 mm)

    Flow

    If used with the blue nozzle (sold separately): 10.6 gph (40 L/h) @ 29PSI

    Other parts of DAN MODULAR GROUP package sold separately

    irrigation line connector

    micro tube

    stabilizer weight

    spinner/spreader and nozzle

    dan bridge

    Applications Greenhouses, tunnels, multichapels and other closed structures, nursery, etc.
    Specifications

    •Wetting diameter: 1 to 10 meters (2.6 to 36.1 feets) depending on the selected nozzle and spinner / spreader (sold separately)

    •Recommended pressure regulator: 35 PSI (ou 1.5 à 3.0 bar / 15 à 50 PSI)
    •Recommended filter:

    purple and brown nozzles: minimum 130 μ (120 mesh)

    other nozzles: minimum 200 μ (70 mesh)

    Features & Benefits

    The Dan modular micro-sprinklers and micro-jets offers a wide range of jets to meet all needs of diameter, shape and watering rate. This suspended or inverted irrigation system saves a lot of labor time while providing unrivaled uniformity. Please consult our representatives for a nozzle assembly that meets your specific watering, humidification or misting requirements.




    The Dan antimist  is a part of a Dan Modular Group sprinkler assembly. It can be installed before the Dan Bridge to prevent the formation of very small droplets of water and thus reduce the drift of the water droplets by the wind and thus favor the irrigation by sprinkling rather than the misting.



    Model Green (.035”) Modular Antimist
    Quantity per package

    50 / bag

    Opening Diameter

    0.035" (0.94 mm)

    Flow

    If used with the blue nozzle (sold separately): 10.6 gph (40 L/h) @ 29PSI

    Other parts of DAN MODULAR GROUP package sold separately

    irrigation line connector

    micro tube

    stabilizer weight

    spinner/spreader and nozzle

    dan bridge

    Applications Greenhouses, tunnels, multichapels and other closed structures, nursery, etc.
    Specifications

    •Wetting diameter: 1 to 10 meters (2.6 to 36.1 feets) depending on the selected nozzle and spinner / spreader (sold separately)

    •Recommended pressure regulator: 35 PSI (ou 1.5 à 3.0 bar / 15 à 50 PSI)
    •Recommended filter:

    purple and brown nozzles: minimum 130 μ (120 mesh)

    other nozzles: minimum 200 μ (70 mesh)

    Features & Benefits

    The Dan modular micro-sprinklers and micro-jets offers a wide range of jets to meet all needs of diameter, shape and watering rate. This suspended or inverted irrigation system saves a lot of labor time while providing unrivaled uniformity. Please consult our representatives for a nozzle assembly that meets your specific watering, humidification or misting requirements.

    Part type Sprinkler / nozzle
    Irrigation type Sprinkling on table 4' to 6'
    Irrigation type Sprinkling on table 10' to 38'
    Quantity per pack 50
