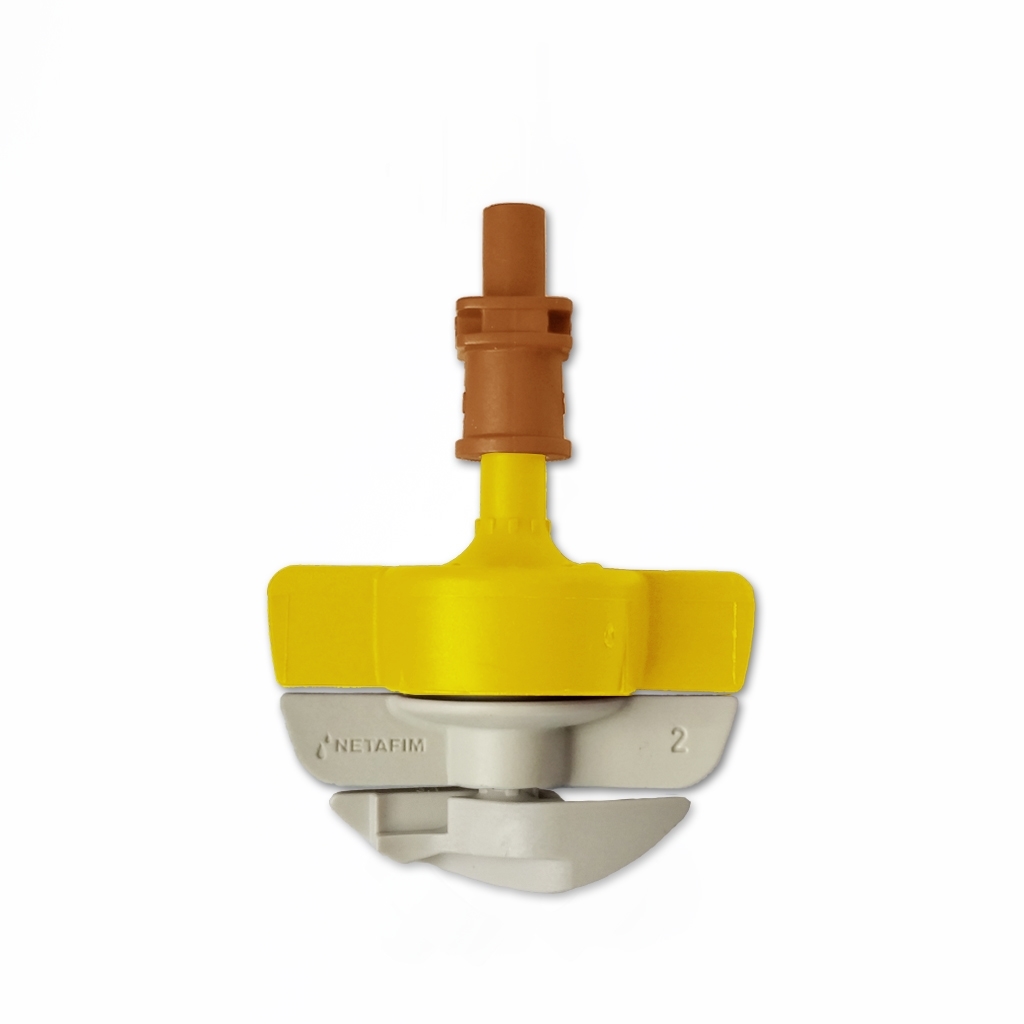

SpinNet SD BR-Y-GY 24.3 gph flat distributor sprinkler (25/pk)

150-130-032000-25

https://boutiquepro.ghlinc.com/web/image/product.template/9974/image_1920?unique=a78be51

48.06 $ CAD 48.06 CAD 48.06 $ CAD

48.06 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    Sprinkler assembly including SD (shoulder distributor/mist control), nozzle/body and spinner, without check valve (anti-drip).



    Model

    SpinNet™ SD BR-Y-GY

    03552000090-B SPNT SD FLT 200090 HEAD ONLY

    Flow rate

    (@ 2.0 bar (29 PSI))

    Brown SD (shoulder distributor/mist control) and yellow nozzle/body (200/090): 24.3 gph (92 L/h)

    Wetted diameter

    (@ 1.5m (5'), 2.5 bar (36 PSI))

    FLT model (flat distributor ) - Grey spinner BR-Y-GY : 7.5 m (24.6')
    Quantity per package 25/bag
    Other parts of SPINNET™ package sold separately

    check valve

    barb x female connector

    micro tube

    stabilizer weight

    and barb x barb connector

    Applications Greenhouses, tunnels, multichapels and other closed structures, nursery ...
    Specifications Design without bridge
    • Recommended pressure regulator: 35 PSI (29-43 PSI / 2.0-3.0 bar)
    • Recommended filter: minimum 130 μ (120 mesh)
    Features & Benefits

    • Spinnet is a micro-sprinkler designed to function head down, perfectly adapted for crops under shelters (greenhouses, multi-chapels, tunnels ...).
    • Spinnet ™ micro-sprinklers are designed without bridge to prevent runoff. This design allows the plants located below the sprinklers to not be damaged by drops of water running down the diffuser.
    • Interchangeable parts. The Spinnet ™ micro-sprinkler can be dismantled manually. No tools are required for cleaning.
    • Acid-resistant raw materials (AA), allowing chemicals to be injected into the network. The system can be cleaned with suitable acid treatments.
    • Excellent uniformity of distribution on a complete irrigation system.




    Sprinkler assembly including SD (shoulder distributor/mist control), nozzle/body and spinner, without check valve (anti-drip).



    Model

    SpinNet™ SD BR-Y-GY

    03552000090-B SPNT SD FLT 200090 HEAD ONLY

    Flow rate

    (@ 2.0 bar (29 PSI))

    Brown SD (shoulder distributor/mist control) and yellow nozzle/body (200/090): 24.3 gph (92 L/h)

    Wetted diameter

    (@ 1.5m (5'), 2.5 bar (36 PSI))

    FLT model (flat distributor ) - Grey spinner BR-Y-GY : 7.5 m (24.6')
    Quantity per package 25/bag
    Other parts of SPINNET™ package sold separately

    check valve

    barb x female connector

    micro tube

    stabilizer weight

    and barb x barb connector

    Applications Greenhouses, tunnels, multichapels and other closed structures, nursery ...
    Specifications Design without bridge
    • Recommended pressure regulator: 35 PSI (29-43 PSI / 2.0-3.0 bar)
    • Recommended filter: minimum 130 μ (120 mesh)
    Features & Benefits

    • Spinnet is a micro-sprinkler designed to function head down, perfectly adapted for crops under shelters (greenhouses, multi-chapels, tunnels ...).
    • Spinnet ™ micro-sprinklers are designed without bridge to prevent runoff. This design allows the plants located below the sprinklers to not be damaged by drops of water running down the diffuser.
    • Interchangeable parts. The Spinnet ™ micro-sprinkler can be dismantled manually. No tools are required for cleaning.
    • Acid-resistant raw materials (AA), allowing chemicals to be injected into the network. The system can be cleaned with suitable acid treatments.
    • Excellent uniformity of distribution on a complete irrigation system.

    Part type Sprinkler / nozzle
    Quantity per pack 25
    Irrigation type Sprinkling on table 10' to 38'
    Order-driven inventory
    Wetted diameter 7.5 m (24.6')
    Flow rate 92.0 L/h (24.3 gph)
