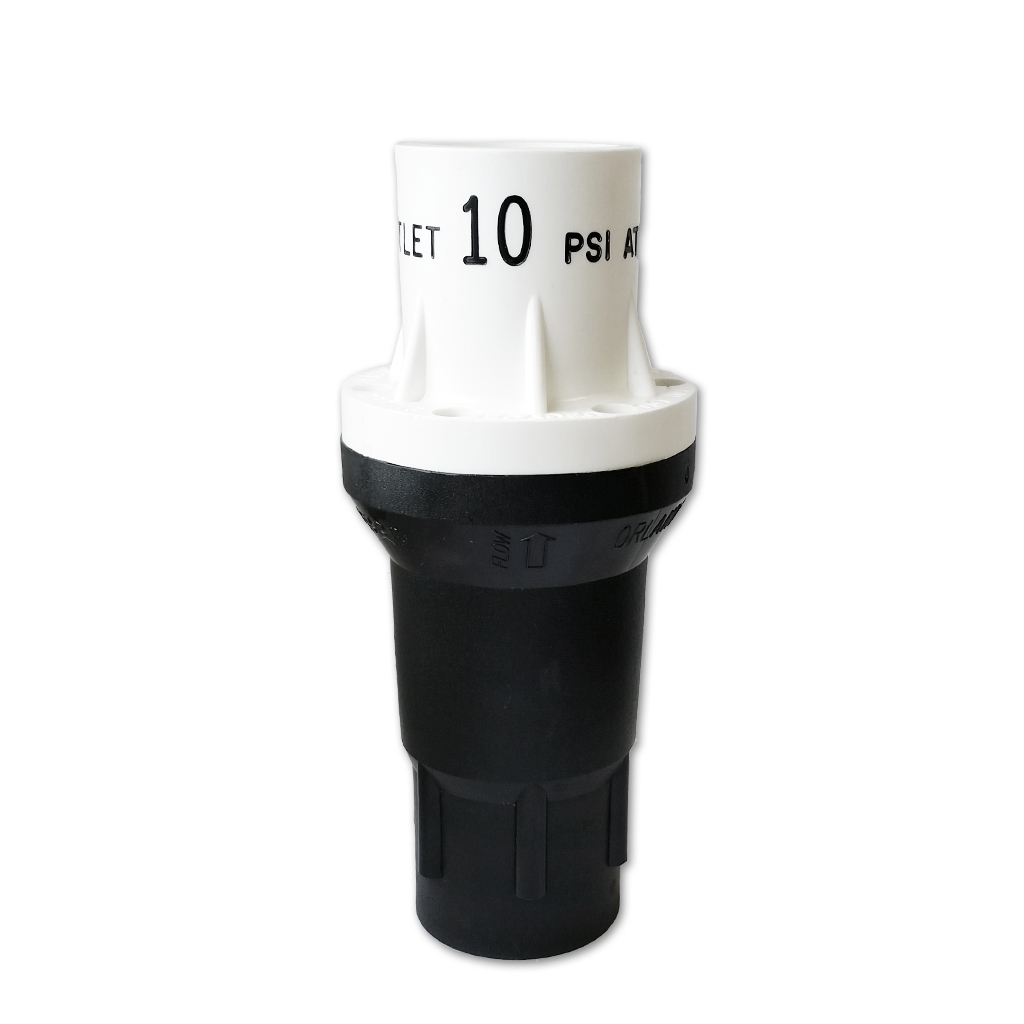

​​​1" 10PSI 4-16gpm (FPT) pressure regulator

150-140-061900

https://ghlinc.odoo.com/web/image/product.template/3698/image_1920?unique=1070b30

23.90 $ CAD 23.900000000000002 CAD 23.90 $ CAD

23.90 $ CAD

    This combination does not exist.


    Availability: in stock
    In case of backorder:: Usually kept in stock, will be available soon



     Clearance product



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PMR-MF-10
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Preset Operating Pressure 10 PSI (0.69 bar)
    Maximum Inlet Pressure 90 PSI (6.20 bar)
    Flow Range "to operate properly" 4 to 16 gpm (909 - 3634 L/h)
    Material All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.



     Clearance product



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PMR-MF-10
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Preset Operating Pressure 10 PSI (0.69 bar)
    Maximum Inlet Pressure 90 PSI (6.20 bar)
    Flow Range "to operate properly" 4 to 16 gpm (909 - 3634 L/h)
    Material All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.

    Clearance: condition New
    Guarantee No guarantee
    Inventory stocked
    Cause of liquidation Discontinued model: when all units of this product will be sold, this item will no longer be available.
    Outer tube diameter (O.D.) 1 "
    Preset Pressure 6 PSI
    Flow 4 - 16 gpm
    Connection type Female pipe thread (FPT)
    Connection type FPT x FPT
