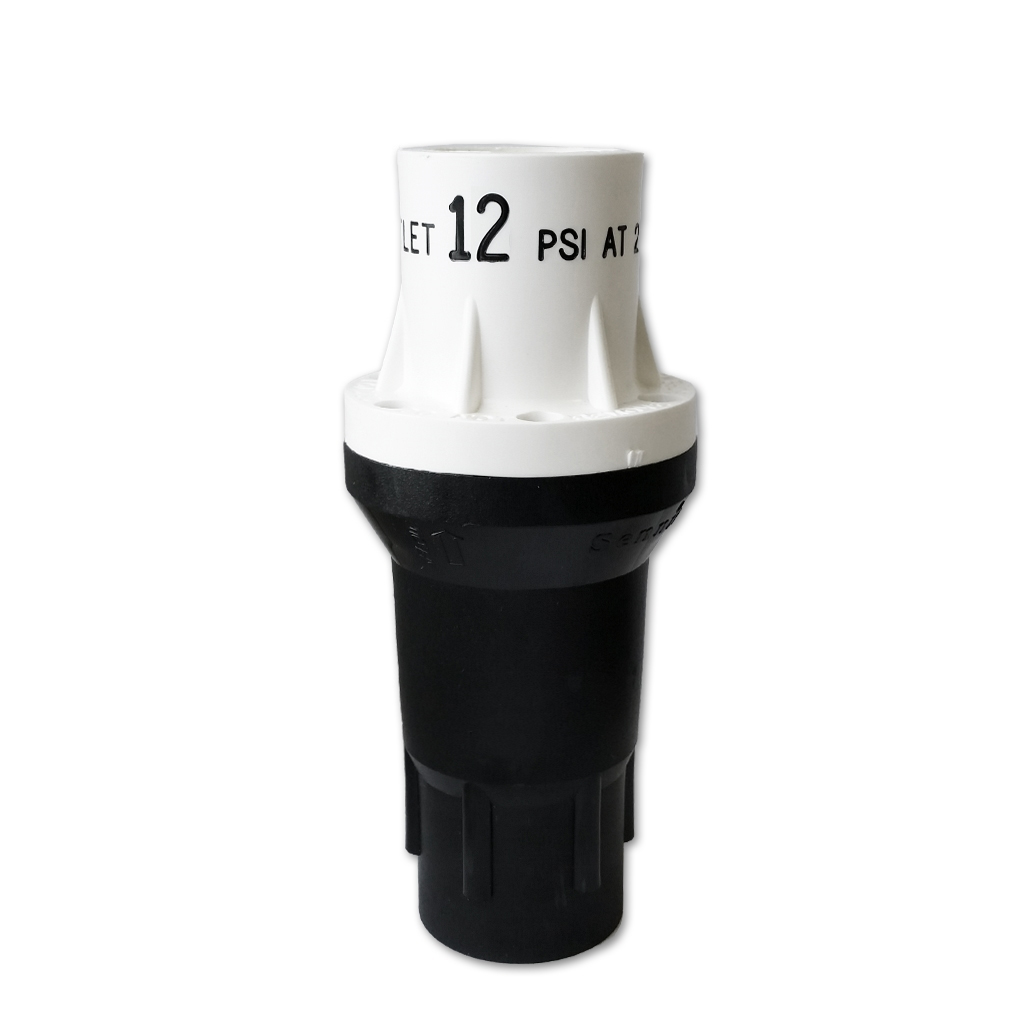

1" 12PSI 2-20gpm (FPT) pressure regulator

150-140-062000

Call For Price https://boutiquepro.ghlinc.com/web/image/product.template/3699/image_1920?unique=6134a9a

    This combination does not exist.


    Availability: in stock
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Usually kept in stock, will be available soon

    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.




    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model
    PMR-MF-12
    Inlet x Outlet size
    1'' FPT x 1'' FPT
    Preset Operating Pressure
    12 PSI (0.83 bar)
    Maximum Inlet Pressure
    90 PSI (6.20 bar)
    Flow Range "to operate properly"
    2 to 20 gpm (454 – 4542 L/h)
    Material
    All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.

    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.




    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model
    PMR-MF-12
    Inlet x Outlet size
    1'' FPT x 1'' FPT
    Preset Operating Pressure
    12 PSI (0.83 bar)
    Maximum Inlet Pressure
    90 PSI (6.20 bar)
    Flow Range "to operate properly"
    2 to 20 gpm (454 – 4542 L/h)
    Material
    All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.

    Inventory stocked
    Outer tube diameter (O.D.) 1 "
    Flow 2 - 20 gpm
    Preset Pressure 12 PSI
    Connection type Female pipe thread (FPT)
    Connection type FPT x FPT
