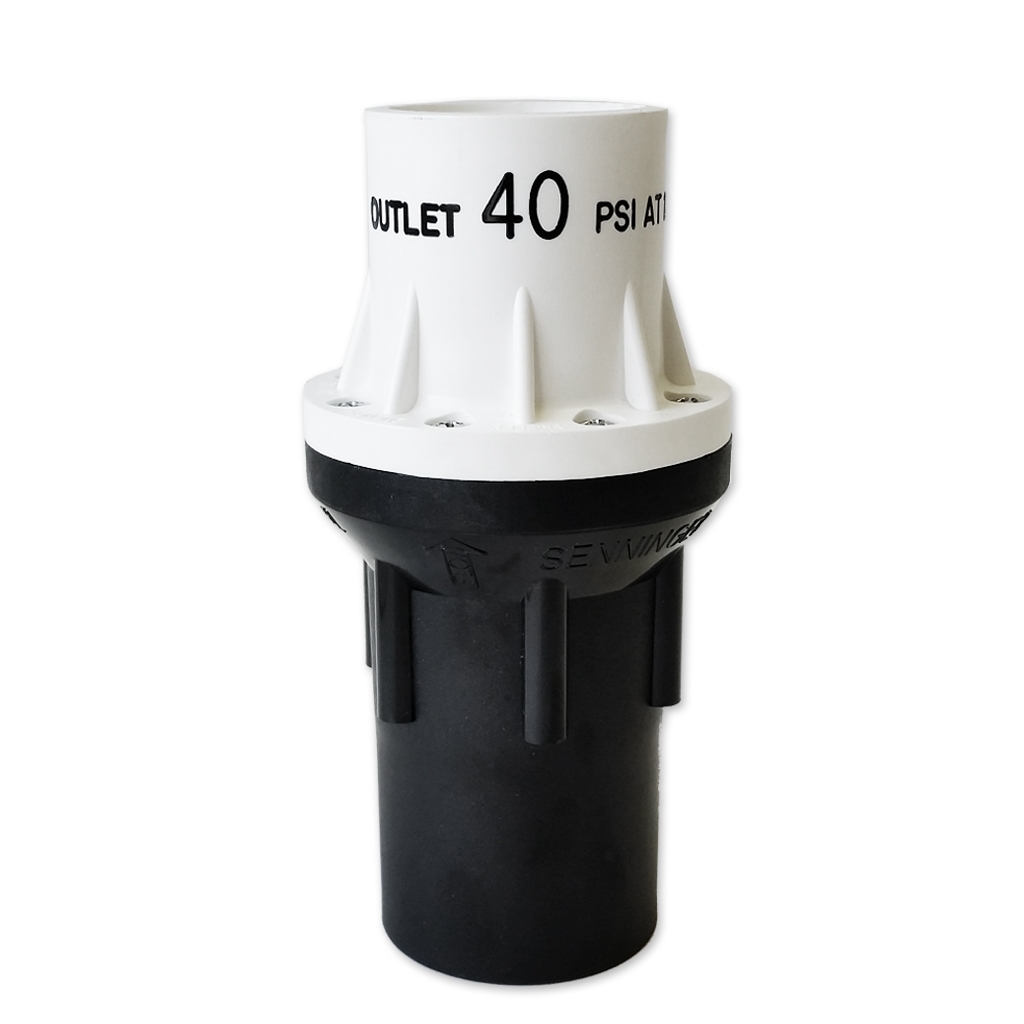

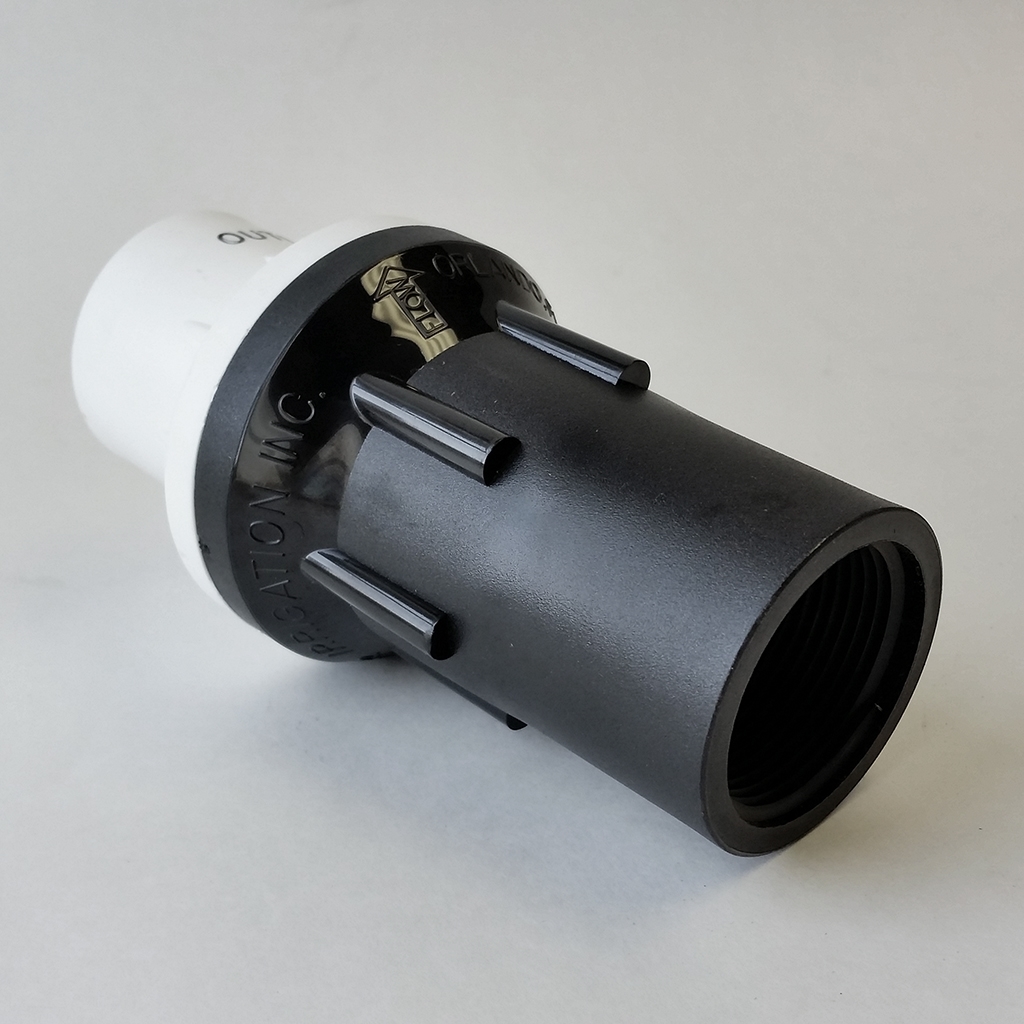

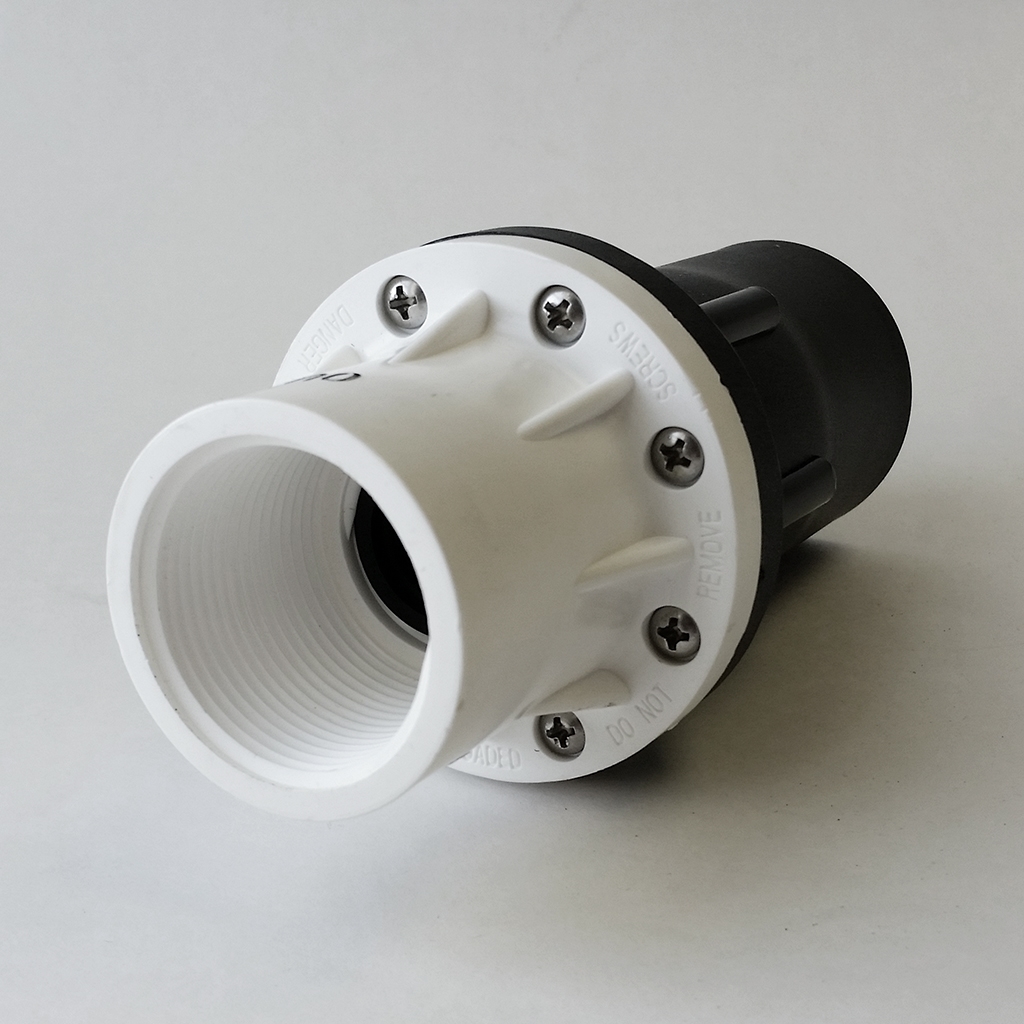

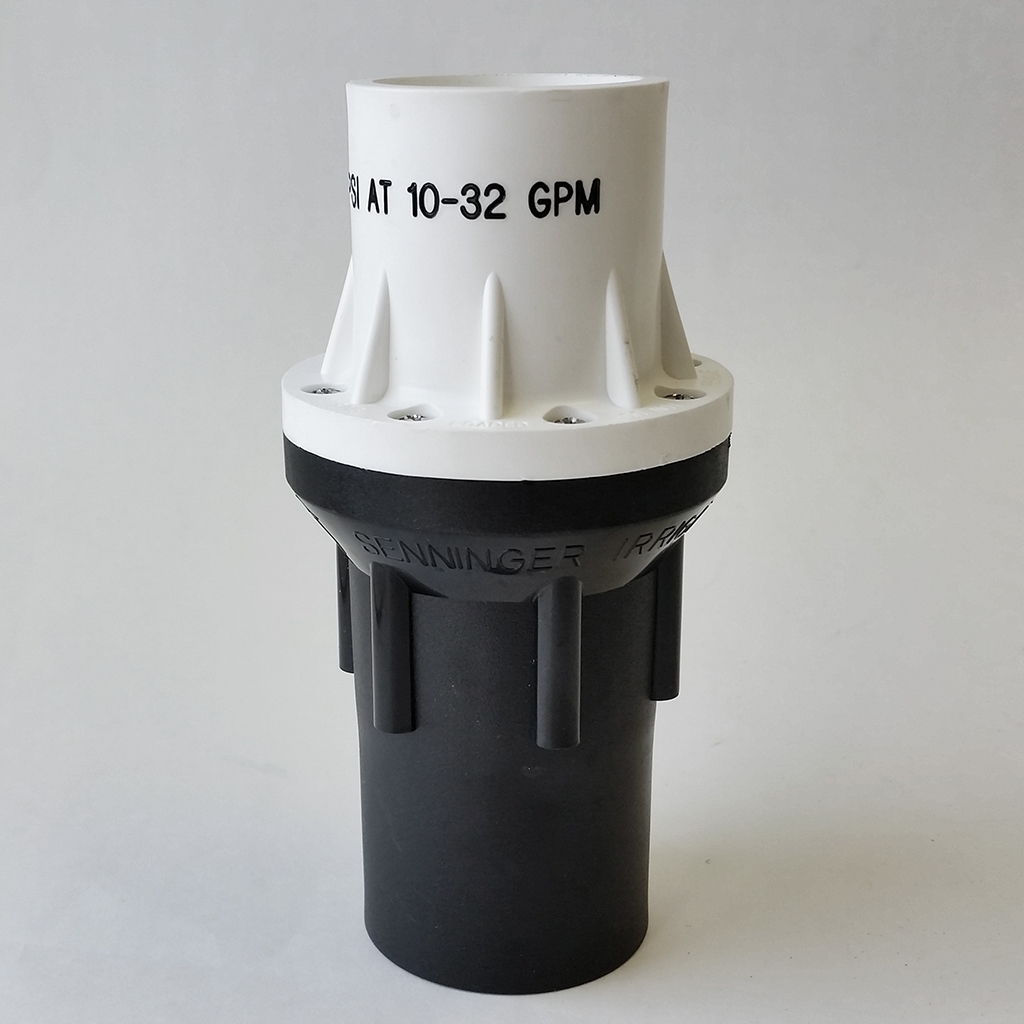

1.25" 40PSI 10-32gpm pressure regulator

150-140-063000

https://boutiquepro.ghlinc.com/web/image/product.template/3709/image_1920?unique=a78be51

40.50 $ CAD 40.5 CAD 40.50 $ CAD

40.50 $ CAD

    This combination does not exist.


    Availability: in stock
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Usually kept in stock, will be available soon



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.

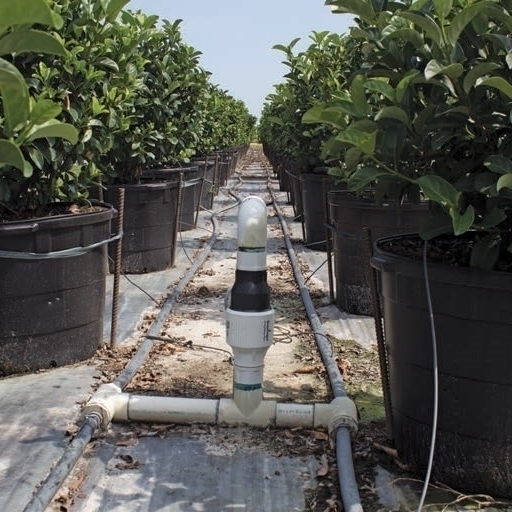

    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PR40 HF
    Inlet x Outlet size 1 1/4'' FPT x 1 1/4'' FPT
    Preset Operating Pressure 40 PSI (2,76 bar)
    Maximum Inlet Pressure 120 PSI (8,27 bar)
    Flow Range "to operate properly" 10 to 32 gpm (2271 - 7268 L/h)
    Material All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PR40 HF
    Inlet x Outlet size 1 1/4'' FPT x 1 1/4'' FPT
    Preset Operating Pressure 40 PSI (2,76 bar)
    Maximum Inlet Pressure 120 PSI (8,27 bar)
    Flow Range "to operate properly" 10 to 32 gpm (2271 - 7268 L/h)
    Material All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.

    Inventory stocked
    Outer tube diameter (O.D.) 1 1/4 "
    Flow 10 - 32 gpm
    Connection type Female pipe thread (FPT)
    Preset Pressure 40 PSI
    Connection type FPT x FPT
