Electrical valve 24Vac 1" FPT black (right) 100HV Rain Bird
150-150-011390
Availability:
in stock
Shipping time if backordered::
jusqu'à 2 semaines
In case of backorder::
Only replenished IF YOU ORDER IT

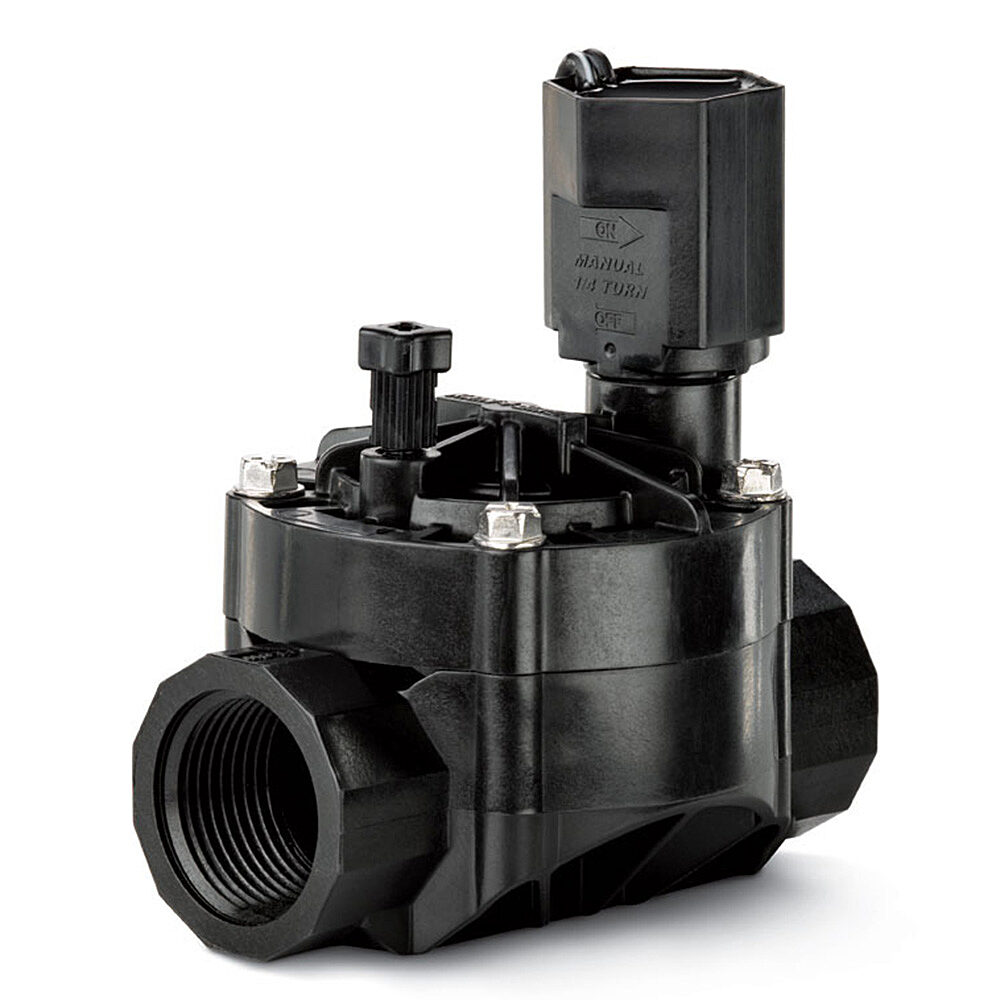

Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 100-HV (HV serie) |
| Configuration | Straight configuration (globe) |
| Inlet x Outlet size | 1'' FPT x 1'' FPT |
| Flow | 0.2 to 30 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.290 A Holding current: 0.091 A Coil resistance: 70 to 85 Ohms |
| Size | 5.68" x 3.1" x 4.5" (14.4 x 7.9 x 11.43 cm) |
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 100-HV (HV serie) |
| Configuration | Straight configuration (globe) |
| Inlet x Outlet size | 1'' FPT x 1'' FPT |
| Flow | 0.2 to 30 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.290 A Holding current: 0.091 A Coil resistance: 70 to 85 Ohms |
| Size | 5.68" x 3.1" x 4.5" (14.4 x 7.9 x 11.43 cm) |
| Outer tube diameter (O.D.) | 1 " |
| Order-driven inventory | |
| Connection type | Female pipe thread (FPT) |
| Connection type | FPT x FPT |
