Electrical valve 24Vac 1.5" FPT black (right and angle) Rain Bird

150-150-081800

https://boutiquepro.ghlinc.com/web/image/product.template/3827/image_1920?unique=ea1fd41

167.35 $ CAD 167.35 CAD 167.35 $ CAD

167.35 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Usually kept in stock, will be available soon

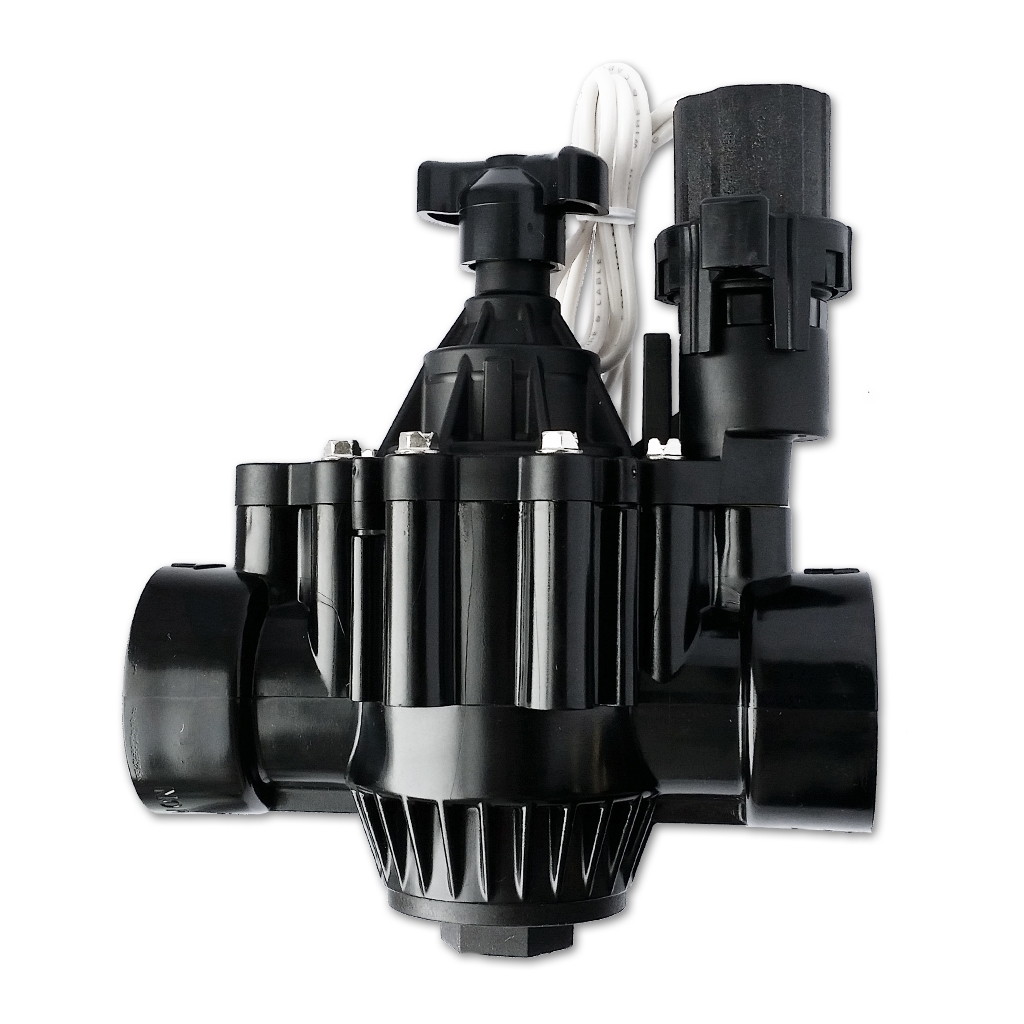

    Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.



    Model 150-PGA (PGA serie)
    Configuration Globe and angle configuration for flexibility in design and installation (A special plug (included) allows to change the configuration if necessary)
    Inlet x Outlet size 1.5'' FPT x 1.5'' FPT
    Flow 2.2 to 150 gpm
    Pressure 15 to 150 PSI (1.0 to 10.4 bar)
    Maximum water temperature 43°C (110°F)
    Electrical specifications

    24 VAC 50/60 Hz (cycles per second) solenoid

    Inrush current: 0.41A (9.9VA)

    Holding current: 0.14A (3.43VA)

    Coil resistance: 30-39 Ohms

    Size 8" x 6 3/4" x 3 1/2" (20.3 x 17.2 x 8.9 cm)



    Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.



    Model 150-PGA (PGA serie)
    Configuration Globe and angle configuration for flexibility in design and installation (A special plug (included) allows to change the configuration if necessary)
    Inlet x Outlet size 1.5'' FPT x 1.5'' FPT
    Flow 2.2 to 150 gpm
    Pressure 15 to 150 PSI (1.0 to 10.4 bar)
    Maximum water temperature 43°C (110°F)
    Electrical specifications

    24 VAC 50/60 Hz (cycles per second) solenoid

    Inrush current: 0.41A (9.9VA)

    Holding current: 0.14A (3.43VA)

    Coil resistance: 30-39 Ohms

    Size 8" x 6 3/4" x 3 1/2" (20.3 x 17.2 x 8.9 cm)

    Inventory stocked
    Outer tube diameter (O.D.) 1 1/2 "
    Connection type Female pipe thread (FPT)
    Connection type FPT x FPT
