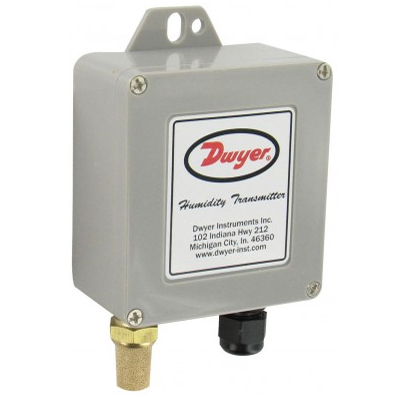

Dwyer WHT-333 water resistant humidity and temperature sensor (0 to 5 VDC output)

160-110-092100

https://ghlinc.odoo.com/web/image/product.template/8867/image_1920?unique=a94b42f

223.93 $ CAD 223.93 CAD 223.93 $ CAD

223.93 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Usually kept in stock, will be available soon

    The WHT Humidity/Temperature transmitter is available with 4 to 20 mA or 0 to 10 VDC output signals for both temperature and humidity. This transmitter is ideal for measuring air temperature and humidity levels.

    Relative humidity range : 0 to 100% RH.


    Temperature range
    -40 to 140°F (-40 to 60°C)
    Sensor Accuracy, RH
    ±2% 20 to 80% RH,
    ±3% @ 10 to 20%,
    80 to 90% RH
    Accuracy
    4 to 20 mA Output: ±0.9°F @ 72°F (±0.3°C @ 25°C);
    Passive Output: ±0.36°F @ 77°F (±0.2°C @ 25°C)
    Hysteresis, RH
    ±1%
    Repeatability, RH
    ±0.1% typical
    Power Requirements
    4-20 mA loop powered models: 10-35 VDC;
    0-10 V output models: 15-35 VDC or 15-29 VAC;
    0-5 V output models: 10-35 VDC or 10-29 VAC
    Output Signal
    4-20 mA loop powered models: 4-20 mA;
    0-10 V output models: 0-10 V @ 5 mA max;
    0-5 V output models: 0-5 V @ 5 mA max
    Response Time
    15 s
    RH Sensor
    Capacitance polymer
    Temperature Sensor
    4 to 20 mA output: solid state band gap;
    Passive output: 10K @ 25°C thermistor (Dwyer curve A)
    EnclosureABS,  Designed to meet NEMA 3S (IP54).




    Approvals :

    CE Approval
    RoHS Letter of Compliance


    The WHT Humidity/Temperature transmitter is available with 4 to 20 mA or 0 to 10 VDC output signals for both temperature and humidity. This transmitter is ideal for measuring air temperature and humidity levels.

    Relative humidity range : 0 to 100% RH.


    Temperature range
    -40 to 140°F (-40 to 60°C)
    Sensor Accuracy, RH
    ±2% 20 to 80% RH,
    ±3% @ 10 to 20%,
    80 to 90% RH
    Accuracy
    4 to 20 mA Output: ±0.9°F @ 72°F (±0.3°C @ 25°C);
    Passive Output: ±0.36°F @ 77°F (±0.2°C @ 25°C)
    Hysteresis, RH
    ±1%
    Repeatability, RH
    ±0.1% typical
    Power Requirements
    4-20 mA loop powered models: 10-35 VDC;
    0-10 V output models: 15-35 VDC or 15-29 VAC;
    0-5 V output models: 10-35 VDC or 10-29 VAC
    Output Signal
    4-20 mA loop powered models: 4-20 mA;
    0-10 V output models: 0-10 V @ 5 mA max;
    0-5 V output models: 0-5 V @ 5 mA max
    Response Time
    15 s
    RH Sensor
    Capacitance polymer
    Temperature Sensor
    4 to 20 mA output: solid state band gap;
    Passive output: 10K @ 25°C thermistor (Dwyer curve A)
    EnclosureABS,  Designed to meet NEMA 3S (IP54).




    Approvals :

    CE Approval
    RoHS Letter of Compliance

    Inventory stocked
