Motor inverter 115-400 Volts 1.6-2.5A 50/60hz IP54 Ridder RMC400
160-120-061210
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
2-6 semaines
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
160-120-061210

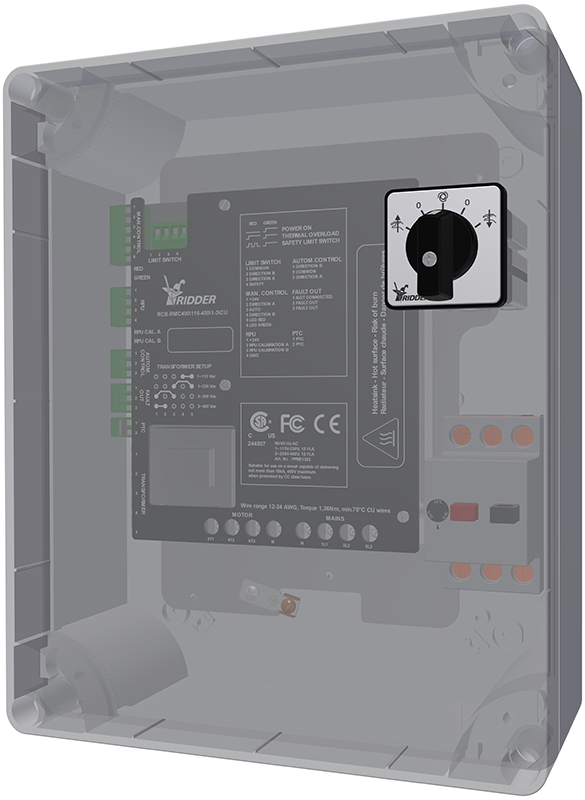

RMC400 Inverter (starter) configured to Ridder Motor for greenhouse roof or vent system.
The RMC400 can be used throughout the world with 3-phase supply voltages of 208 V to 600 V and 1-phase supply voltages of 120 V to 230 V for 50 Hz and 60 Hz mains frequencies.
The RMC400 is prepared for the use of a Ridder PositioningUnit RPU (RW motor-gearbox). The RMC400 has a 24 V DC power connection and reference position outputs (end positions).
External activation of the RMC400 is possible with a 24 V AC/DC control signal or (optional) external manual controls. The RMC400 monitors the control input. The motor gearbox is not activated if there is simultaneous activation in two directions of rotation.
| Inventory stocked |
Submit a Ticket
RMC400 Inverter (starter) configured to Ridder Motor for greenhouse roof or vent system.
The RMC400 can be used throughout the world with 3-phase supply voltages of 208 V to 600 V and 1-phase supply voltages of 120 V to 230 V for 50 Hz and 60 Hz mains frequencies.
The RMC400 is prepared for the use of a Ridder PositioningUnit RPU (RW motor-gearbox). The RMC400 has a 24 V DC power connection and reference position outputs (end positions).
External activation of the RMC400 is possible with a 24 V AC/DC control signal or (optional) external manual controls. The RMC400 monitors the control input. The motor gearbox is not activated if there is simultaneous activation in two directions of rotation.
