20" EZ-Breeze Basket HAF fan 1/10hp 115V 1.42 amps with mounting bracket

160-130-021000

https://boutiquepro.ghlinc.com/web/image/product.template/4319/image_1920?unique=af54207

263.90 $ CAD 263.9 CAD 263.90 $ CAD

263.90 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Usually kept in stock, will be available soon

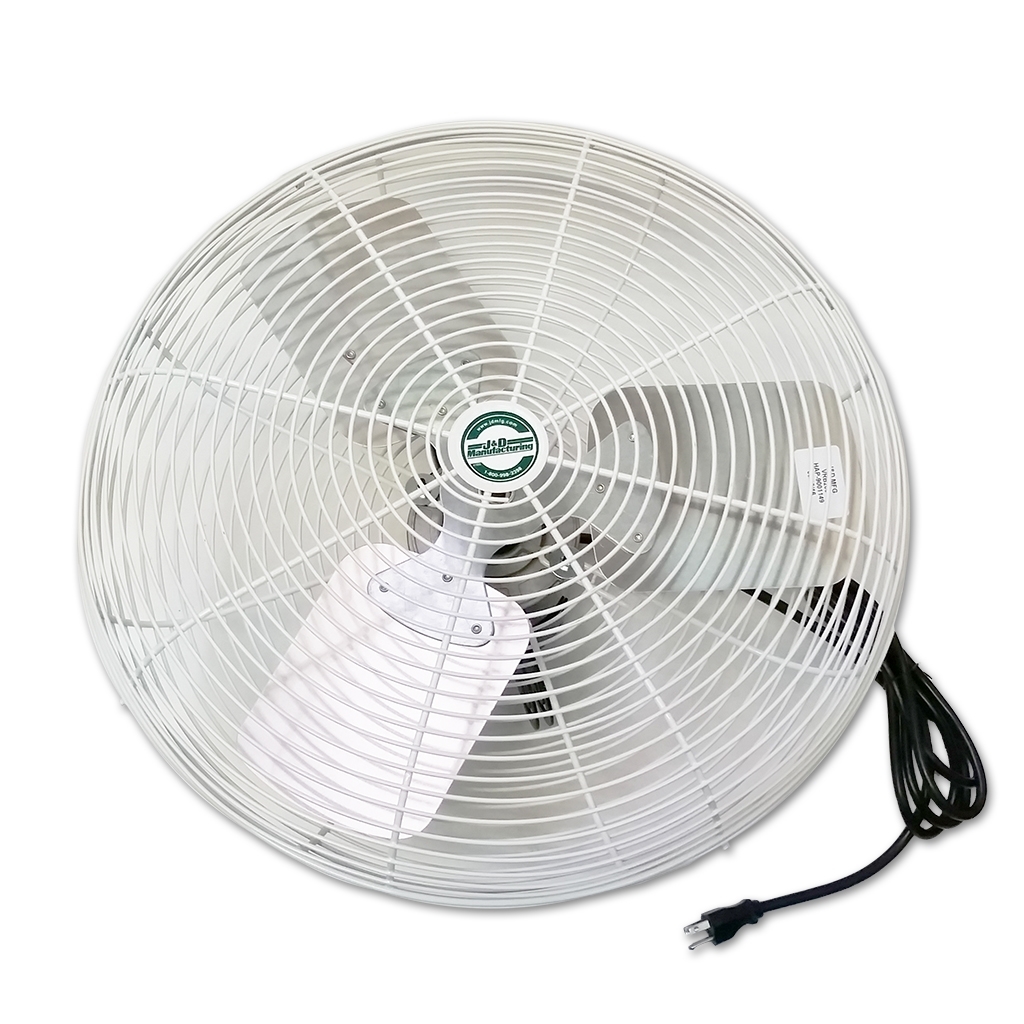

    EZ-Breeze Basket Fan HAF "Horizontal air flow" fan for air circulation in greenhouse, available in 20" diameter, with energy saving (1/10 hp) motor running on 115 volts (1.42 amp ). The installation and operating costs are minimal. The fan is sold completely assembled.




    Included

    Fan, 10' power cord with 3-wire plug for 115 volts, galvanized steel mounting bracket, U-bolts and nuts and instruction manual.

    ​Fan diameter

    20"

    Motor

    ***  motor model changed in 2021 ***
    1/10 HP
    115/230 Volts, comes pre-wired for 115 Volts (electrician may rewire for 230 Volts)
    1.42/0.77 ampères (formely, 1 amp)
    60 Hz
    1 phase
    Varible speed (requires the addition of a speed control module sold separately)
    600 FPM (formely 575 FPM)
    Thurst (lbf): 0.60 ( formely  0.80)
    Thurst Eff. Ratio: 6.0 ( formely  7.9)
    0.10 kW ( formely  0.10)
    1721 RPM ( formely  1715)

    Speed​

    1410 CFM ( formely 1680)
    14.9 CFM/Watt ( formely 16.5)

    Warranty​

    2-year warranty on motor

    Material

    Aluminum propeller, protective grille coated with a white powder paint anti-corrosion and meeting OSHA standards 1910.212 (a) (5).

    The addition of HAF fans in greenhouses is becoming more and more popular. Research shows that this circulation system may be superior to other types of air movement.

    • The uniformity of temperature;

    • Reduces heat loss;

    • Disperses moisture;

    • Improves the distribution of CO2 near plants;

    • In short, it makes the greenhouse environment more uniform.



    Ask one of our representatives to guide you in choosing the most suitable installation for your needs.
