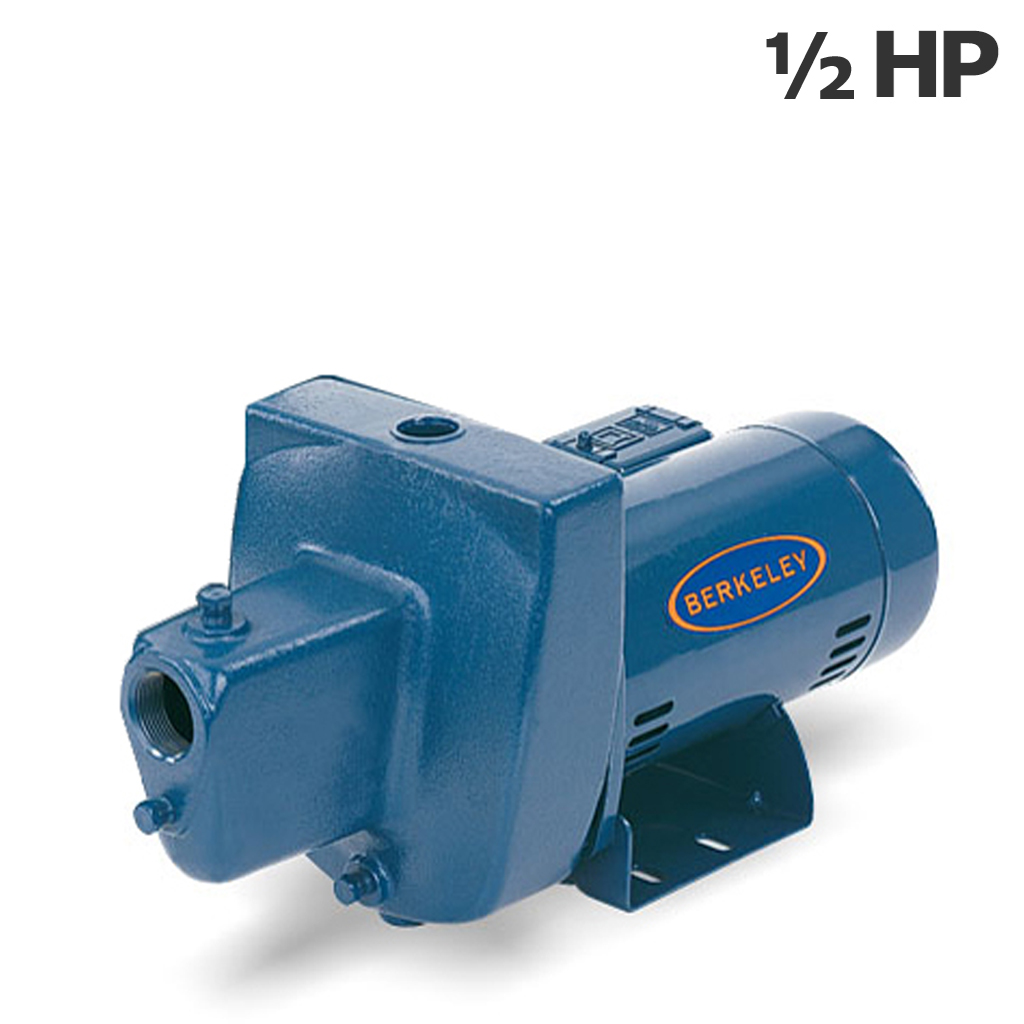

Pentair Berkeley pump ProJet 5SN, 1/2HP 115/230V, for continuous service
160-140-012400
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-140-012400
Cast iron, self-priming shallow well jet pumps
ProJet SN Series Pumps provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water.
- Quality Close-Grained Cast Iron Body Plus Drain Port Provided for Easy Winterizing
- Built-In Lexan™ Jet Nozzle and Venturi for Maximum Resistance to Corrosion and Abrasion Clean Out Plug Provided for Ease of Service
- NORYL Impeller is Precision Molded for Perfect Balance ... Ultra-Smooth for Highest Performance and Efficiency
- Precision Molded Diffuser Means Pump Primes Faster, Handles More Air with Multi-Port, Precision Molded, Reinforced Polypropylene Diffuser
- Carbon-Ceramic Mechanical Shaft Seal with Stainless Steel Parts
- Superior Insulation Materials Protect Motor Windings Against Excessive Moisture and Contamination
- Balanced Rotor Is Die Cast Under High Pressures and Dynamically Balanced for Uniform Performance and Greater Efficiency
- Heavy Duty Ball Bearings are Shielded and Permanently Lubricated to Provide Extended Life and Smooth Quiet Operation
- Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One-Piece Threaded Shaft for Positive Impeller Drive and Alignment
- Dustproof Cover Protects All Electrical Components from Dirt, Dust, and Insects; Ventilating Air Cannot Contaminate Vital Switching Components
- Professional Quality Pressure Switch Has Adjustable Cut-In with Fixed Differential of 20 PSI
|
Model |
5SN ½HP |
|
Motor |
½HP 115-230V |
| Maximum capacity | |
|
Maximum vertical elevation |
|
|
Suction capacity |
|
|
Maximum pressure |
50 PSI |
| Connection diameter |
Suction: 1 1/4" Discharge: 1" |
| Type of use |
|
| Power cable |
|
| Poids |
| Voltage | 115 V |
| Voltage | 230 V |
| Power | 1/2 HP |
| Usage | Continuous use |
| Discharge diameter | 1" |
| Suction diameter | 1 1/4" |
| Order-driven inventory | |
| Submersible | Upcoming info |
| Voltage | 115 V, 230 V |
| Water source | Upcoming info |
| Typical use | Upcoming info |
| Self-priming | Upcoming info |
