Pentair Berkeley pump ProJet 5SN, 1/2HP 115/230V, for continuous service

160-140-012400

Call For Price https://ghlinc.odoo.com/web/image/product.template/8771/image_1920?unique=85c36a8

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT

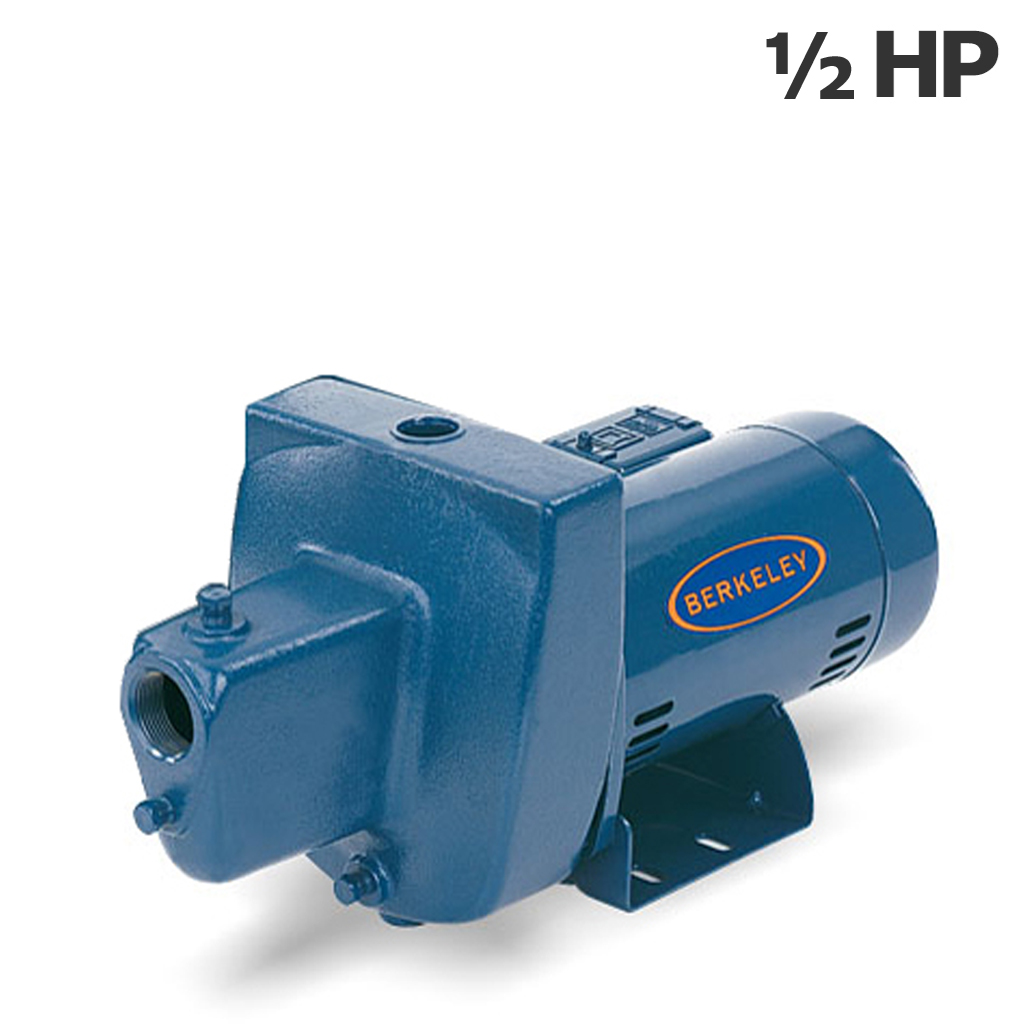

    Cast iron, self-priming shallow well jet pumps

    ProJet SN Series Pumps provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water.

    • Quality Close-Grained Cast Iron Body Plus Drain Port Provided for Easy Winterizing
    • Built-In Lexan™ Jet Nozzle and Venturi for Maximum Resistance to Corrosion and Abrasion Clean Out Plug Provided for Ease of Service
    • NORYL Impeller is Precision Molded for Perfect Balance ... Ultra-Smooth for Highest Performance and Efficiency
    • Precision Molded Diffuser Means Pump Primes Faster, Handles More Air with Multi-Port, Precision Molded, Reinforced Polypropylene Diffuser
    • Carbon-Ceramic Mechanical Shaft Seal with Stainless Steel Parts
    • Superior Insulation Materials Protect Motor Windings Against Excessive Moisture and Contamination
    • Balanced Rotor Is Die Cast Under High Pressures and Dynamically Balanced for Uniform Performance and Greater Efficiency
    • Heavy Duty Ball Bearings are Shielded and Permanently Lubricated to Provide Extended Life and Smooth Quiet Operation
    • Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One-Piece Threaded Shaft for Positive Impeller Drive and Alignment
    • Dustproof Cover Protects All Electrical Components from Dirt, Dust, and Insects; Ventilating Air Cannot Contaminate Vital Switching Components
    • Professional Quality Pressure Switch Has Adjustable Cut-In with Fixed Differential of 20 PSI



    Model

    5SN ½HP

    Motor

    ½HP 115-230V

    Maximum capacity

    Maximum vertical elevation



    Suction capacity



    Maximum pressure

    50 PSI

    Connection diameter

    Suction: 1 1/4"

    Discharge: 1"

    Type of use



    Power cable



    Poids



    Cast iron, self-priming shallow well jet pumps

    ProJet SN Series Pumps provide excellent performance with good pressure for wells to 25' deep. Self-priming after the priming chamber has been filled with water.

    • Quality Close-Grained Cast Iron Body Plus Drain Port Provided for Easy Winterizing
    • Built-In Lexan™ Jet Nozzle and Venturi for Maximum Resistance to Corrosion and Abrasion Clean Out Plug Provided for Ease of Service
    • NORYL Impeller is Precision Molded for Perfect Balance ... Ultra-Smooth for Highest Performance and Efficiency
    • Precision Molded Diffuser Means Pump Primes Faster, Handles More Air with Multi-Port, Precision Molded, Reinforced Polypropylene Diffuser
    • Carbon-Ceramic Mechanical Shaft Seal with Stainless Steel Parts
    • Superior Insulation Materials Protect Motor Windings Against Excessive Moisture and Contamination
    • Balanced Rotor Is Die Cast Under High Pressures and Dynamically Balanced for Uniform Performance and Greater Efficiency
    • Heavy Duty Ball Bearings are Shielded and Permanently Lubricated to Provide Extended Life and Smooth Quiet Operation
    • Stainless Steel Pump and Motor Shaft for Maximum Corrosion Resistance. One-Piece Threaded Shaft for Positive Impeller Drive and Alignment
    • Dustproof Cover Protects All Electrical Components from Dirt, Dust, and Insects; Ventilating Air Cannot Contaminate Vital Switching Components
    • Professional Quality Pressure Switch Has Adjustable Cut-In with Fixed Differential of 20 PSI



    Model

    5SN ½HP

    Motor

    ½HP 115-230V

    Maximum capacity

    Maximum vertical elevation



    Suction capacity



    Maximum pressure

    50 PSI

    Connection diameter

    Suction: 1 1/4"

    Discharge: 1"

    Type of use



    Power cable



    Poids

    Voltage 115 V
    Voltage 230 V
    Power 1/2 HP
    Usage Continuous use
    Discharge diameter 1"
    Suction diameter 1 1/4"
    Order-driven inventory
    Submersible Upcoming info
    Voltage 115 V, 230 V
    Water source Upcoming info
    Typical use Upcoming info
    Self-priming Upcoming info
