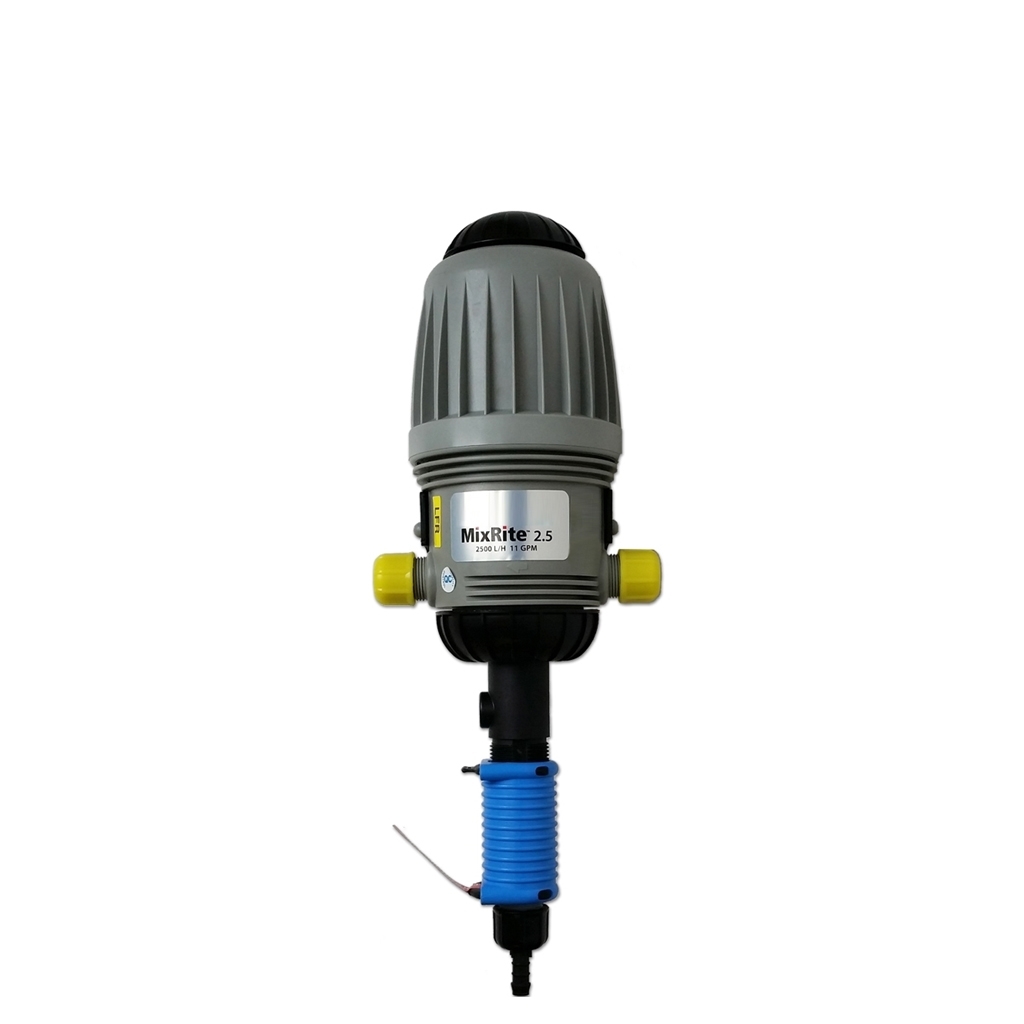

MixRite 2.5 3/4" 0.3-2% 0.088-11gpm proportional injector
160-140-031400
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
up to 3 weeks
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
160-140-031400
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% CW - Air release |
| Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone
(Seal Kit 2%Dual 36000000204)
and instruction manual. |
| Flow range "to operate properly" |
0.088 - 11 gpm (20-2500 L/h) |
| Dosage rate |
0.3 - 2% (1:333 - 1:50) |
| Working pressure |
2.9 - 120 PSI (0.2-8 bar) |
| Air release system |
"Air release" (Allows a release of the blocked air in the water lines) |
| Inlet x Outlet size |
3/4" MPT x 3/4" MPT |
| Material |
AFLAS seals SST, Hastelloy |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
| Water flow | 0.088 - 11 gpm (20-2500 L/h) |
| Dosage rate | 0.3 - 2% (1:333 - 1:50) |
| Working pressure | 2.9 - 120 PSI (0.2-8 bar) |
| Inventory stocked | |
| Outer tube diameter (O.D.) | 3/4 " |
| Air release system | Air release |
| Dosing flow | 0.021 - 50 L/h (0.006-13.22 gph) |
| Connection type | Male pipe thread (MPT) |
| Connection type | MPT x MPT |
Submit a Ticket
MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.
- MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
- Easy installation, operation and maintenance;
- Adjusting the ratio of injection is easy;
- The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
- Can be installed permanently or as a mobile unit;
- The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
free access to all parts.
| Model | MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% CW - Air release |
| Included | Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone
(Seal Kit 2%Dual 36000000204)
and instruction manual. |
| Flow range "to operate properly" |
0.088 - 11 gpm (20-2500 L/h) |
| Dosage rate |
0.3 - 2% (1:333 - 1:50) |
| Working pressure |
2.9 - 120 PSI (0.2-8 bar) |
| Air release system |
"Air release" (Allows a release of the blocked air in the water lines) |
| Inlet x Outlet size |
3/4" MPT x 3/4" MPT |
| Material |
AFLAS seals SST, Hastelloy |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
