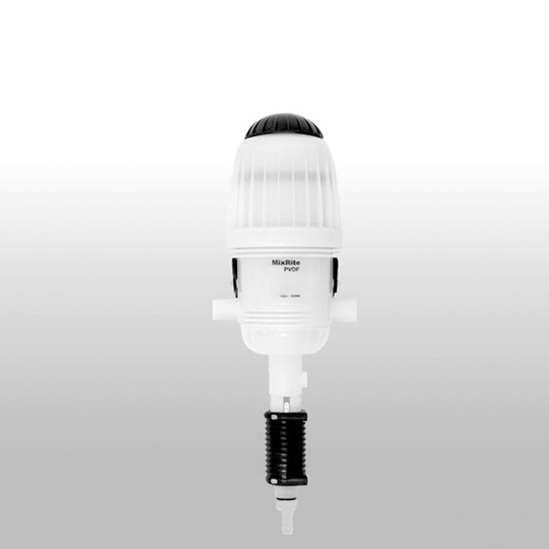

MixRite 2.5 PVDF 3/4" 0.3-2% 0.088-11gpm acid proportional injector

160-140-031500

Call For Price https://boutiquepro.ghlinc.com/web/image/product.template/4350/image_1920?unique=145afa6

    This combination does not exist.



    Availability: backordered
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    PVDF model for the injection of phosphoric acid, nitric acid, sulfuric acid and other very aggressive chemicals. This MixRite 2.5 Injector has a white PVDF body designed to resist chemical attack by acid.



    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% PVDF - Air release
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit) and instruction manual.
    Flow range "to operate properly" 0.088 - 11 gpm (20-2500 L/h)
    Dosage rate 0.3 - 2% (1:333 - 1:50)
    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Air release system Air release (Allows an automatic release of the blocked air in the water line)
    Inlet x Outlet size 3/4" MPT x 3/4" MPT
    Material

    All upper seals made from Viton Extreme
    Check Valve seals made from Aflas
    All Hastelloy Springs and PVDF components

    Typical chemical application

    Sulfuric acid, nitric acid, phosphoric acid, chloric acid, hydrofluoric acid, etc.

    Fertilizers

    Etc.




    PVDF model for the injection of phosphoric acid, nitric acid, sulfuric acid and other very aggressive chemicals. This MixRite 2.5 Injector has a white PVDF body designed to resist chemical attack by acid.



    MixRite™ water-activated fertilizer injectors allows precise injection of soluble fertilizers, growth regulators or pesticides. They operate with very low pressure and are not affected by variations in flow or pressure.

    • MixRite™ Fertilizer & Chemical proportional water driven injector is powered by water flow;
    • Easy installation, operation and maintenance;
    • Adjusting the ratio of injection is easy;
    • The body of the injector is made of durable plastic with ultra-violet protection and is also resistant to many aggressive chemicals;
    • Can be installed permanently or as a mobile unit;
    • The Mix-Rite ™ is virtually maintenance free. If necessary the body of the unit unscrews into two parts to give
      free access to all parts.



    Model MixRite™ 2.5 (2.5 m3/h) - 0.3%-2% PVDF - Air release
    Included Dosing MixRite, suction tube coupling and washer, plastic wall mounting bracket, replacement seal kit with silicone (Seal Kit) and instruction manual.
    Flow range "to operate properly" 0.088 - 11 gpm (20-2500 L/h)
    Dosage rate 0.3 - 2% (1:333 - 1:50)
    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Air release system Air release (Allows an automatic release of the blocked air in the water line)
    Inlet x Outlet size 3/4" MPT x 3/4" MPT
    Material

    All upper seals made from Viton Extreme
    Check Valve seals made from Aflas
    All Hastelloy Springs and PVDF components

    Typical chemical application

    Sulfuric acid, nitric acid, phosphoric acid, chloric acid, hydrofluoric acid, etc.

    Fertilizers

    Etc.

    Working pressure 2.9 - 120 PSI (0.2-8 bar)
    Water flow 0.088 - 11 gpm (20-2500 L/h)
    Dosage rate 0.3 - 2% (1:333 - 1:50)
    Outer tube diameter (O.D.) 3/4 "
    Air release system Air release
    Order-driven inventory
    Dosing flow 0.021 - 50 L/h (0.006-13.22 gph)
    Connection type Male pipe thread (MPT)
    Connection type MPT x MPT
