Berg BENOMIC S-Line S350 hydraulic platform (2-scissors) 350x191cm max 250kg plat.190x43cm

Call For Price https://ghlinc.odoo.com/web/image/product.template/8526/image_1920?unique=edae500

Shipping cost from Europe to Quebec not included.

  • Largeur des rails

This combination does not exist.



Availability: backordered
Shipping time if backordered:: 2-4 semaines
In case of backorder:: Only replenished IF YOU ORDER IT

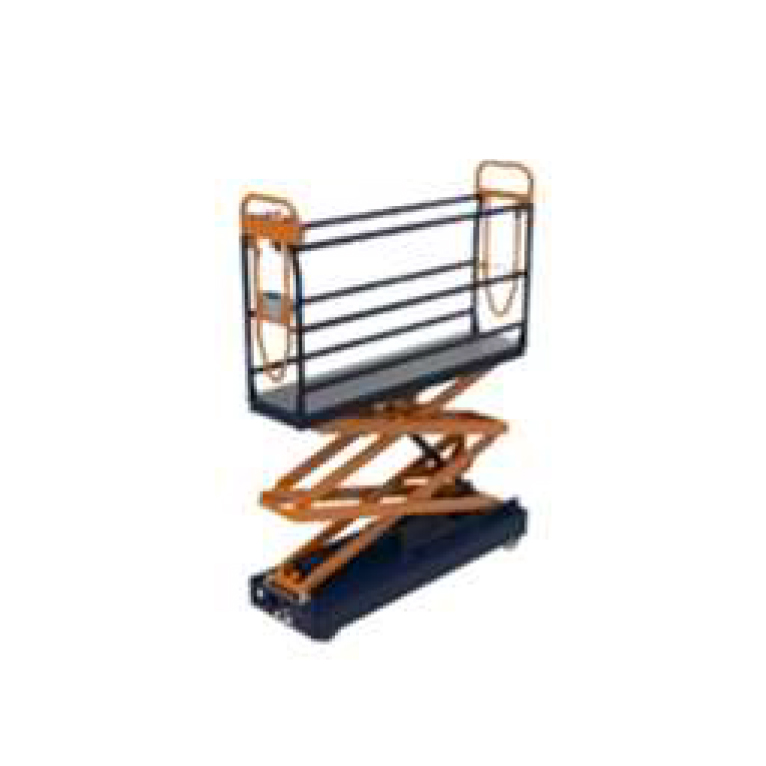

 Hydraulic platform with 2 scissors on electric trolley for rail in horticultural greenhouse.

  • TüV certified safety (German regulatory and standardization body)
  • Double access with self-closing doors for maximum security
  • Access to the control panel from both ends of the platform
  • Control panel with integrated USB port (for mobile phone or fan)
  • Adjustable speed from 0 to 60 meters / minute (and up to 110 meters / minute with the use of the turbo button)
  • Designed to be easy to maintain
  • Lateral movement with a simple button
  • Electronically adjustable driving control for acceleration and comfortable braking
  • Simple control and robust control panel
  • Scissors movement switch located on the chassis
  • Traction batteries, 24V / 159Ah
  • Battery charge level indicator
  • Solid welded steel structure
  • Very stable hydraulic scissors
  • Durable powder coating
  • Integrated level indicator
  • CE compliant
  • Scissors and non-hanging frames with smooth finishes and closed and rounded ends


Technical information and options:

Model

BENOMIC S-Line S350

Scissors

2 scissors

Wagon length

191 cm

Platform length

190 cm

Platform width

43 cm

Minimum heigth

53 cm

Maximum heigth

350 cm

Motor capacity

0.25 kW

Maximum load capacity
Wagon weight
250 kg
415 kg
Maximum speed
60 meters/minute (up to 110 meters/minute with turbo speed)
Battery
traction batterie, 24V/159Ah
Rail widths (center to center)

Standard : 55cm (51mm rail)

On request: 42cm to 80cm

Also included
  • 1 foot switch (pedal)
  • Hydraulic lifting wheels
  • Steel drive roller with plastic flanges
  • Battery charge level indicator
  • Level indicator (for tilt)
  • 2 safety guards
  • USB connection
Options on request
  • Built-in battery charger 115V-8V or 230V-11A
  • Non-integrated battery charger (mobile) 115V-8A or 230V-11A
  • Transport trolley for battery chargers (maximum 6 chargers)
  • Vulkollan drive roller with plastic flanged wheels
  • Connection 24V (max. 5 Amp)
  • Connection 12V + 24V with switch (max. 5 Amp.)
  • Tool box for Benomic S-Line
  • Mat "Ergomat"
  • Small fan running on USB socket
  • Storage trays 60x40cm (crate tray)
  • Storage trays 40x30cm (box tray)
  • Storage box 60x40x25cm (leaf bin)
  • Towing platform for 24V connection (including foot switch)
  • Etc.


Specifications

Largeur des rails c.t.c. 55cm, pipe 51mm or c.t.c. 42.5cm, pipe 51mm or c.t.c. 60cm, pipe 51mm or other

 Hydraulic platform with 2 scissors on electric trolley for rail in horticultural greenhouse.

  • TüV certified safety (German regulatory and standardization body)
  • Double access with self-closing doors for maximum security
  • Access to the control panel from both ends of the platform
  • Control panel with integrated USB port (for mobile phone or fan)
  • Adjustable speed from 0 to 60 meters / minute (and up to 110 meters / minute with the use of the turbo button)
  • Designed to be easy to maintain
  • Lateral movement with a simple button
  • Electronically adjustable driving control for acceleration and comfortable braking
  • Simple control and robust control panel
  • Scissors movement switch located on the chassis
  • Traction batteries, 24V / 159Ah
  • Battery charge level indicator
  • Solid welded steel structure
  • Very stable hydraulic scissors
  • Durable powder coating
  • Integrated level indicator
  • CE compliant
  • Scissors and non-hanging frames with smooth finishes and closed and rounded ends


Technical information and options:

Model

BENOMIC S-Line S350

Scissors

2 scissors

Wagon length

191 cm

Platform length

190 cm

Platform width

43 cm

Minimum heigth

53 cm

Maximum heigth

350 cm

Motor capacity

0.25 kW

Maximum load capacity
Wagon weight
250 kg
415 kg
Maximum speed
60 meters/minute (up to 110 meters/minute with turbo speed)
Battery
traction batterie, 24V/159Ah
Rail widths (center to center)

Standard : 55cm (51mm rail)

On request: 42cm to 80cm

Also included
  • 1 foot switch (pedal)
  • Hydraulic lifting wheels
  • Steel drive roller with plastic flanges
  • Battery charge level indicator
  • Level indicator (for tilt)
  • 2 safety guards
  • USB connection
Options on request
  • Built-in battery charger 115V-8V or 230V-11A
  • Non-integrated battery charger (mobile) 115V-8A or 230V-11A
  • Transport trolley for battery chargers (maximum 6 chargers)
  • Vulkollan drive roller with plastic flanged wheels
  • Connection 24V (max. 5 Amp)
  • Connection 12V + 24V with switch (max. 5 Amp.)
  • Tool box for Benomic S-Line
  • Mat "Ergomat"
  • Small fan running on USB socket
  • Storage trays 60x40cm (crate tray)
  • Storage trays 40x30cm (box tray)
  • Storage box 60x40x25cm (leaf bin)
  • Towing platform for 24V connection (including foot switch)
  • Etc.
