Berg BENOMIC S-Line S500 hydraulic platform (3-scissors) 500x191cm max 150kg plat.190x43cm (including 2 manual stabilizers)

Call For Price https://ghlinc.odoo.com/web/image/product.template/8535/image_1920?unique=fd1cdf6

Shipping cost from Europe to Quebec not included.

  • Largeur des rails

This combination does not exist.



Availability: backordered
Shipping time if backordered:: 2-4 semaines
In case of backorder:: Only replenished IF YOU ORDER IT

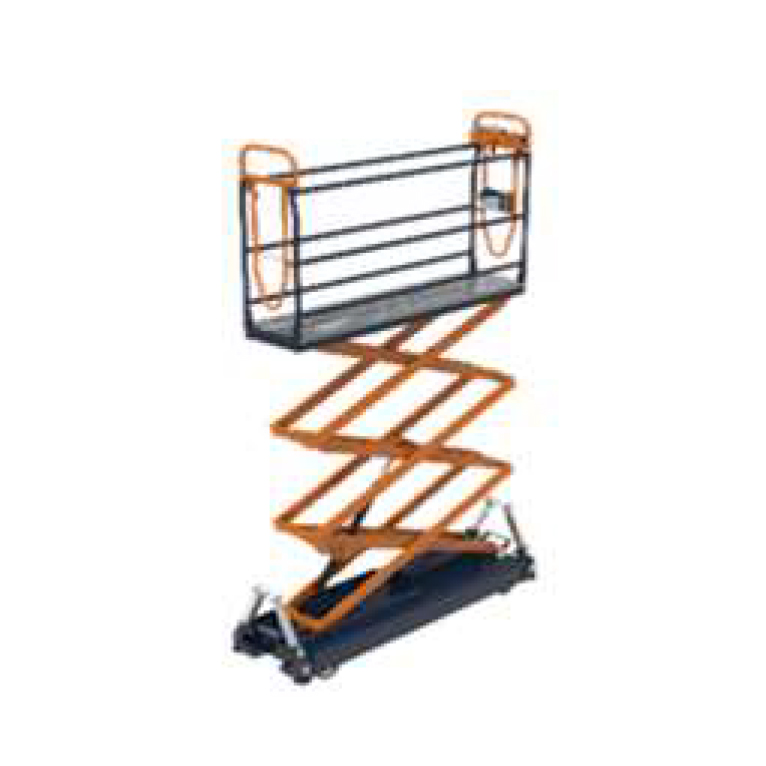

Hydraulic platform with 3 scissors on electric trolley for rail in horticultural greenhouse.

  • TüV certified safety (German regulatory and standardization body)
  • Double access with self-closing doors for maximum security
  • Access to the control panel from both ends of the platform
  • Control panel with integrated USB port (for mobile phone or fan)
  • Adjustable speed from 0 to 60 meters / minute (and up to 110 meters / minute with the use of the turbo button)
  • Designed to be easy to maintain
  • Lateral movement with a simple button
  • Electronically adjustable driving control for acceleration and comfortable braking
  • Simple control and robust control panel
  • Scissors movement switch located on the chassis
  • Traction batteries, 24V / 159Ah
  • Battery charge level indicator
  • Solid welded steel structure
  • Very stable hydraulic scissors
  • Durable powder coating
  • Integrated level indicator
  • CE compliant
  • Scissors and non-hanging frames with smooth finishes and closed and rounded ends


Technical information and options:

Model

BENOMIC S-Line S500

Scissors

3 scissors

Wagon length

Wagon width

191 cm

Rail width (center to center, often 55 cm) + 18.6 cm

Platform length

190 cm

Platform width

43 cm

Minimum heigth

62 cm

Maximum heigth

500 cm (when using outriggers)

(350 cm without using outriggers)

Motor capacity

0.25 kW

Maximum load capacity
Wogan weight
150 kg
445 kg
Maximum speed
60 meters/minute (up to 110 meters/minute with turbo speed)
Battery
traction batterie, 24V/159Ah (20h) ou 24V/120Ah (5h)
Rail widths (center to center)

Standard : 55cm (51mm rail)

On request: 42cm to 80cm

Also included
  • 2 manual outriggers
  • 1 foot switch (pedal)
  • Hydraulic lifting wheels
  • Steel drive roller with plastic flanges
  • Battery charge level indicator
  • Level indicator (for tilt)
  • 2 safety guards
  • USB connection
Options on request
  • Built-in battery charger 115V or 230V
  • High frequency battery charger
  • Vulkollan drive roller with plastic flanged wheels
  • Toolkit for Benomic S-Line
  • Ventilator with USB connection for air circulation
  • Storage trays 60x40cm (crate tray)
  • Storage trays 40x30cm (box tray)
  • Storage box 60x40x25cm (leaf bin)
  • Towing platform for 24V connection (including foot switch)
  • Connection 12V + 24V with switch (max 5 Amp)
  • Etc.

Specifications

Largeur des rails c.t.c. 55cm, pipe 51mm or c.t.c. 42.5cm, pipe 51mm or c.t.c. 60cm, pipe 51mm or other



Hydraulic platform with 3 scissors on electric trolley for rail in horticultural greenhouse.

  • TüV certified safety (German regulatory and standardization body)
  • Double access with self-closing doors for maximum security
  • Access to the control panel from both ends of the platform
  • Control panel with integrated USB port (for mobile phone or fan)
  • Adjustable speed from 0 to 60 meters / minute (and up to 110 meters / minute with the use of the turbo button)
  • Designed to be easy to maintain
  • Lateral movement with a simple button
  • Electronically adjustable driving control for acceleration and comfortable braking
  • Simple control and robust control panel
  • Scissors movement switch located on the chassis
  • Traction batteries, 24V / 159Ah
  • Battery charge level indicator
  • Solid welded steel structure
  • Very stable hydraulic scissors
  • Durable powder coating
  • Integrated level indicator
  • CE compliant
  • Scissors and non-hanging frames with smooth finishes and closed and rounded ends


Technical information and options:

Model

BENOMIC S-Line S500

Scissors

3 scissors

Wagon length

Wagon width

191 cm

Rail width (center to center, often 55 cm) + 18.6 cm

Platform length

190 cm

Platform width

43 cm

Minimum heigth

62 cm

Maximum heigth

500 cm (when using outriggers)

(350 cm without using outriggers)

Motor capacity

0.25 kW

Maximum load capacity
Wogan weight
150 kg
445 kg
Maximum speed
60 meters/minute (up to 110 meters/minute with turbo speed)
Battery
traction batterie, 24V/159Ah (20h) ou 24V/120Ah (5h)
Rail widths (center to center)

Standard : 55cm (51mm rail)

On request: 42cm to 80cm

Also included
  • 2 manual outriggers
  • 1 foot switch (pedal)
  • Hydraulic lifting wheels
  • Steel drive roller with plastic flanges
  • Battery charge level indicator
  • Level indicator (for tilt)
  • 2 safety guards
  • USB connection
Options on request
  • Built-in battery charger 115V or 230V
  • High frequency battery charger
  • Vulkollan drive roller with plastic flanged wheels
  • Toolkit for Benomic S-Line
  • Ventilator with USB connection for air circulation
  • Storage trays 60x40cm (crate tray)
  • Storage trays 40x30cm (box tray)
  • Storage box 60x40x25cm (leaf bin)
  • Towing platform for 24V connection (including foot switch)
  • Connection 12V + 24V with switch (max 5 Amp)
  • Etc.
