Berg BeNomic Star 300 hydraulic platform (2-scissors)
Shipping cost from Europe to Quebec not included.
Délai d’expédition si en rupture de stock:
2-4 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT

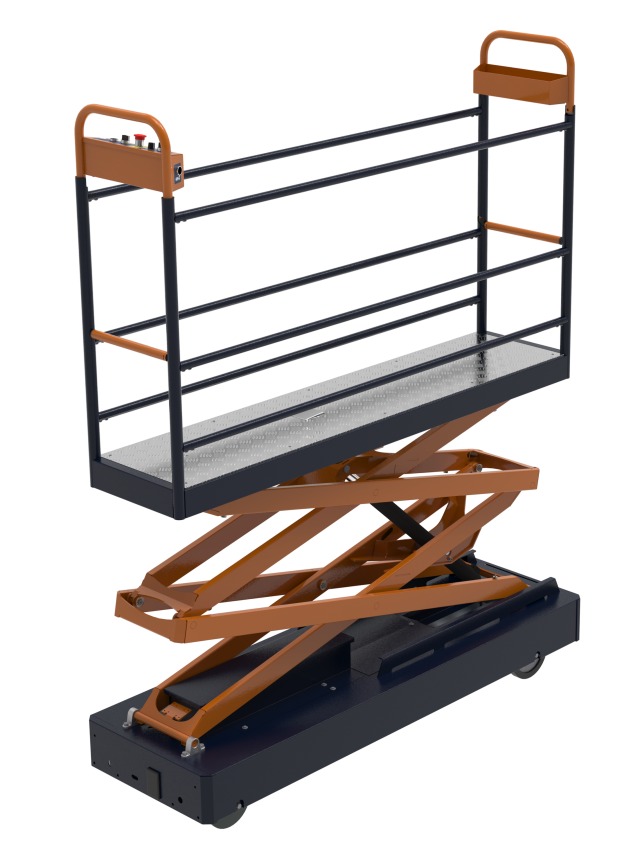

Hydraulic platform with 2 scissors on electric trolley for greenhouse rail in horticultural production.
This trolley can have a surface coating (optional), which can be applied after assembly, reduces dirt adhesion on machines.
This pipe rail trolley has been optimized in 2022. The optimization is among others in the area of transport; costs are saved because the trolleys are stackable and more of them can be put in a container, for example.
Technical information :
| Model | BENOMIC STAR 300 | |
| Scissors | 2 scissors | |
| Dimensions | C.T.C | Length x width |
| 42.5 - 45 cm | 200 x 63.6 cm | |
| 50 - 55 cm | 200 x 73.6 cm | |
| 60 cm | 200 x 78.6 cm | |
|
Wheelbase
| 156.5 cm | |
|
Min. height
| 55 cm | |
|
Platform length
| 200 cm | |
|
Platform width
| 46 cm | |
|
Max. standing height
| 300 cm | |
|
Max. Load capacity
| 250 kg | |
|
Max. travel speed on the tube
| 60 m/min | |
| Voltage | 24V DC | |
| Battery capacity (Ah) (5h/20h) | 120/159 |
Specifications
| Largeur des rails | c.t.c. 55cm, pipe 51mm, c.t.c. 42.5cm, pipe 51mm, c.t.c. 60cm, pipe 51mm, other |
