Mosa Green TO55S Step Sowing line including seeder, vermiculite dispenser, water tunnel and feeding belt

Call For Price https://boutiquepro.ghlinc.com/web/image/product.template/8996/image_1920?unique=145afa6

Shipping cost from Europe to Quebec not included.

  • Model

This combination does not exist.


Availability: backordered
Shipping time if backordered:: 6-20 semaines
In case of backorder:: Only replenished IF YOU ORDER IT

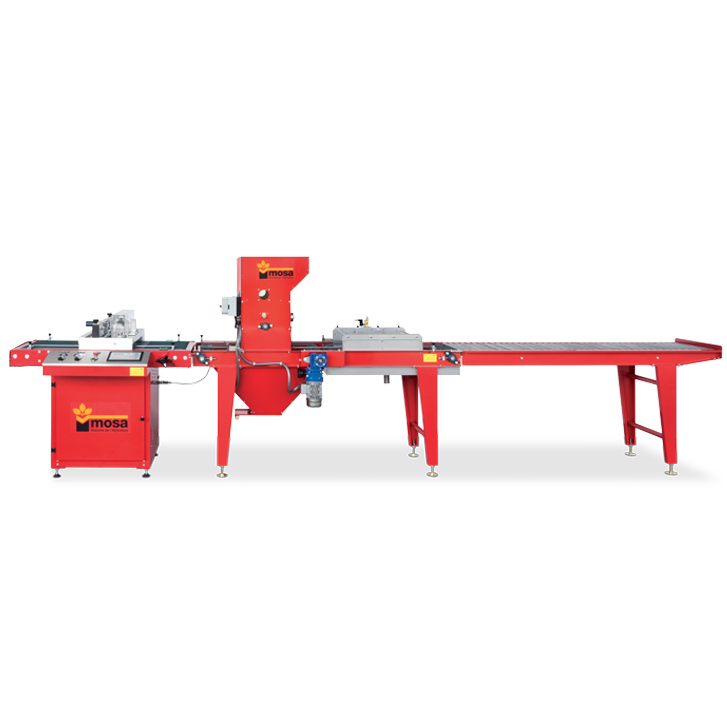

The "TO55S Step Sowing line" sowing line from the Italian company Mosa Green (Macchine OrtoFloroVivaismo) sows, covers and irrigates and moves trays automatically.


Model

TO55S Step Sowing line

Capacity

Minimum: 1 tray at a time

Maximum: 1 row / 2 seconds

Dimension of the trays to be filled

Tailor-made, according to the needs of the horticultural producer.

2 configurations:

- Maximum height of the trays <100mm

- Maximum height of the trays >100mm

Seeder features

Model TO55.T

- Works by suction and precisely sows very small amounts of seed at a time

- The needle system allows to sow bare seeds of different shapes and sizes. It can process very small seeds such as lobelia or tobacco, irregular shapes like marigold, zinnia, celery, pepper or different types like cacti, watermelon, cucumber as well as all kinds of coated seeds

- Includes microcomputer system to adjust different functions such as working speed, repetition of sowing, seed collection time, suction capacity (without having to manually stop the machine

- The remaining seeds can be collected by suction in a filter jar

- The basic set includes 8 different kits (20 pieces per kit, total of 160 needles)

- Choice of seed sets (depending on the different types of trays used by the producer)

- 1 phase 240V motor

Vermiculite dispenser / watering tunnel features

Model VP2000

- Length: 2 m

- For distribution of dry substrates such as vermiculite or perlite

- Recovery system to allow dry recovery and reuse of excess vermiculite

- Speed ​​regulator to dose the amount of vermiculite to be applied with a distribution drum

- The irrigation tunnel is made up of 4 irrigation pipes equipped with a valve each. Stainless steel frame and collection basin

- 3 phase 347V motor (or 1 phase 240V on request)

Convoyor features

Model N11M.2

- 2 m long conveyor (other lengths also available on request)

- Adjustable speed

- 2 adjustable feet

- Width: 50 cm

- Side guides

- 3 phase 347V motor (or 1 phase 240V on request)




Other Mosa Green models also available on request. Contact us for more details!

Specifications

Model Seeder 240V, Conveyor 347V, Distributor 347V│Max tray height <100mm or Seeder 240V, Conveyor 347V, Distributor 347V│Max tray height >100mm or Seeder 240V, Conveyor 240V, Distributor 240V│Max tray height <100mm or Seeder 240V, Conveyor 240V, Distributor 240V│Max tray height >100mm



The "TO55S Step Sowing line" sowing line from the Italian company Mosa Green (Macchine OrtoFloroVivaismo) sows, covers and irrigates and moves trays automatically.


Model

TO55S Step Sowing line

Capacity

Minimum: 1 tray at a time

Maximum: 1 row / 2 seconds

Dimension of the trays to be filled

Tailor-made, according to the needs of the horticultural producer.

2 configurations:

- Maximum height of the trays <100mm

- Maximum height of the trays >100mm

Seeder features

Model TO55.T

- Works by suction and precisely sows very small amounts of seed at a time

- The needle system allows to sow bare seeds of different shapes and sizes. It can process very small seeds such as lobelia or tobacco, irregular shapes like marigold, zinnia, celery, pepper or different types like cacti, watermelon, cucumber as well as all kinds of coated seeds

- Includes microcomputer system to adjust different functions such as working speed, repetition of sowing, seed collection time, suction capacity (without having to manually stop the machine

- The remaining seeds can be collected by suction in a filter jar

- The basic set includes 8 different kits (20 pieces per kit, total of 160 needles)

- Choice of seed sets (depending on the different types of trays used by the producer)

- 1 phase 240V motor

Vermiculite dispenser / watering tunnel features

Model VP2000

- Length: 2 m

- For distribution of dry substrates such as vermiculite or perlite

- Recovery system to allow dry recovery and reuse of excess vermiculite

- Speed ​​regulator to dose the amount of vermiculite to be applied with a distribution drum

- The irrigation tunnel is made up of 4 irrigation pipes equipped with a valve each. Stainless steel frame and collection basin

- 3 phase 347V motor (or 1 phase 240V on request)

Convoyor features

Model N11M.2

- 2 m long conveyor (other lengths also available on request)

- Adjustable speed

- 2 adjustable feet

- Width: 50 cm

- Side guides

- 3 phase 347V motor (or 1 phase 240V on request)




Other Mosa Green models also available on request. Contact us for more details!
