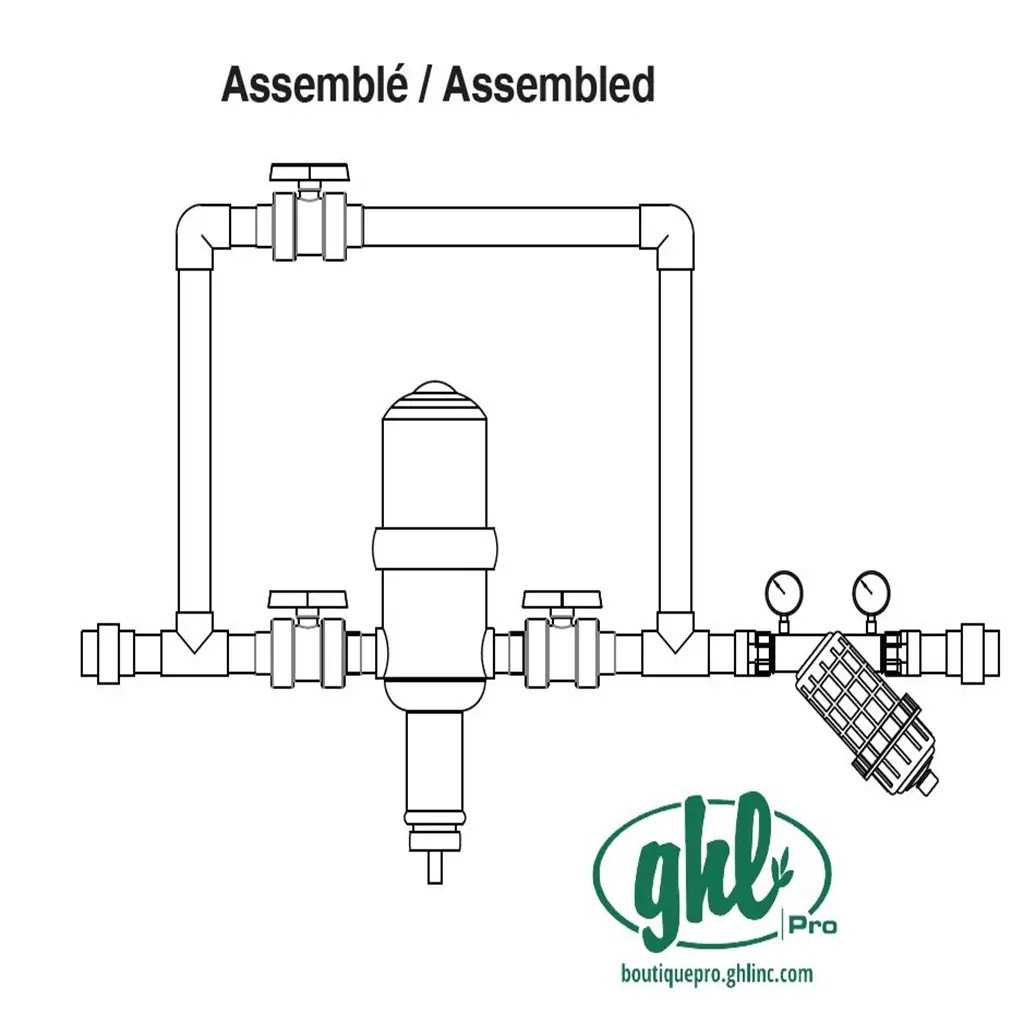

TF25 proportional injector and by-pass Station Assembly
Délai d’expédition si en rupture de stock:
up to 5 weeks
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Sold assembled or ready to assemble.
Set of parts to add a fertilizer station or acid injection (low concentration, <10% for most types of acids) on an existing irrigation system.
Also available (see below accessories) :
-Inlet Filter (Kit)
| Injector model | MixRite™ TF-25 (25 m3/h) - 0.3%-2.5% - Manual On/Off |
| Included | -Proportional injector -Filter -Teflon fittings, collars and ribbon |
| Flow range "to operate properly" |
9 - 110 gpm (2000-25000 L/h) |
| Dosage rate |
0.3 - 2.5% (1:333 - 1:40) |
| Working pressure |
14.7 - 120 PSI (1-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
2" MPT x 2" MPT |
| Typical chemical application |
Fertilizer Low concentration (<10% for most acid types ) Etc. |
| Order-driven inventory |
Submit a Ticket
Sold assembled or ready to assemble.
Set of parts to add a fertilizer station or acid injection (low concentration, <10% for most types of acids) on an existing irrigation system.
Also available (see below accessories) :
-Inlet Filter (Kit)
| Injector model | MixRite™ TF-25 (25 m3/h) - 0.3%-2.5% - Manual On/Off |
| Included | -Proportional injector -Filter -Teflon fittings, collars and ribbon |
| Flow range "to operate properly" |
9 - 110 gpm (2000-25000 L/h) |
| Dosage rate |
0.3 - 2.5% (1:333 - 1:40) |
| Working pressure |
14.7 - 120 PSI (1-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
2" MPT x 2" MPT |
| Typical chemical application |
Fertilizer Low concentration (<10% for most acid types ) Etc. |
Specifications
| Irrigation kit | |
|---|---|
| Number of injectors | 1 injector, 2 injectors, 3 injectors, 1 injector (assembled), 2 injectors (assembled), 3 injectors (assembled) |
| Others | |
|---|---|
| Inlet direction | entrée horiz. inlet (standard), entrée vert. inlet (alternative configuration) |
| Outlet direction | sortie horiz. inlet (standard), sortie vert. inlet (alternative configuration) |
