TF3 + 2.5 Station Assembly with acid: 3 injectors : 2x TF3 + 1x 2.5 acid proportional injectors and by-pass
Délai d’expédition si en rupture de stock:
up to 5 weeks
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Sold assembled or ready to assemble.
Set of parts for adding a station fertilizer and acid injection on an existing irrigation system.
PVDF model for the injection of phosphoric acid, nitric acid, sulfuric acid and other very aggressive chemicals. This MixRite 2.5 Injector has a white PVDF body designed to resist chemical attack by acid.
Also available (see below accessories) :
-Inlet Filter (Kit)
| Model | 2x MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF + 1x MixRite 2.5 PVDF 3/4" 0.3-2% 0.088-11gpm acid proportional injector |
| Included | -Proportional injectors -Acid injector -Filter -Teflon fittings, collars and ribbon |
| Flow range "to operate properly" |
0.088 - 14 gpm (20-3200 L/h) |
| Dosage rate |
0.2 - 2% (1:500 - 1:50) |
| Working pressure |
2.9 - 120 PSI (0.2-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
1" MPT x 1" MPT |
Submit a Ticket
Sold assembled or ready to assemble.
Set of parts for adding a station fertilizer and acid injection on an existing irrigation system.
PVDF model for the injection of phosphoric acid, nitric acid, sulfuric acid and other very aggressive chemicals. This MixRite 2.5 Injector has a white PVDF body designed to resist chemical attack by acid.
Also available (see below accessories) :
-Inlet Filter (Kit)
| Model | 2x MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF + 1x MixRite 2.5 PVDF 3/4" 0.3-2% 0.088-11gpm acid proportional injector |
| Included | -Proportional injectors -Acid injector -Filter -Teflon fittings, collars and ribbon |
| Flow range "to operate properly" |
0.088 - 14 gpm (20-3200 L/h) |
| Dosage rate |
0.2 - 2% (1:500 - 1:50) |
| Working pressure |
2.9 - 120 PSI (0.2-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
1" MPT x 1" MPT |
Specifications
| Irrigation kit | |
|---|---|
| Number of injectors | 1 acid injector + 2 injectors (total : 3 injectors) assembled, 1 acid injector + 2 injectors (total : 3 injectors) |
| Others | |
|---|---|

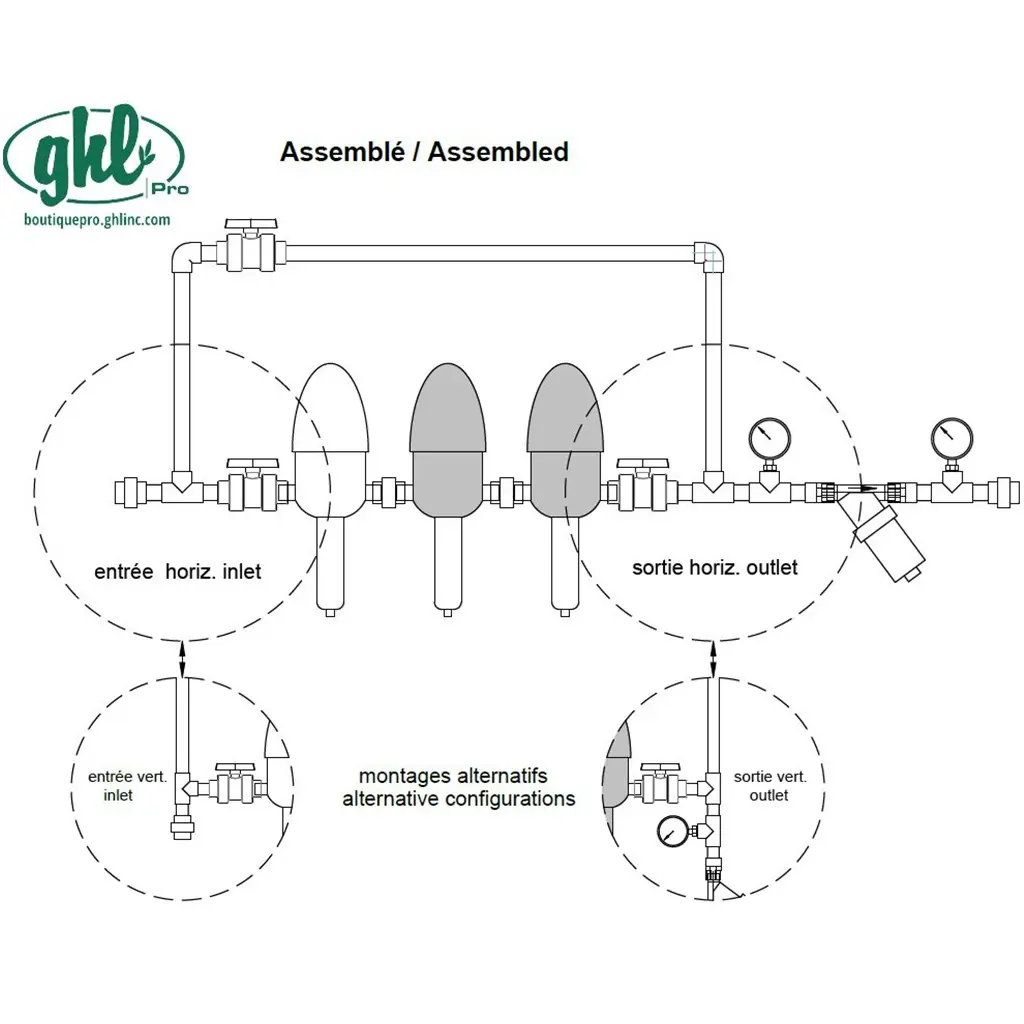

| Inlet direction | entrée horiz. inlet (standard), entrée vert. inlet (alternative configuration) |
| Outlet direction | sortie horiz. inlet (standard), sortie vert. inlet (alternative configuration) |
