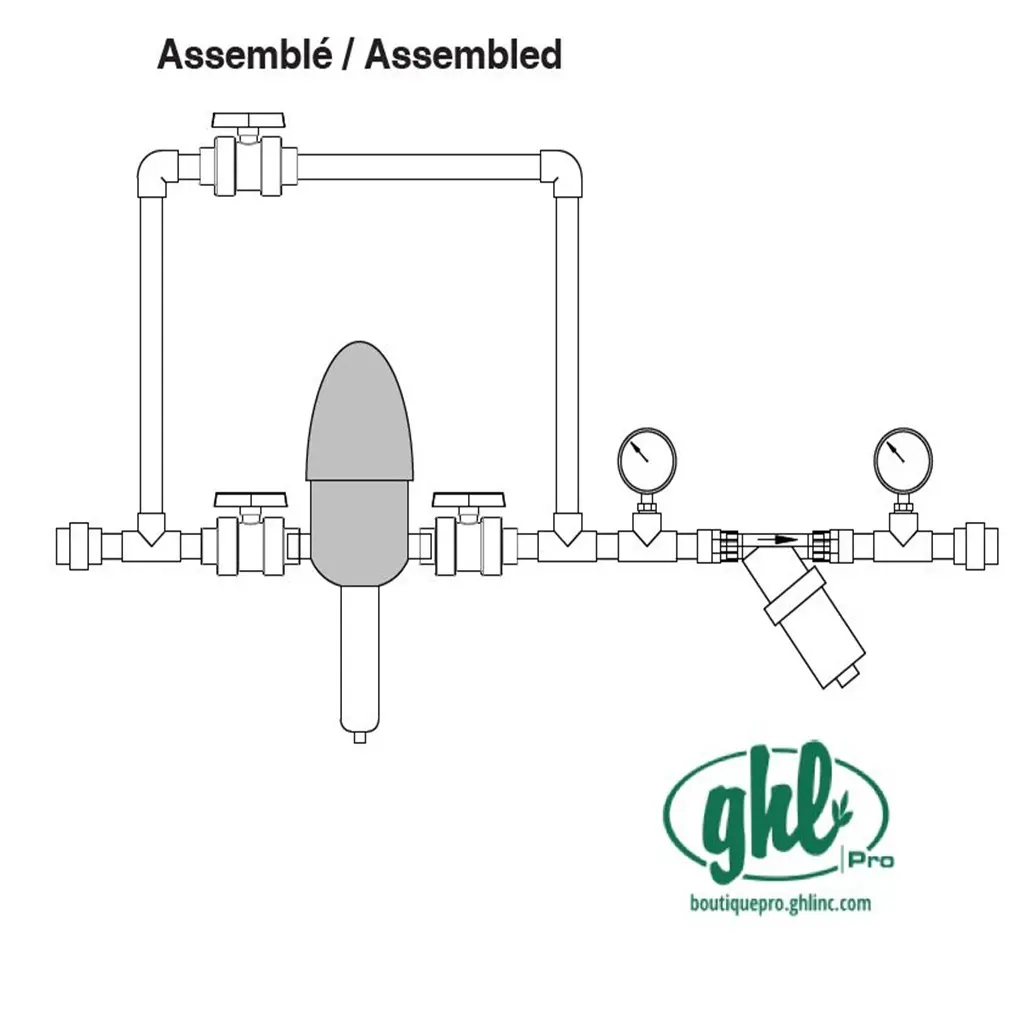

TF3 proportional injector and by-pass Station Assembly
Délai d’expédition si en rupture de stock:
up to 5 weeks
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Sold assembled or ready to assemble.
Set of parts to add a fertilizer station or acid injection (low concentration, <10% for most types of acids) on an existing irrigation system.
Also available (see below accessories) :
-Inlet Filter (Kit)
| Model | MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF |
| Included | -Proportional injector -Filter -Teflon fittings, collars and ribbon |
| Flow range "to operate properly" |
0.088 - 14 gpm (20-3200 L/h) |
| Dosage rate |
0.2 - 2% (1:500 - 1:50) |
| Working pressure |
2.9 - 120 PSI (0.2-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
1" MPT x 1" MPT |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
| Order-driven inventory |
Submit a Ticket
Sold assembled or ready to assemble.
Set of parts to add a fertilizer station or acid injection (low concentration, <10% for most types of acids) on an existing irrigation system.
Also available (see below accessories) :
-Inlet Filter (Kit)
| Model | MixRite™ TF-3 (3.2 m3/h) - 0.2%-2% STD - Manual ON/OFF |
| Included | -Proportional injector -Filter -Teflon fittings, collars and ribbon |
| Flow range "to operate properly" |
0.088 - 14 gpm (20-3200 L/h) |
| Dosage rate |
0.2 - 2% (1:500 - 1:50) |
| Working pressure |
2.9 - 120 PSI (0.2-8 bar) |
| Air release system |
Manual ON/OFF Valve (Allows a manual release of the blocked air in the water lines and a manual closing of the fertilizer injection process) |
| Inlet x Outlet size |
1" MPT x 1" MPT |
| Typical chemical application |
Fertilizer Low acid concentration (<10% for most acid types) Etc. |
Specifications
| Irrigation kit | |
|---|---|
| Number of injectors | 1 injector, 2 injectors, 3 injectors, 1 injector (assembled), 2 injectors (assembled), 3 injectors (assembled) |
| Others | |
|---|---|

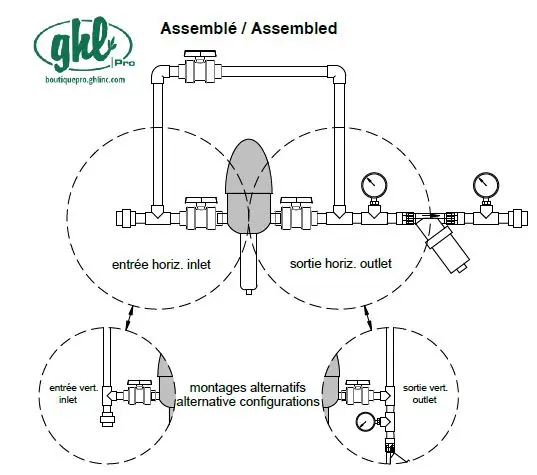

| Inlet direction | entrée horiz. inlet (standard), entrée vert. inlet (alternative configuration) |
| Outlet direction | sortie horiz. inlet (standard), sortie vert. inlet (alternative configuration) |
