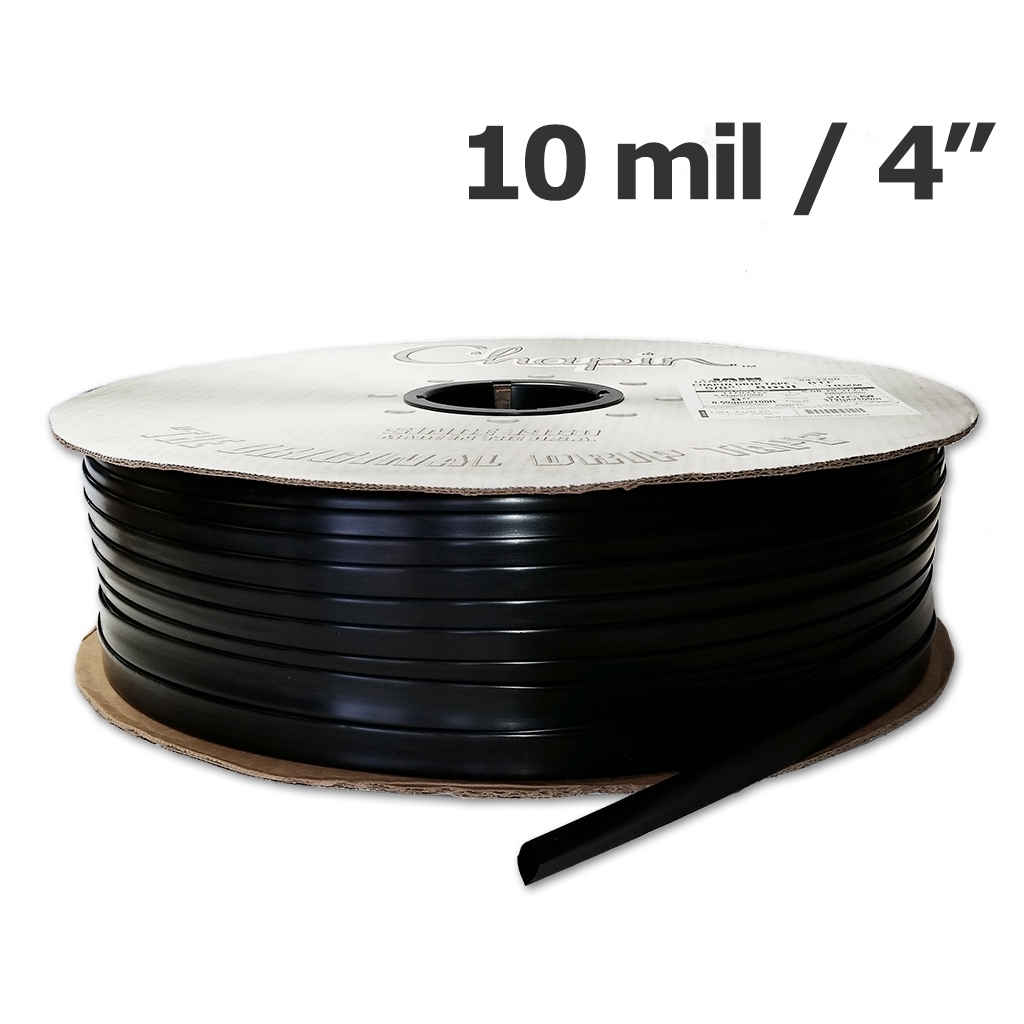

Chapin BTF drip tape 10mil 4" 1 gpm 5/8" (3000')
150-110-031400
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Usually kept in stock, will be available soon
Turbulent double-walled tubing Chapin commonly known as drip tape. Designed for watering in greenhouses and row crops, as well as for irrigation of outdoor crops.
|
Model
|
Chapin drip tape - 10 mil 4'' 1 3,000 BTF |
|
Inside diameter (ID)
|
5/8" (16 mm) |
|
Wall thickness *
|
10 mil |
|
Spacing
|
4'' (10 cm) |
|
Flow @ 8 PSI
|
0.80 gpm/100' (595 L/h /100m) 0.16 gph/dripper (0.61 L/h /dripper) |
|
Flow @ 10 PSI
|
1.00 gpm/100' (744 L/h /100m) 0.20 gph/dripper (0.76 L/h /dripper) |
|
Reel length
|
3,00' (915 meters) |
|
Recommended filtration
|
150 mesh |
|
Material
|
Low density polyethylene |
The thickness required is determined by the type of application. For example, for non-woody plants produced in greenhouses, we suggested 4 or 8 mil. For outdoor production, we would recommend 10 or 15 mil. It is also called as collapsible hose, as once pressurized it becomes round and collapses on depressurizing. Being a flat tube it can be supplied on reels containing several thousand feet. Turbulent flow-path that makes it a clog-resistant drip tape. A 150-200 mesh filter has to be installed before drip tape. An operation pressure of 10 PSI is recommended.
* mil = wall thickness in thousands of an inch.
Turbulent double-walled tubing Chapin commonly known as drip tape. Designed for watering in greenhouses and row crops, as well as for irrigation of outdoor crops.
|
Model
|
Chapin drip tape - 10 mil 4'' 1 3,000 BTF |
|
Inside diameter (ID)
|
5/8" (16 mm) |
|
Wall thickness *
|
10 mil |
|
Spacing
|
4'' (10 cm) |
|
Flow @ 8 PSI
|
0.80 gpm/100' (595 L/h /100m) 0.16 gph/dripper (0.61 L/h /dripper) |
|
Flow @ 10 PSI
|
1.00 gpm/100' (744 L/h /100m) 0.20 gph/dripper (0.76 L/h /dripper) |
|
Reel length
|
3,00' (915 meters) |
|
Recommended filtration
|
150 mesh |
|
Material
|
Low density polyethylene |
The thickness required is determined by the type of application. For example, for non-woody plants produced in greenhouses, we suggested 4 or 8 mil. For outdoor production, we would recommend 10 or 15 mil. It is also called as collapsible hose, as once pressurized it becomes round and collapses on depressurizing. Being a flat tube it can be supplied on reels containing several thousand feet. Turbulent flow-path that makes it a clog-resistant drip tape. A 150-200 mesh filter has to be installed before drip tape. An operation pressure of 10 PSI is recommended.
* mil = wall thickness in thousands of an inch.
| Color | Black |
| Inventory stocked | |
| Material | Low density polyethylene |
| Outer tube diameter (O.D.) | 5/8 '' |
