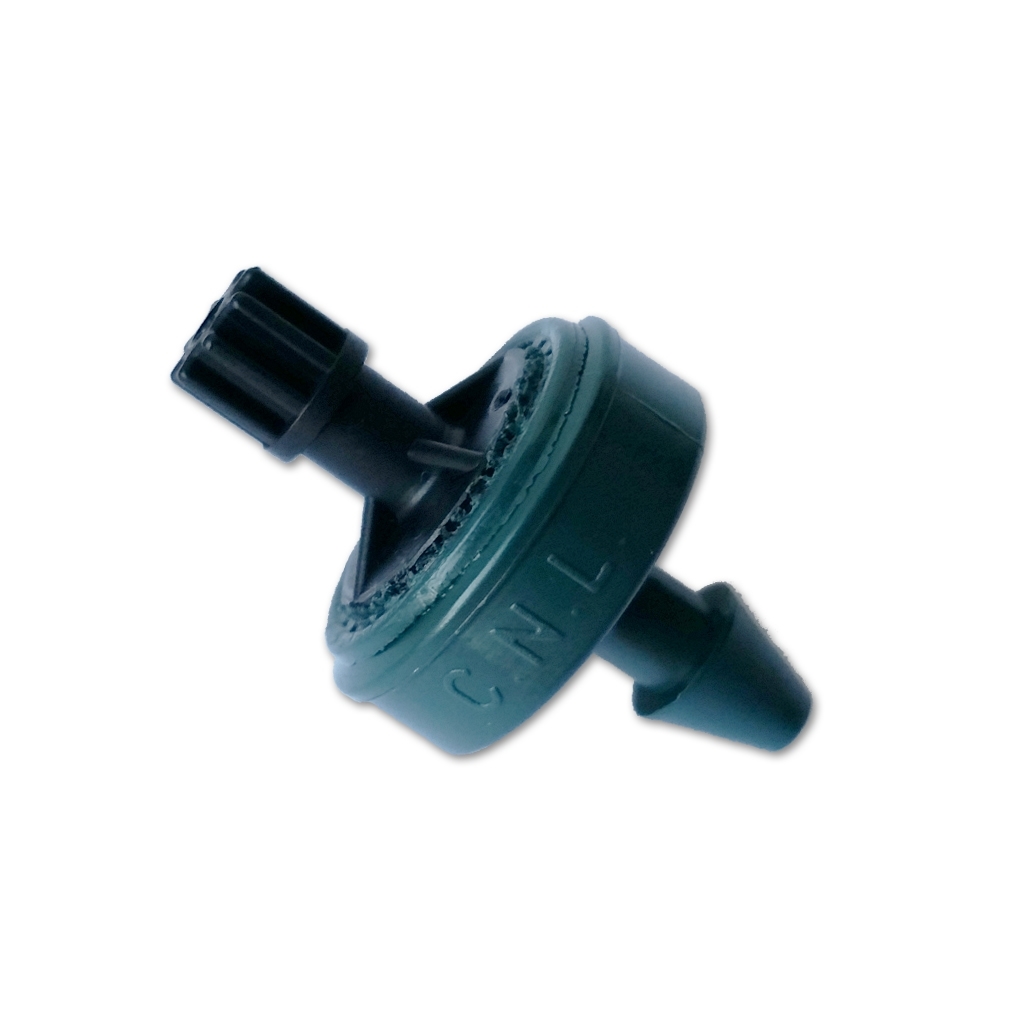

Woodpecker drippers 8L/h (2.1 gph) Nipple Outlet PCJ LCNL (250/pk)
150-120-011100-250
- Irrig_Netafim_Goutteur_Woodpecker_PCJ-CNL-FT_V2011-06-15_FR.pdf
- Irrig_Netafim_Goutteur_Woodpecker_PCJ-CNL-FT_V2018-06_EN.pdf
- Irrig_Netafim_Goutteur_goutte-a-goutte_pots-Brochure_V2008-03_FR.pdf
- Irrig_Netafim_Goutteur_potted_plant_GHL-Brochure_V2015-06_EN.pdf
- Irrig_Netafim_Goutteur_hanging_basket-Brochure_V2012-01_EN.pdf
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Usually kept in stock, will be available soon
4-way manifold sold separately. The addition of a 4-way manifold allows to irrigate 4 pots with a flow rate of 2L/h (0.5 gph) each. On the other hand, the 4 stakes installed at the end of the microtubes must be 2L/h regulating stakes.
Netafim Woodpecker pressure compensators are used to maintain uniform consistency along the irrigation line and to avoid dripping after the system is shut down. Your representative can help you choose the right dripper to use. These products require the use of a filter of at least 120 mesh and operate at an optimal pressure of 35 PSI.
| Flow | 8 liters/hour (2.1 gallons/hour) |
| Model | PCJ LCNL (Pressure compensating, with check valve) # 01WPCJL8N-B Nipple outlet |
| Pressure range | 14.5 - 45 PSI , optimal 35 PSI (1.0 - 3.0 bar, optimal 2.0 bar) |
| Closing pressure | 1.74 PSI (0.12 bar) |
| Recomended filtration | 120 mesh (130 microns) |
| Required tubing | Microtubing 125'' ID - 197'' OD (3 mm x 5 mm) polyethylene (PE) |
| Required punch size | Punch 2.5 mm |
| Dripper quantity per package | 250 drippers / bag |
4-way manifold sold separately. The addition of a 4-way manifold allows to irrigate 4 pots with a flow rate of 2L/h (0.5 gph) each. On the other hand, the 4 stakes installed at the end of the microtubes must be 2L/h regulating stakes.
Netafim Woodpecker pressure compensators are used to maintain uniform consistency along the irrigation line and to avoid dripping after the system is shut down. Your representative can help you choose the right dripper to use. These products require the use of a filter of at least 120 mesh and operate at an optimal pressure of 35 PSI.
| Flow | 8 liters/hour (2.1 gallons/hour) |
| Model | PCJ LCNL (Pressure compensating, with check valve) # 01WPCJL8N-B Nipple outlet |
| Pressure range | 14.5 - 45 PSI , optimal 35 PSI (1.0 - 3.0 bar, optimal 2.0 bar) |
| Closing pressure | 1.74 PSI (0.12 bar) |
| Recomended filtration | 120 mesh (130 microns) |
| Required tubing | Microtubing 125'' ID - 197'' OD (3 mm x 5 mm) polyethylene (PE) |
| Required punch size | Punch 2.5 mm |
| Dripper quantity per package | 250 drippers / bag |
| Part type | Dripper (pellet) |
| Microtube required | 125-197" (3.18/5mm) tube |
| Inventory stocked | |
| Quantity per pack | 250 |
