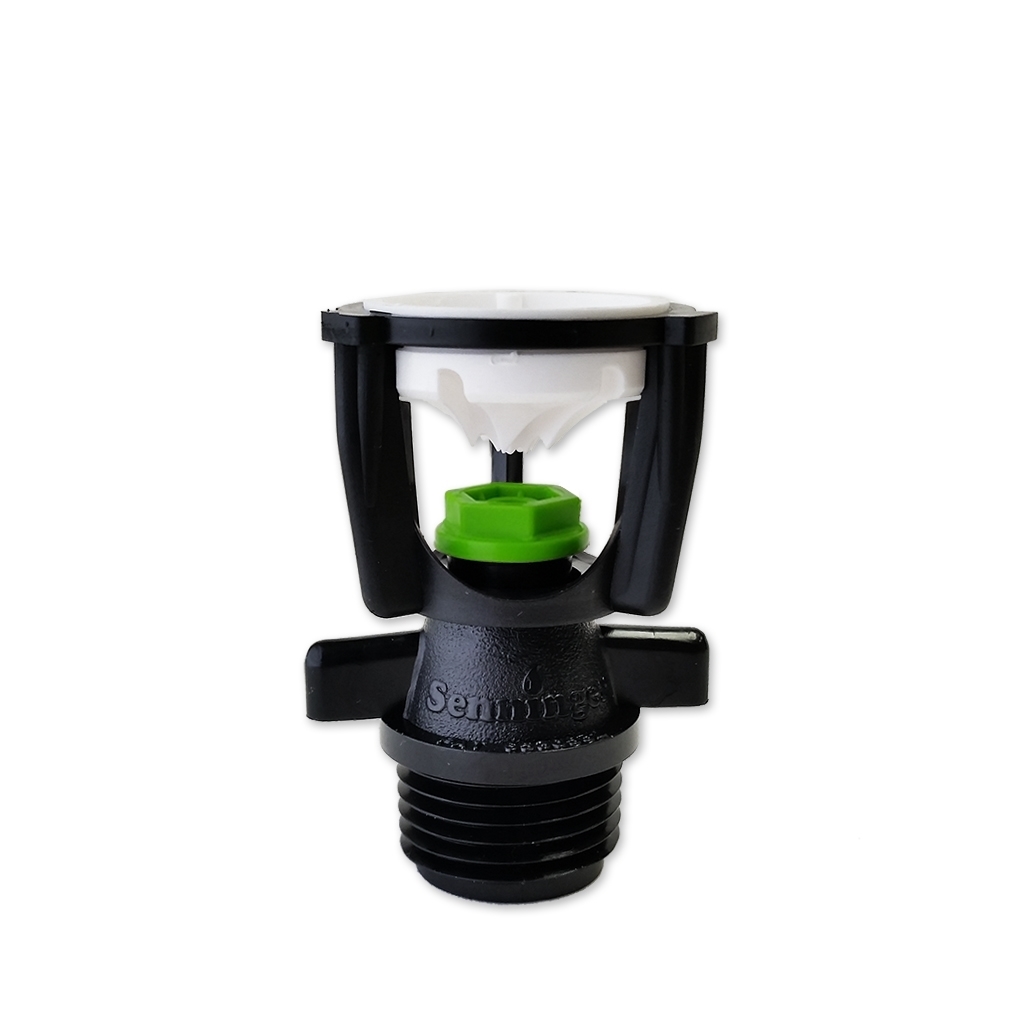

mini-Wobbler #7 jet lime (7/64") sprinkler (1/2" MPT)
150-130-011100
Availability:
in stock
Shipping time if backordered::
jusqu'à 3 semaines
In case of backorder::
Usually kept in stock, will be available soon
The mini-Wobbler® for vertical installation uses Senninger's Wobbler® off-center rotary technology. It provides extremely uniform coverage over a large diameter at low pressure.
- Uniform blanket in the shape of a circle, large diameter of watering;
- The mini-Wobbler® offers a closer but more uniform watering diameter;
- Connection ½ "MPT;
- For installation, a tee, a 1.5 or 3' nipple and a ring are required;
- A stem should be planted close to the nipple to support it, settles at a height of 1.5 or 3';
| Model | Mini-Wobbler #7 Nozzle - Lime (7/64") |
| Opening Diameter (nozzle) |
7/64" |
| Connection diameter |
½" MPT |
| Flow |
@ 15 PSI : 1.30 gpm @ 20 PSI : 1.51 gpm @ 25 PSI : 1.69 gpm |
| Irrigated Diameter |
35.0' to 43.0' depending on the installation pressure and height |
The mini-Wobbler® for vertical installation uses Senninger's Wobbler® off-center rotary technology. It provides extremely uniform coverage over a large diameter at low pressure.
- Uniform blanket in the shape of a circle, large diameter of watering;
- The mini-Wobbler® offers a closer but more uniform watering diameter;
- Connection ½ "MPT;
- For installation, a tee, a 1.5 or 3' nipple and a ring are required;
- A stem should be planted close to the nipple to support it, settles at a height of 1.5 or 3';
| Model | Mini-Wobbler #7 Nozzle - Lime (7/64") |
| Opening Diameter (nozzle) |
7/64" |
| Connection diameter |
½" MPT |
| Flow |
@ 15 PSI : 1.30 gpm @ 20 PSI : 1.51 gpm @ 25 PSI : 1.69 gpm |
| Irrigated Diameter |
35.0' to 43.0' depending on the installation pressure and height |
| Part type | Sprinkler / nozzle |
| Outer tube diameter (O.D.) | 1/2 " |
| Irrigation type | Sprinkling on table 10' to 38' |
| Irrigation type | External sprinkling (dia. 30 'and +) |
| Inventory stocked | |
| Connection type | Male pipe thread (MPT) |
