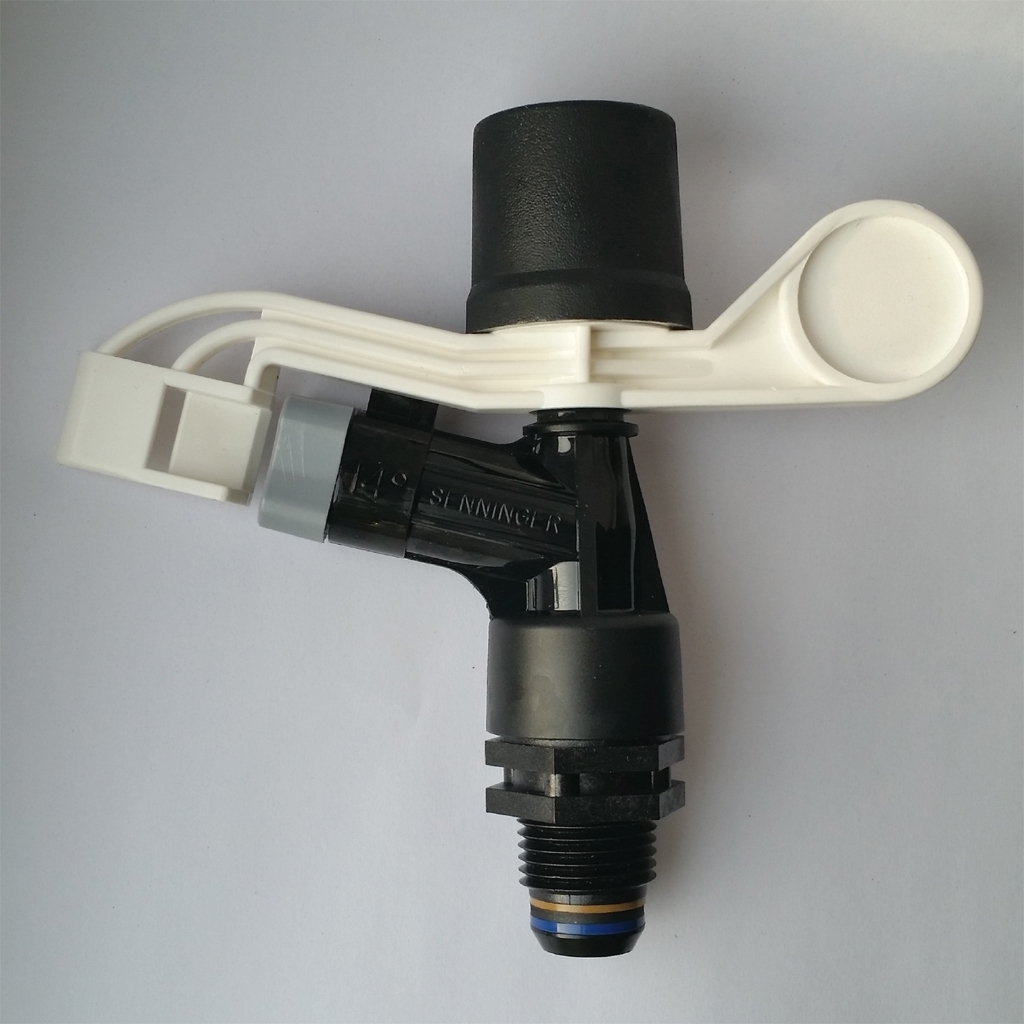

20 Series 2014HS #9 grey nozzle (9/64") impact sprinkler

150-130-012000

Call For Price https://boutiquepro.ghlinc.com/web/image/product.template/7582/image_1920?unique=675c53f
Unit(s)

    This combination does not exist.




    The 20 series full-circle impacts are Senninger’s most economical impact sprinklers.



    • Built-in hex wrench for easy, in-the-field maintenance
    • Connection ½ "MPT
    • Two-year warranty on materials, workmanship and performance. Warranted to maintain correct orifice size for five years
    • Color-coded nozzles for easy size identification.



    Model 20 Series - 2014HS -#9 Nozzle - Grey (9/64")
    Opening Diameter (nozzle)

    9/64"

    Connection diameter

    ½" MPT

    Flow

    @ 30 PSI : 3.08 gpm

    @ 35 PSI : 3.30 gpm

    @ 40 PSI : 3.56 gpm

    @ 45 PSI : 3.78 gpm

    @ 50 PSI : 3.98 gpm

    Irrigated Diameter (at 1.5' height)

    71' to 78' depending on the pressure




    The 20 series full-circle impacts are Senninger’s most economical impact sprinklers.



    • Built-in hex wrench for easy, in-the-field maintenance
    • Connection ½ "MPT
    • Two-year warranty on materials, workmanship and performance. Warranted to maintain correct orifice size for five years
    • Color-coded nozzles for easy size identification.



    Model 20 Series - 2014HS -#9 Nozzle - Grey (9/64")
    Opening Diameter (nozzle)

    9/64"

    Connection diameter

    ½" MPT

    Flow

    @ 30 PSI : 3.08 gpm

    @ 35 PSI : 3.30 gpm

    @ 40 PSI : 3.56 gpm

    @ 45 PSI : 3.78 gpm

    @ 50 PSI : 3.98 gpm

    Irrigated Diameter (at 1.5' height)

    71' to 78' depending on the pressure

    Part type Sprinkler / nozzle
    Outer tube diameter (O.D.) 1/2 "
    Irrigation type External sprinkling (dia. 30 'and +)
    Connection type Male pipe thread (MPT)
