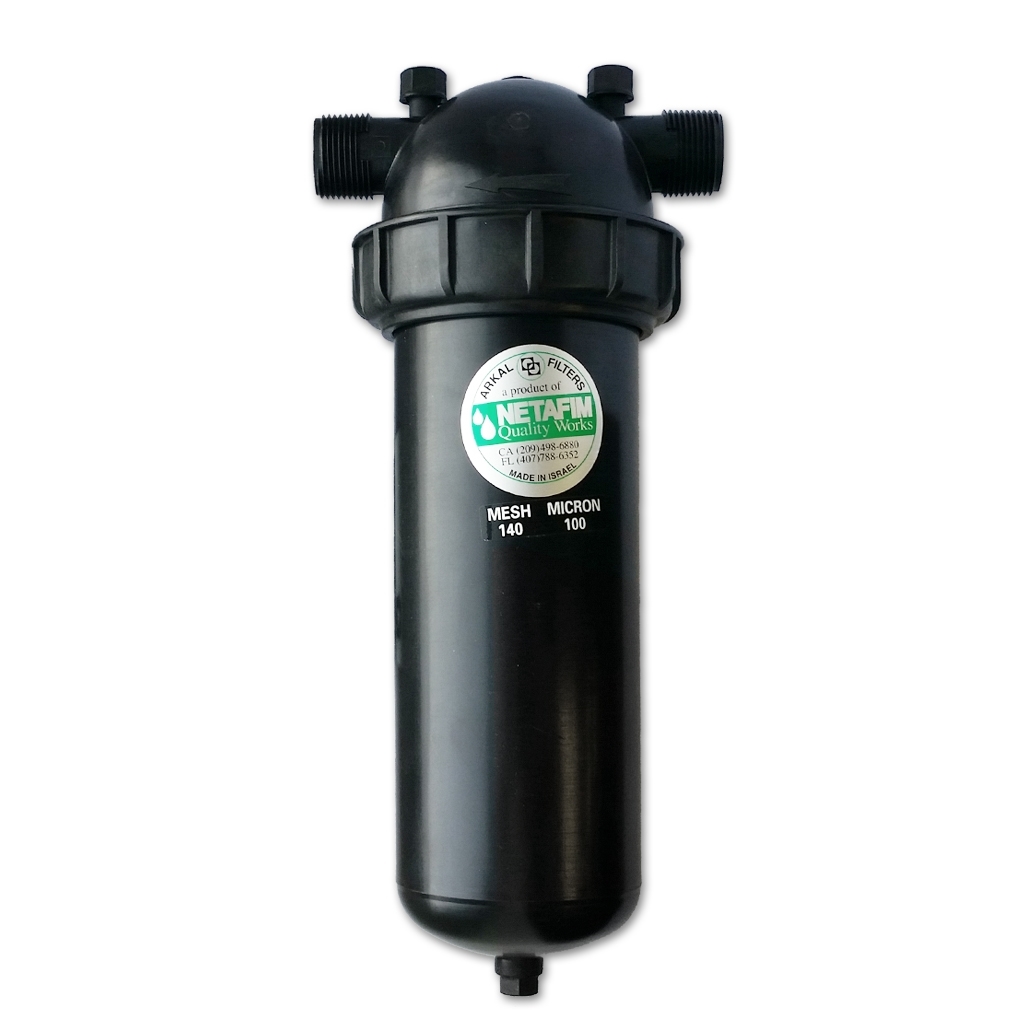

Disc filter 1" 140 mesh super filter Netafim Arkal 10-35gpm (black)

150-140-031100

Call For Price https://boutiquepro.ghlinc.com/web/image/product.template/3669/image_1920?unique=378561f

    This combination does not exist.


    Availability: backordered
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    This "T" -shaped disc filter is made up of several grooved stacked discs that hold the dirt. It is possible to change the cartridge to change the degree of filtration. A special tool is included to facilitate disassembly.



    Model Super filter 1102-0
    Include Filter (housing), 140 mesh disc cartridge, special tool (wrench) and an installation manual
    Filter Inlet x Outlet size 1'' MPT x 1'' MPT
    Filtration area 140 mesh (100 microns)
    Filtration volume 592 cm3 (36.1 pi3)
    Maximum Inlet Pressure 140 PSI
    Maximum Inlet Flow 35 gpm (8000 L/h)
    Filter size 34.7 x 13 x 15.8 cm
    Screen size 28.3 x 7 cm
    Material Reinforced polyamid body, polypropylene rings, stainless steel spring and nitrile rubber o-rings



    We have a range of filters that can meet all the needs of irrigation system in greenhouse, fields or nursery. Our disc filters have the advantage of collecting more dirt (larger filtration area) and are more durable than screen filters.






    This "T" -shaped disc filter is made up of several grooved stacked discs that hold the dirt. It is possible to change the cartridge to change the degree of filtration. A special tool is included to facilitate disassembly.



    Model Super filter 1102-0
    Include Filter (housing), 140 mesh disc cartridge, special tool (wrench) and an installation manual
    Filter Inlet x Outlet size 1'' MPT x 1'' MPT
    Filtration area 140 mesh (100 microns)
    Filtration volume 592 cm3 (36.1 pi3)
    Maximum Inlet Pressure 140 PSI
    Maximum Inlet Flow 35 gpm (8000 L/h)
    Filter size 34.7 x 13 x 15.8 cm
    Screen size 28.3 x 7 cm
    Material Reinforced polyamid body, polypropylene rings, stainless steel spring and nitrile rubber o-rings



    We have a range of filters that can meet all the needs of irrigation system in greenhouse, fields or nursery. Our disc filters have the advantage of collecting more dirt (larger filtration area) and are more durable than screen filters.



    Outer tube diameter (O.D.) 1 "
    Screen area 140 mesh (100 microns)
    Order-driven inventory
    Connection type Male pipe thread (MPT)
    Connection type MPT x MPT
