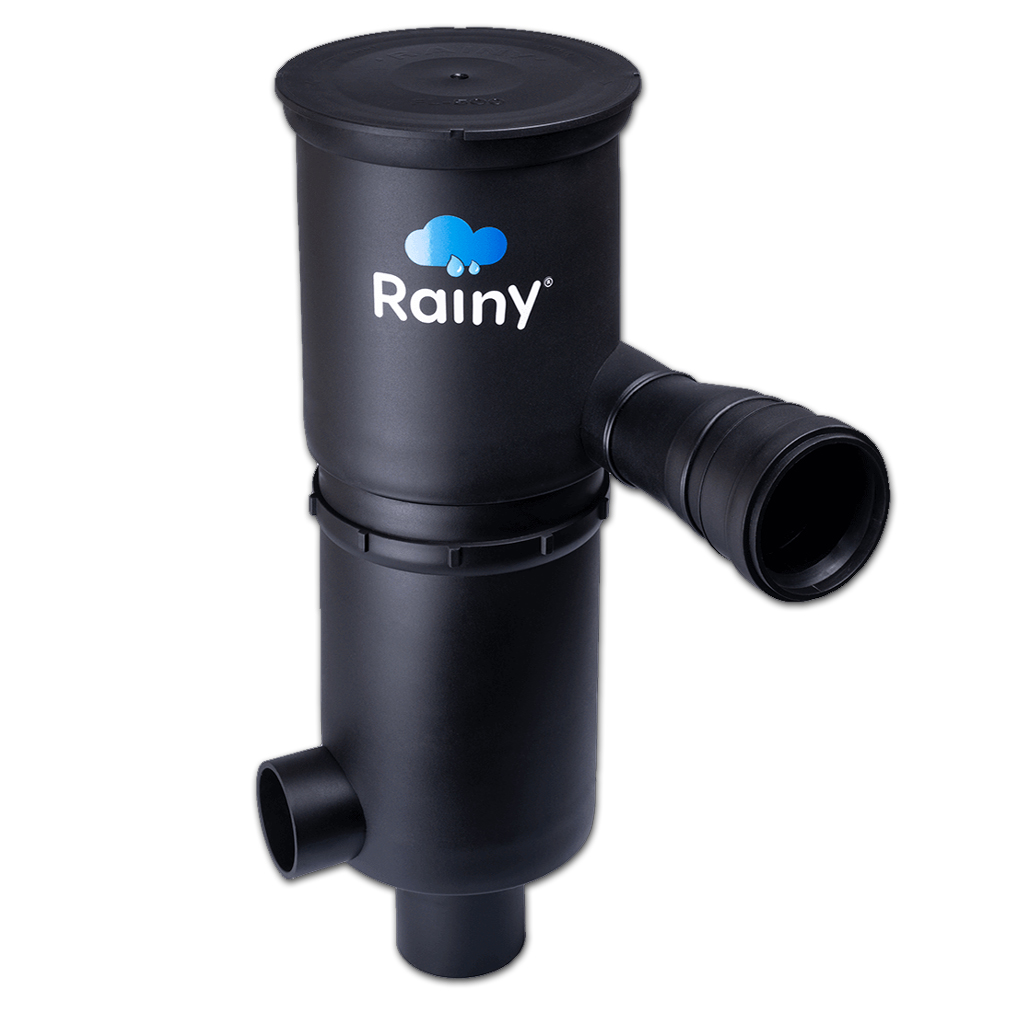

Rainy FL-500 Cyclone Filter 250 micron (480 L/min) upto 500 m2
150-140-041300
Disponibilité:
backordered
Délai d’expédition si en rupture de stock:
2-6 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
150-140-041300
Rainy filters are used for water harvesting. They are designed with self-cleaning mechanism and can be fixed to a wall by connecting to drain pipes.
- Filters works on the pincipe of cohesive and centrifugal force
- Does not allow stagnation of water and dirt particles
- Works on gravitational force, inbuilt self cleaning mechanism
- No consumables are required
Our plastic filters are easily removable to allow easy maintenance of the screen to rinse it.
This filter can be conveniently used for harvesting rainwater for individual households, schools, apartment, institutions, and commercial buildings of medium and large sizes. This is also a range of filters that can meet all the needs of irrigation system in greenhouse, fields or nursery. Sieve filters have the advantage of being less expensive, while disc filters collect more dirt (greater filtration area) and are more durable.
| Model | FL-500 |
| Include | Filter (housing) and 250 microns strainer |
| Inlet size | 110 mm x 110 mm |
| Outlet size |
90 mm x 90 mm |
| Drain Outlet size |
110 mm x 110 mm |
| Screen area |
60 mesh (250 microns) |
| Operating Pressure |
0,85 PSI (0,060 kg/cm2) |
| Capacity |
480 LPM |
| Filtration area |
500 m2 |
| Filter size | 703 mm x 512 mm x 258 mm |
| Material | High density polyethylene |
| Order-driven inventory |
