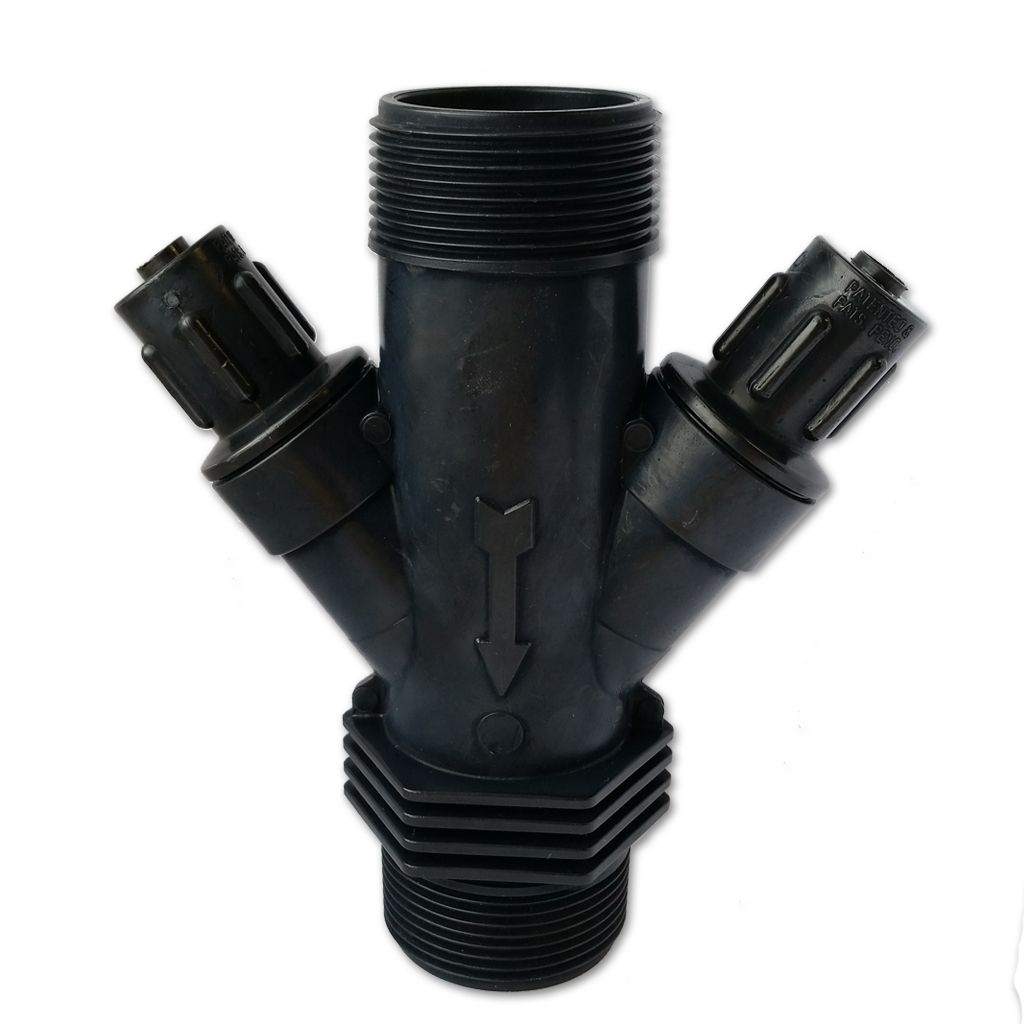

1.5" 20PSI 7-35gpm (MPT) prv pressure regulator

150-140-051200

https://ghlinc.odoo.com/web/image/product.template/3684/image_1920?unique=987bbd0
Unit(s)

50.18 $ CAD / Unit(s) 50.18 CAD 50.18 $ CAD

50.18 $ CAD

    This combination does not exist.



     Clearance product



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PRV
    Inlet x Outlet size 1 1/2'' MPT x 1 1/2'' MPT
    Preset Operating Pressure 20 PSI (1.38 bar)
    Maximum Inlet Pressure -
    Flow Range "to operate properly" 7 to 35 gpm (1590 – 7949 L/h)
    Material High quality plastic, compression spring made of stainless steel and diaphragm made of EPDM rubber.



     Clearance product



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PRV
    Inlet x Outlet size 1 1/2'' MPT x 1 1/2'' MPT
    Preset Operating Pressure 20 PSI (1.38 bar)
    Maximum Inlet Pressure -
    Flow Range "to operate properly" 7 to 35 gpm (1590 – 7949 L/h)
    Material High quality plastic, compression spring made of stainless steel and diaphragm made of EPDM rubber.

    Guarantee No guarantee
    Clearance: condition New
    Cause of liquidation Discontinued model: when all units of this product will be sold, this item will no longer be available.
    Outer tube diameter (O.D.) 1 1/2 "
    Connection type Male pipe thread (MPT)
    Flow 7 - 35 gpm
    Preset Pressure 20 PSI
    Connection type MPT x MPT
