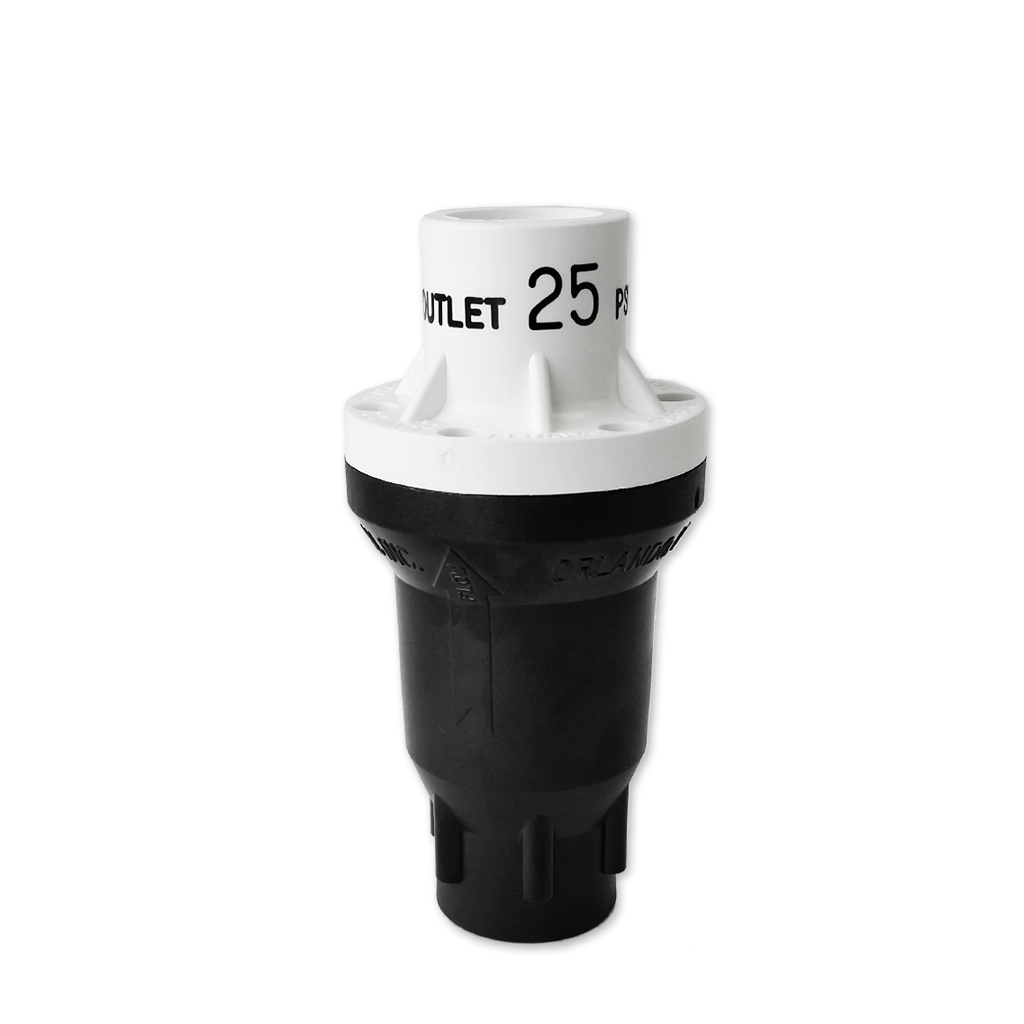

3/4" 25PSI 2-20gpm (FPT) pressure regulator
150-140-061400
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
jusqu'à 3 semaines
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
150-140-061400
Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.
The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.
| Model | PMR-MF-25 |
| Inlet x Outlet size | 3/4'' FPT x 3/4'' FPT |
| Preset Operating Pressure | 25 PSI (1.72 bar) |
| Maximum Inlet Pressure | 100 PSI (6.89 bar) |
| Flow Range "to operate properly" | 2 to 20 gpm (454 – 4542 L/h) |
| Material | All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws. |
| Outer tube diameter (O.D.) | 3/4 " |
| Inventory stocked | |
| Flow | 2 - 20 gpm |
| Connection type | Female pipe thread (FPT) |
| Preset Pressure | 25 PSI |
| Connection type | FPT x FPT |
Submit a Ticket
Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.
The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.
| Model | PMR-MF-25 |
| Inlet x Outlet size | 3/4'' FPT x 3/4'' FPT |
| Preset Operating Pressure | 25 PSI (1.72 bar) |
| Maximum Inlet Pressure | 100 PSI (6.89 bar) |
| Flow Range "to operate properly" | 2 to 20 gpm (454 – 4542 L/h) |
| Material | All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws. |
