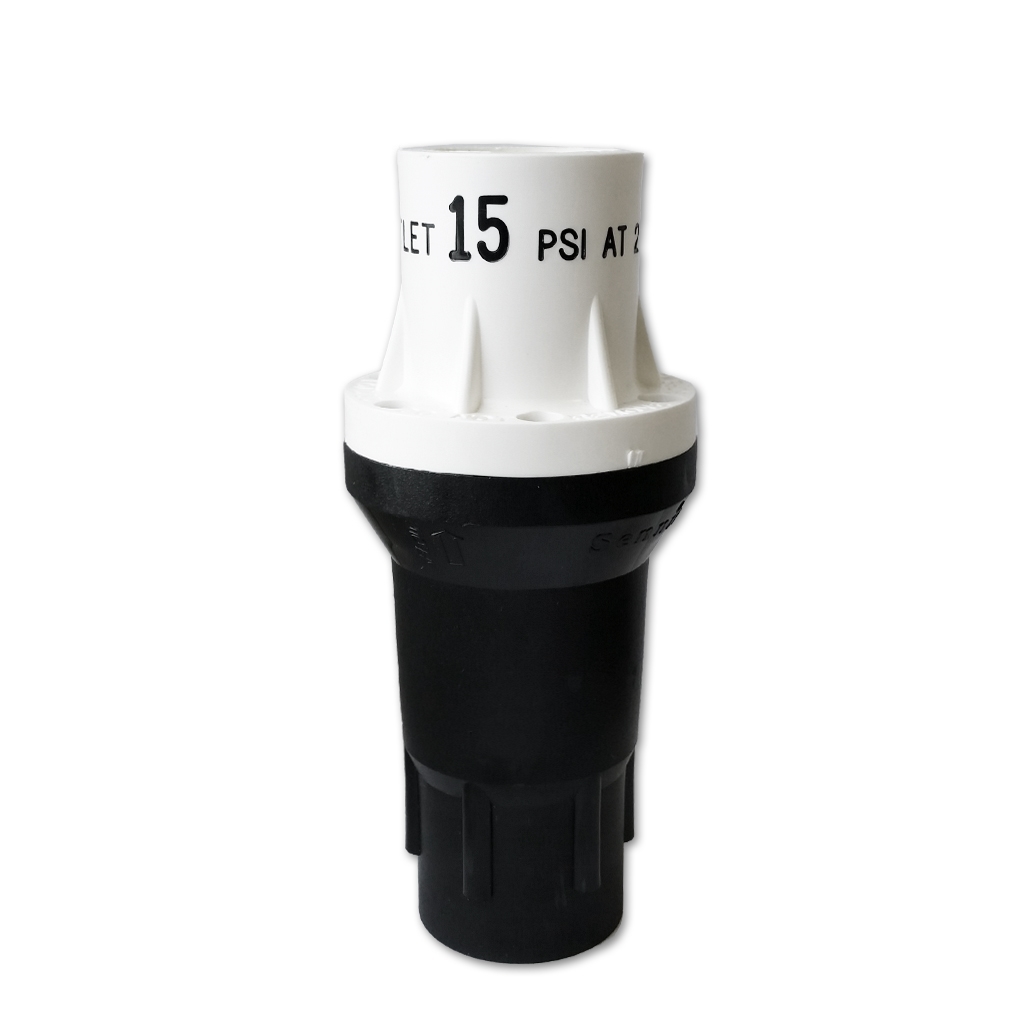

1" 15PSI 2-20gpm (FPT) pressure regulator

150-140-062100

Call For Price https://ghlinc.odoo.com/web/image/product.template/3700/image_1920?unique=32deb63

    This combination does not exist.


    Availability: backordered
    Shipping time if backordered:: jusqu'à 3 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PMR-MF-15
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Preset Operating Pressure 15 PSI (1.03 bar)
    Maximum Inlet Pressure 95 PSI (6.55 bar)
    Flow Range "to operate properly" 2 to 20 gpm (454 – 4542 L/h)
    Material All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.



    Our pressure regulators operate without restriction until the pressure of the liquid inside the pipes reaches the desired setting so that the other elements of the irrigation system function optimally. They are designed to reduce only the pressure and do not affect the flow of water. No adjustments required.



    The pressure regulator is usually installed after the other elements of the irrigation system which can cause a drop in water pressure by friction such as valves and filters. In addition, an arrow on the regulator indicates the direction in which water should flows into the irrigation system.



    Model PMR-MF-15
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Preset Operating Pressure 15 PSI (1.03 bar)
    Maximum Inlet Pressure 95 PSI (6.55 bar)
    Flow Range "to operate properly" 2 to 20 gpm (454 – 4542 L/h)
    Material All Senninger pressure regulators are made of thermoplastic resin with a compression spring and stainless steel screws.

    Outer tube diameter (O.D.) 1 "
    Order-driven inventory
    Flow 2 - 20 gpm
    Preset Pressure 15 PSI
    Connection type Female pipe thread (FPT)
    Connection type FPT x FPT
