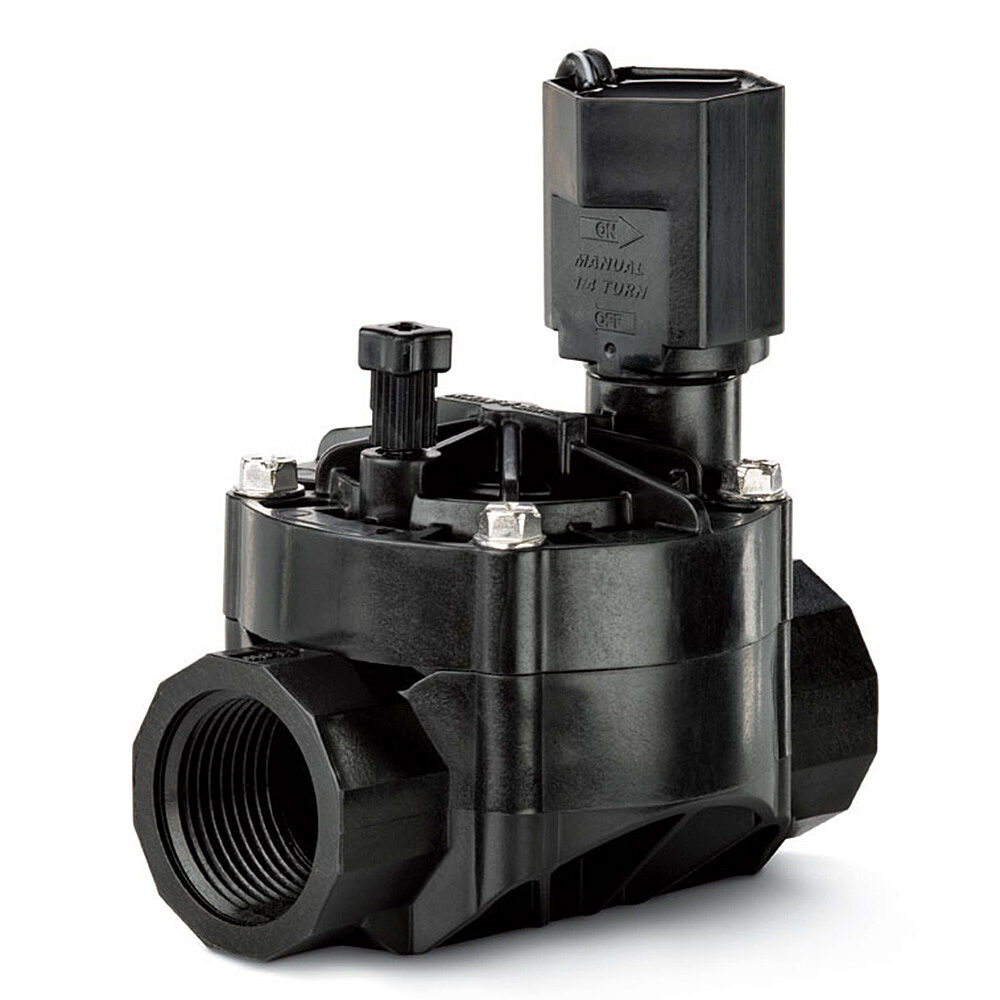

Electrical valve 24Vac 1" FPT black (right) 100HV Rain Bird

150-150-011390

https://ghlinc.odoo.com/web/image/product.template/12240/image_1920?unique=e66f869

32.62 $ CAD 32.62 CAD 32.62 $ CAD

32.62 $ CAD

    This combination does not exist.



    Availability: in stock
    Shipping time if backordered:: jusqu'à 2 semaines
    In case of backorder:: Only replenished IF YOU ORDER IT



    Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.



    Model 100-HV (HV serie)
    Configuration Straight configuration (globe)
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Flow 0.2 to 30 gpm
    Pressure 15 to 150 PSI (1.0 to 10.4 bar)
    Maximum water temperature 43°C (110°F)
    Electrical specifications

    24 VAC 50/60 Hz (cycles per second) solenoid

    Inrush current: 0.290 A

    Holding current: 0.091 A

    Coil resistance: 70 to 85 Ohms

    Size 5.68" x 3.1" x 4.5" (14.4 x 7.9 x 11.43 cm)



    Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.



    Model 100-HV (HV serie)
    Configuration Straight configuration (globe)
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Flow 0.2 to 30 gpm
    Pressure 15 to 150 PSI (1.0 to 10.4 bar)
    Maximum water temperature 43°C (110°F)
    Electrical specifications

    24 VAC 50/60 Hz (cycles per second) solenoid

    Inrush current: 0.290 A

    Holding current: 0.091 A

    Coil resistance: 70 to 85 Ohms

    Size 5.68" x 3.1" x 4.5" (14.4 x 7.9 x 11.43 cm)

    Outer tube diameter (O.D.) 1 "
    Order-driven inventory
    Connection type Female pipe thread (FPT)
    Connection type FPT x FPT
