Electrical valve 24Vac 3/4" FPT black (right) Rain Bird
150-150-081000
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
150-150-081000

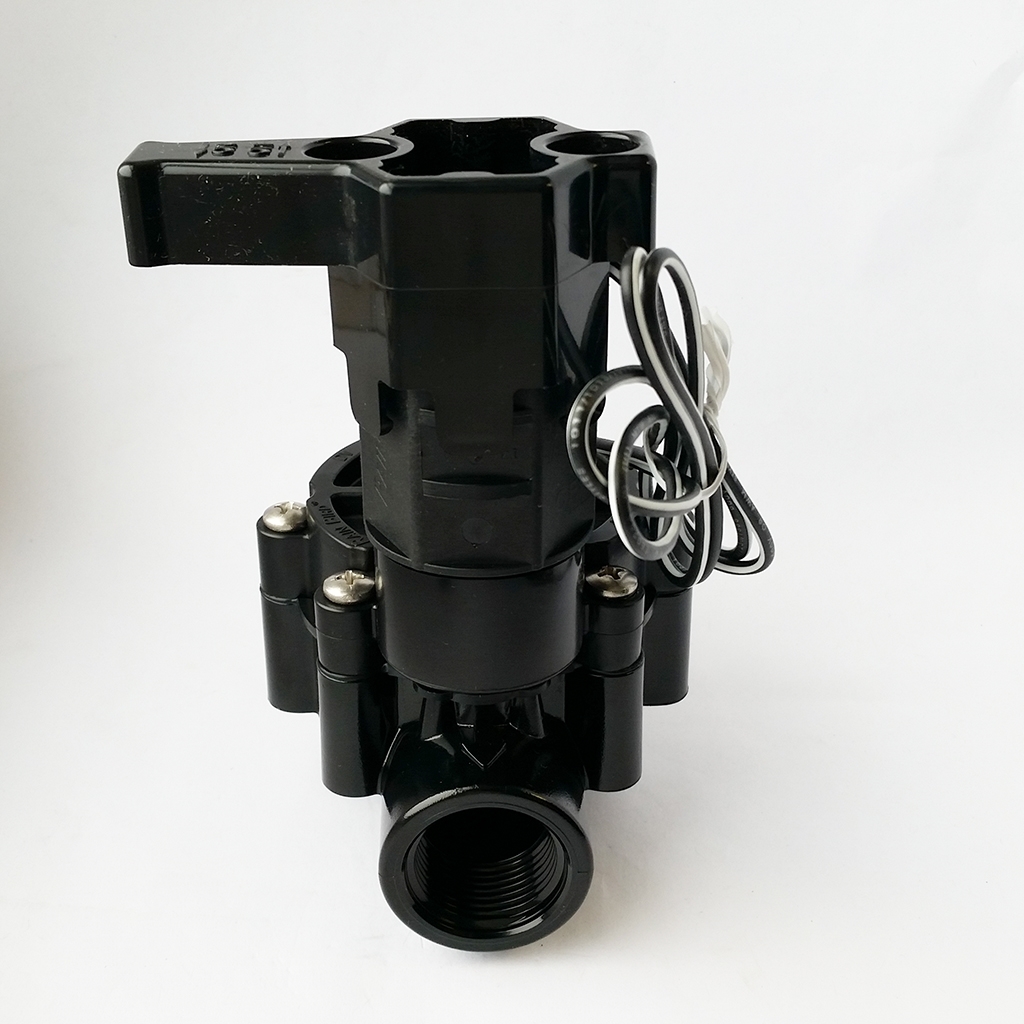

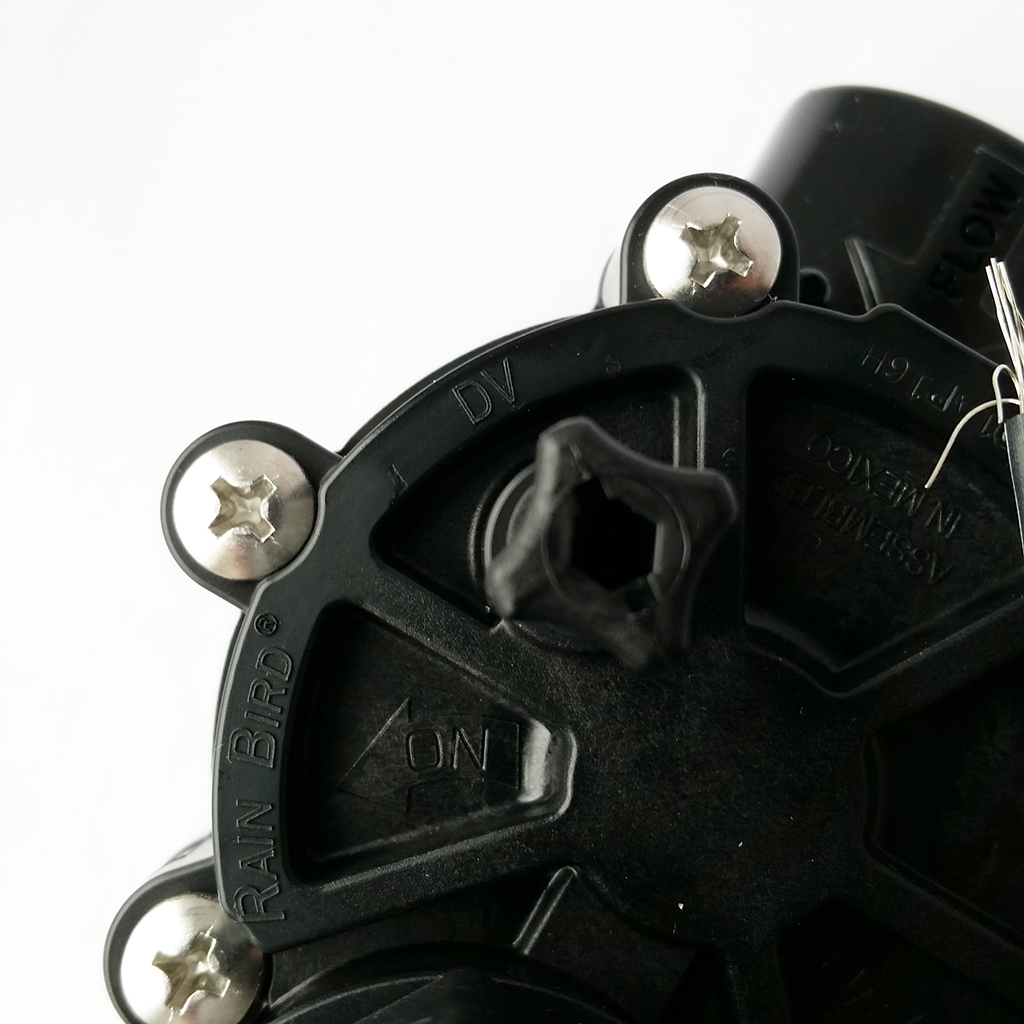

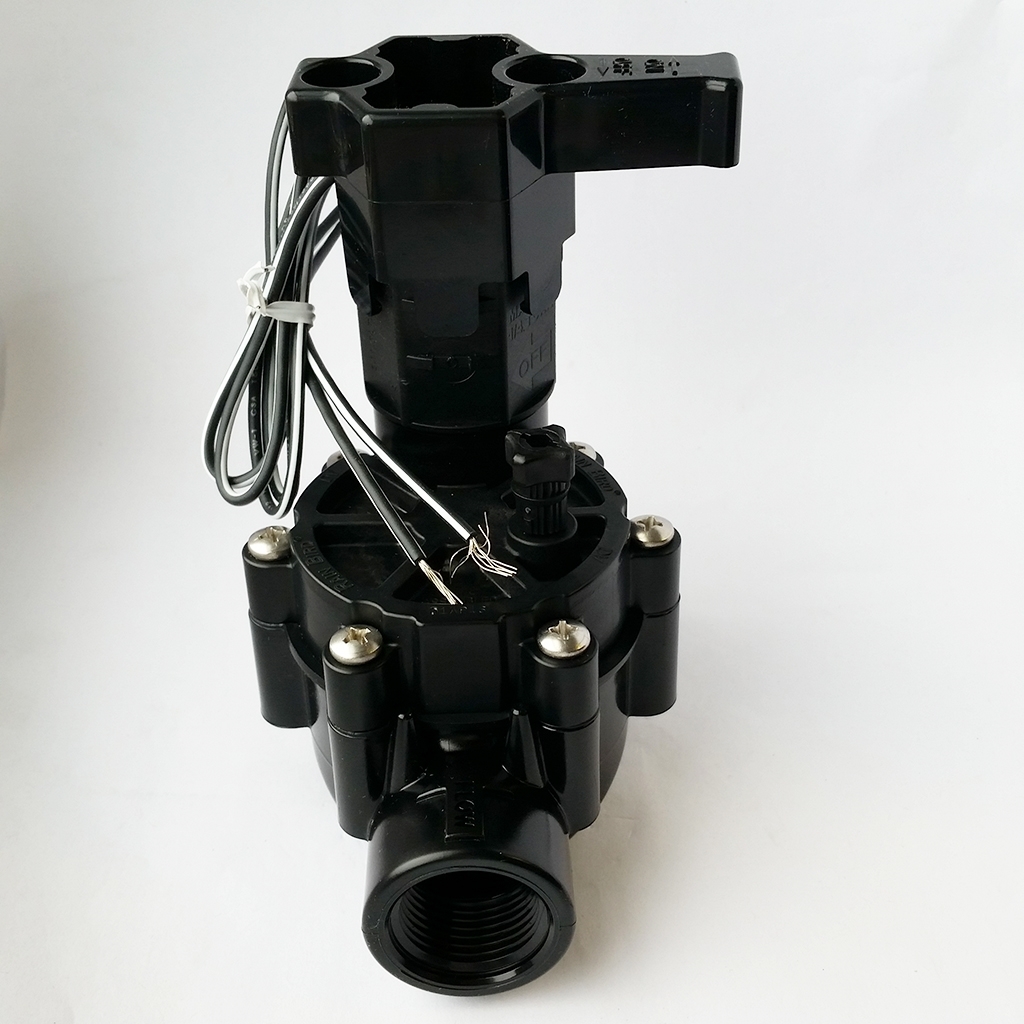

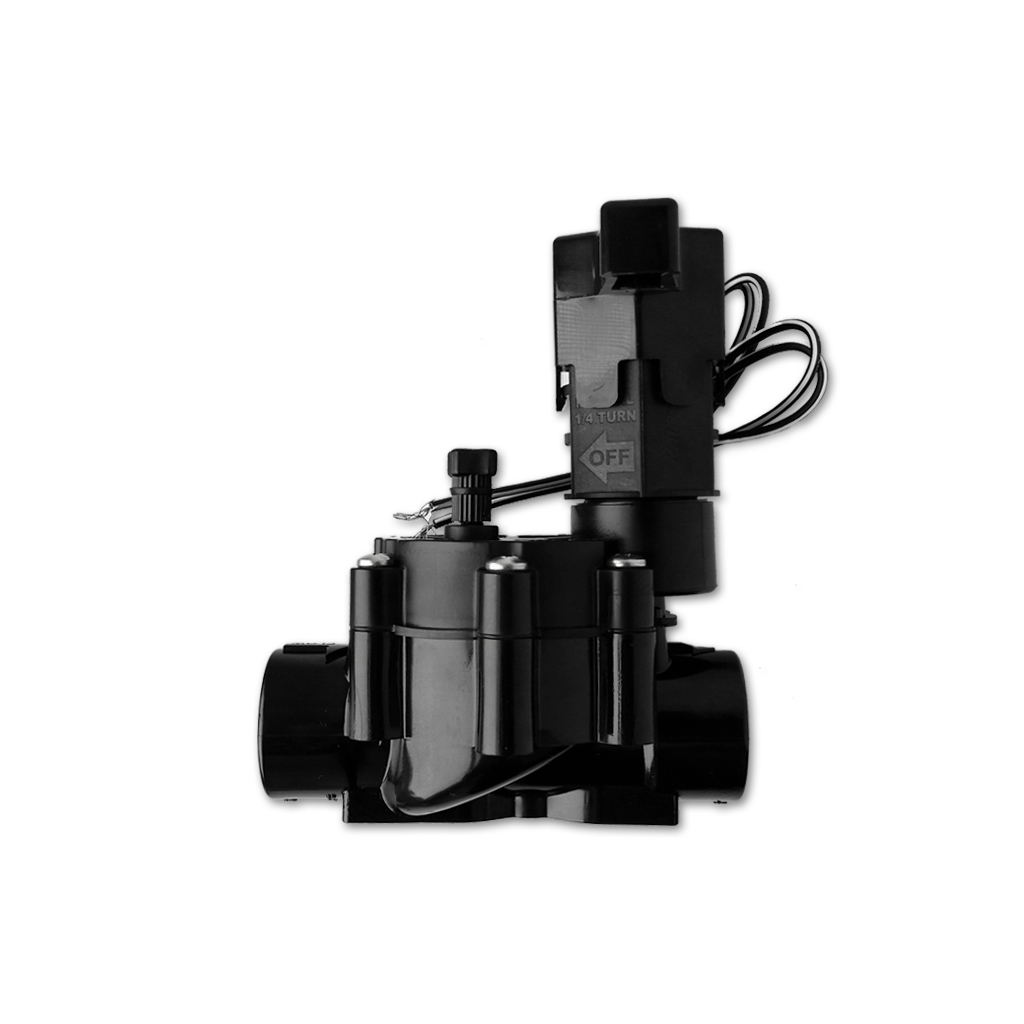

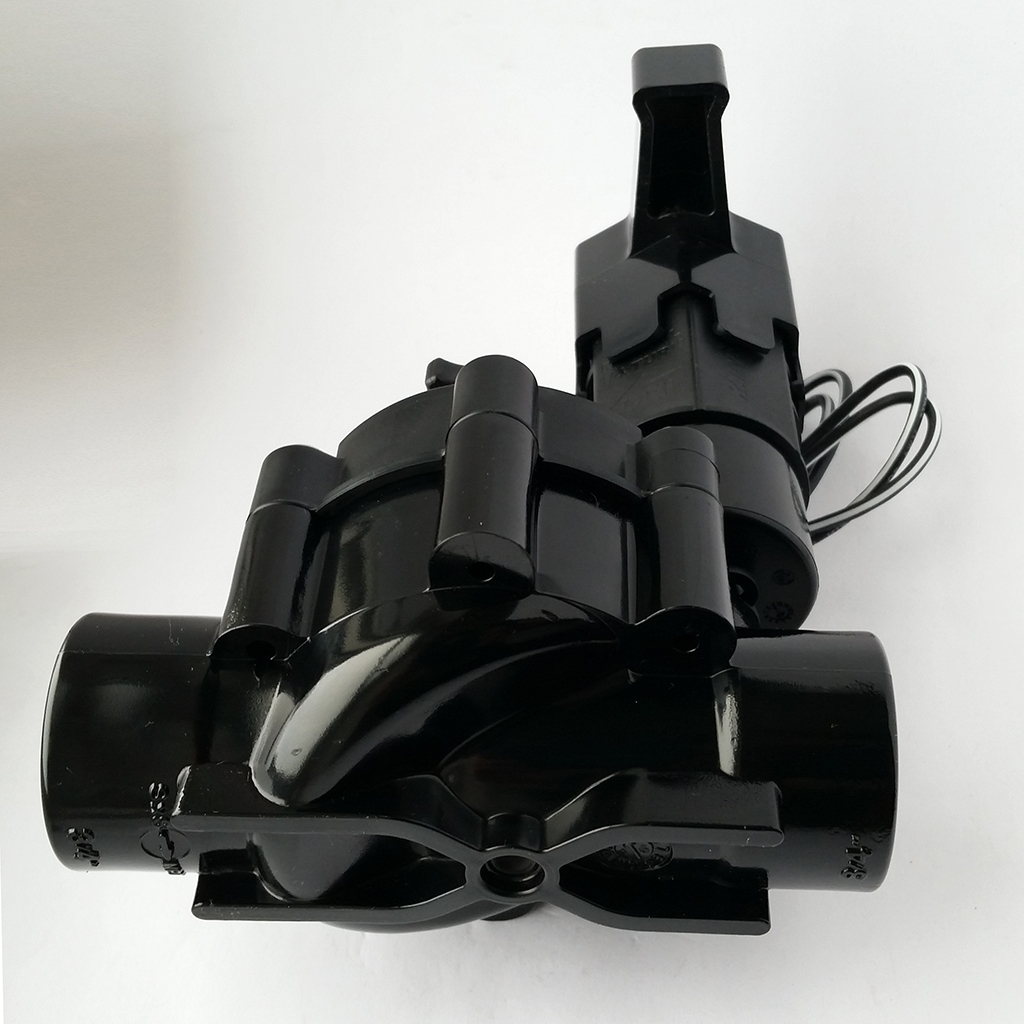

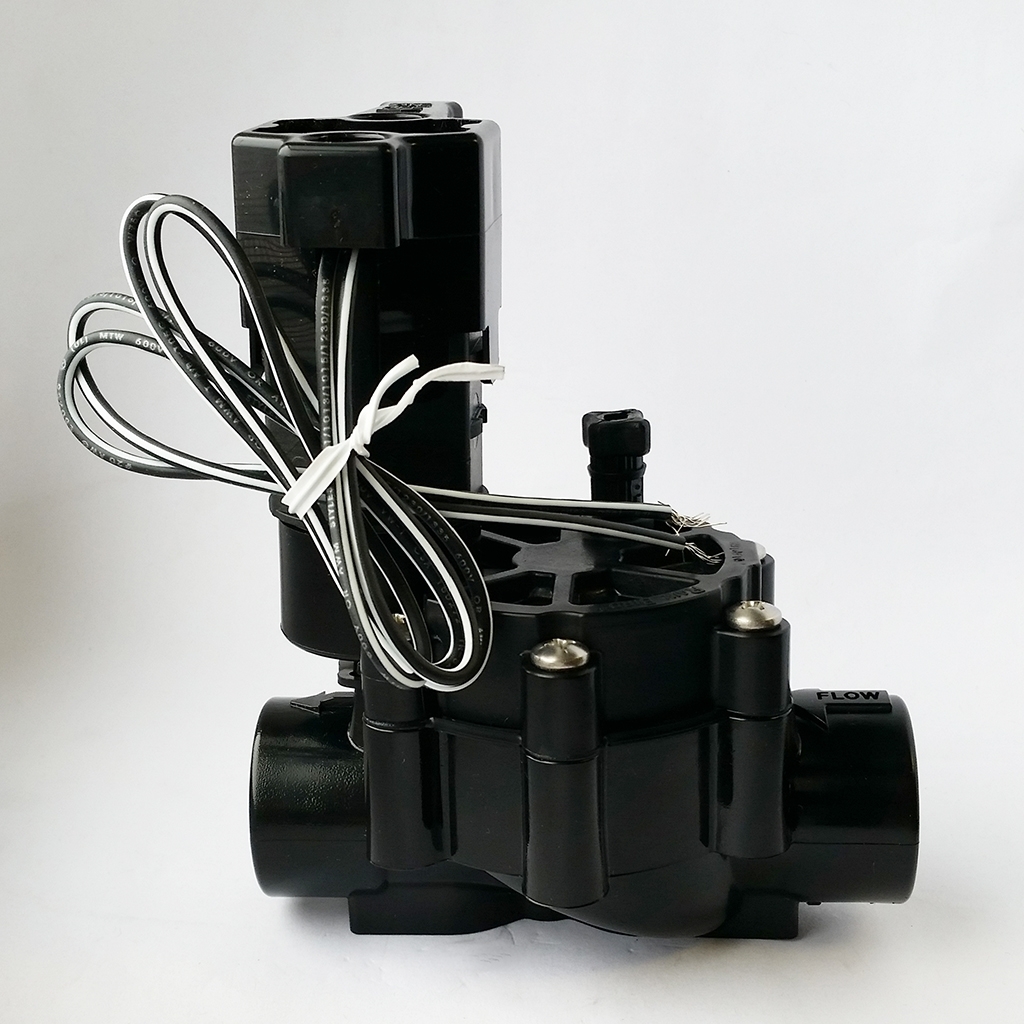

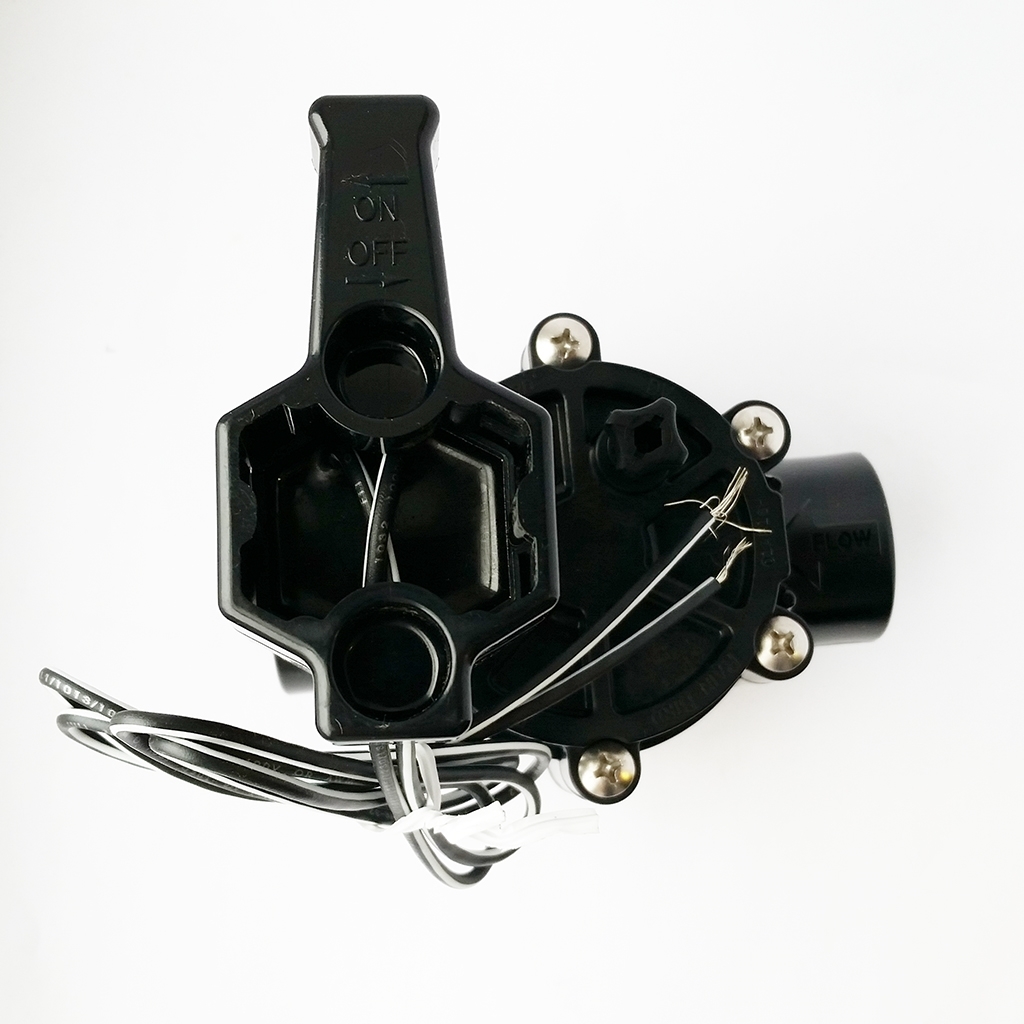

Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 75-DV (DV serie) |
| Configuration | Straight configuration (globe) |
| Inlet x Outlet size | 3/4'' FPT x 3/4'' FPT |
| Flow | 0.2 to 22 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.45 A Holding current: 0.25 A Coil resistance: 38 Ohms |
| Size | 5 1/2" x 3 1/3" x 4 3/8" (13.4 x 8.4 x 11.1 cm) |
| Outer tube diameter (O.D.) | 3/4 " |
| Inventory stocked | |
| Connection type | Female pipe thread (FPT) |
| Connection type | FPT x FPT |
Submit a Ticket
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 75-DV (DV serie) |
| Configuration | Straight configuration (globe) |
| Inlet x Outlet size | 3/4'' FPT x 3/4'' FPT |
| Flow | 0.2 to 22 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.45 A Holding current: 0.25 A Coil resistance: 38 Ohms |
| Size | 5 1/2" x 3 1/3" x 4 3/8" (13.4 x 8.4 x 11.1 cm) |
