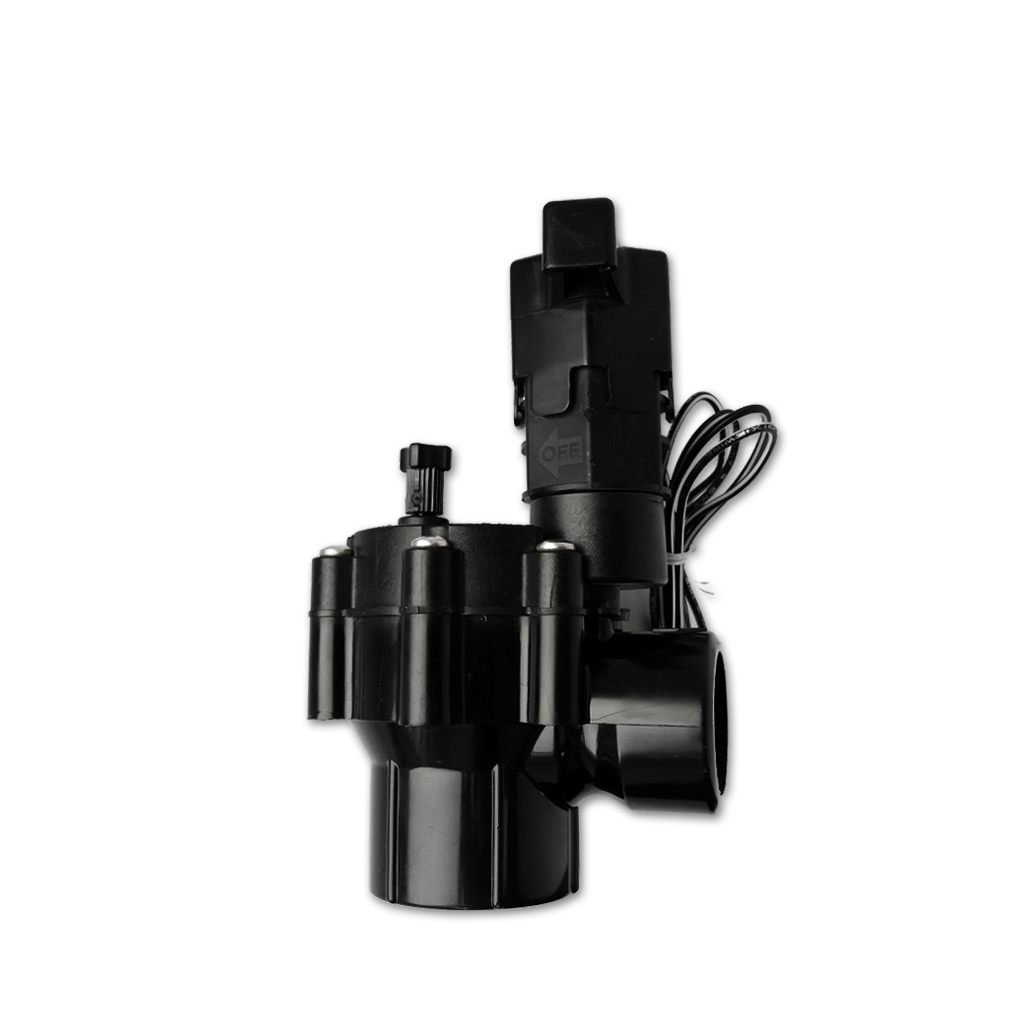

Electrical valve 24Vac 1" FPT black (angle) Rain Bird
150-150-081500
Disponibilité:
in stock
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
150-150-081500
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 100-DV-A (DV serie) |
| Configuration | Angle configuration |
| Inlet x Outlet size | 1'' FPT x 1'' FPT |
| Flow | 0.2 to 40 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.45 A Holding current: 0.25 A Coil resistance: 38 Ohms |
| Size | 6" x 3 1/3" x 3 3/4" (15 x 8.4 x 9.5 cm) |
| Outer tube diameter (O.D.) | 1 " |
| Order-driven inventory | |
| Connection type | Female pipe thread (FPT) |
| Connection type | FPT x FPT |
Submit a Ticket
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 100-DV-A (DV serie) |
| Configuration | Angle configuration |
| Inlet x Outlet size | 1'' FPT x 1'' FPT |
| Flow | 0.2 to 40 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.45 A Holding current: 0.25 A Coil resistance: 38 Ohms |
| Size | 6" x 3 1/3" x 3 3/4" (15 x 8.4 x 9.5 cm) |
