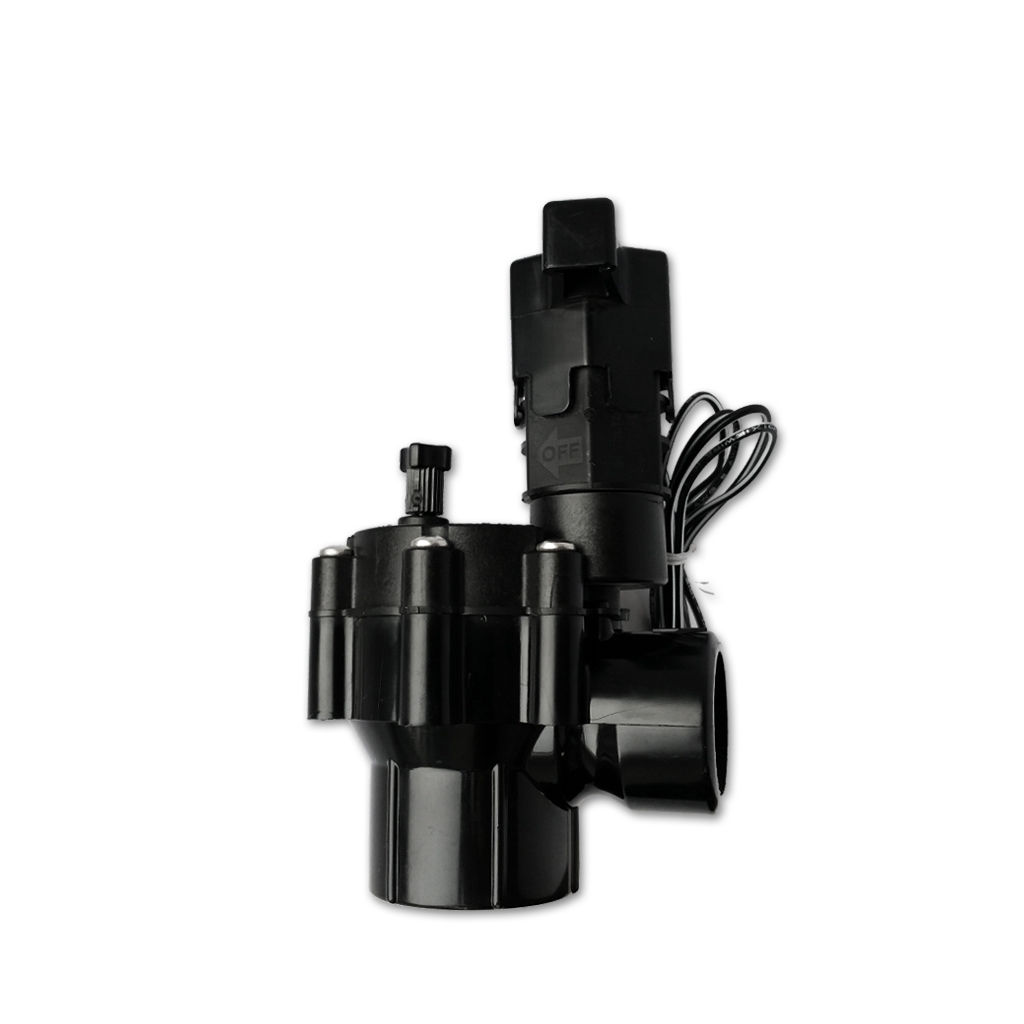

Electrical valve 24Vac 1" FPT black (angle) Rain Bird

150-150-081500

https://ghlinc.odoo.com/web/image/product.template/3824/image_1920?unique=867cd7c

37.35 $ CAD 37.35 CAD 37.35 $ CAD

37.35 $ CAD

    This combination does not exist.



    Availability: in stock
    In case of backorder:: Only replenished IF YOU ORDER IT



    Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.



    Model 100-DV-A (DV serie)
    Configuration Angle configuration
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Flow 0.2 to 40 gpm
    Pressure 15 to 150 PSI (1.0 to 10.4 bar)
    Maximum water temperature 43°C (110°F)
    Electrical specifications

    24 VAC 50/60 Hz (cycles per second) solenoid

    Inrush current: 0.45 A

    Holding current: 0.25 A

    Coil resistance: 38 Ohms

    Size 6" x 3 1/3" x 3 3/4" (15 x 8.4 x 9.5 cm)



    Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.



    Model 100-DV-A (DV serie)
    Configuration Angle configuration
    Inlet x Outlet size 1'' FPT x 1'' FPT
    Flow 0.2 to 40 gpm
    Pressure 15 to 150 PSI (1.0 to 10.4 bar)
    Maximum water temperature 43°C (110°F)
    Electrical specifications

    24 VAC 50/60 Hz (cycles per second) solenoid

    Inrush current: 0.45 A

    Holding current: 0.25 A

    Coil resistance: 38 Ohms

    Size 6" x 3 1/3" x 3 3/4" (15 x 8.4 x 9.5 cm)

    Outer tube diameter (O.D.) 1 "
    Order-driven inventory
    Connection type Female pipe thread (FPT)
    Connection type FPT x FPT
