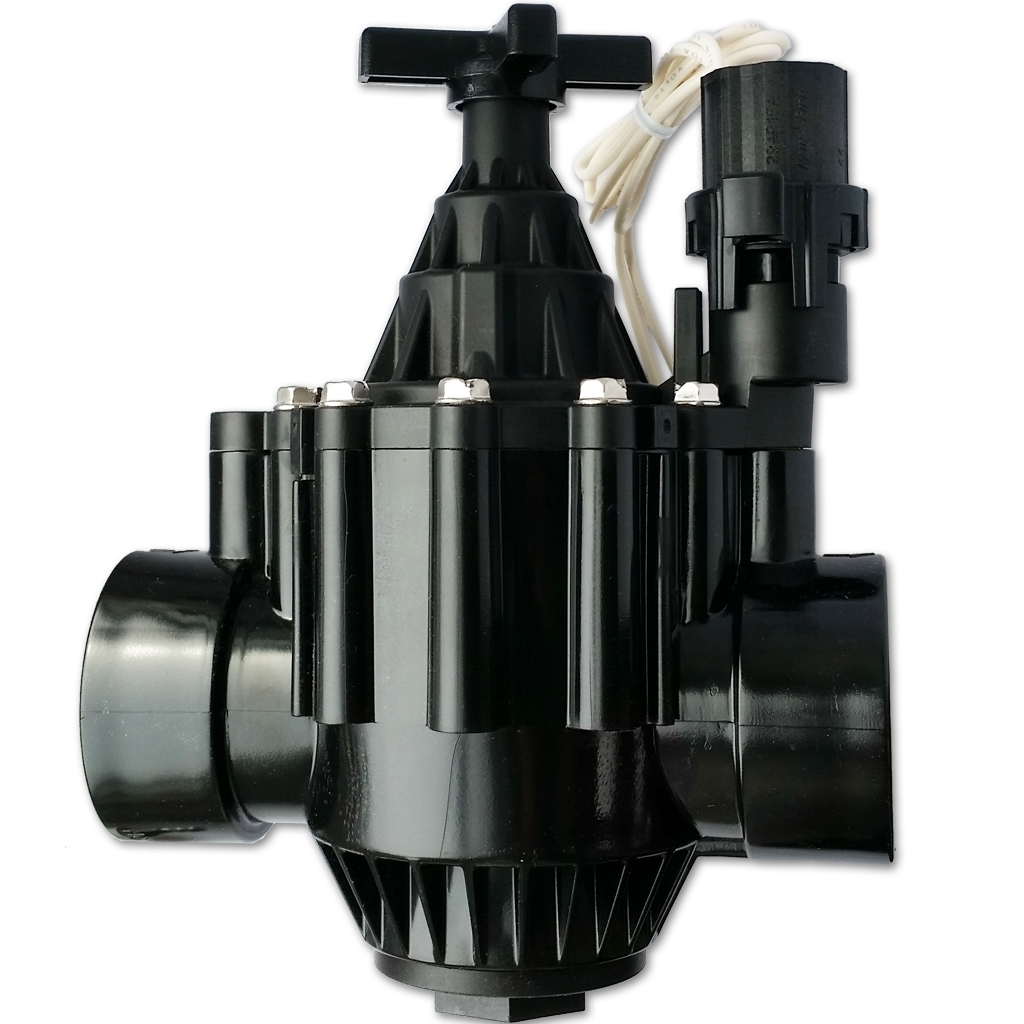

Electrical valve 24Vac 2" FPT black (right and angle) Rain Bird
150-150-081900
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
up to 2 weeks
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
150-150-081900
Electrical valve with solenoid and diaphragm. Made of PVC plastic, this valve installs on an irrigation system and must be connected to a controller using an electric wire. It is also possible to manually open/close the valve by turning a quarter turn of the solenoid using the handle marked "ON / OFF" on the top.
| Model | 200-PGA (PGA serie) |
| Configuration | Globe and angle configuration for flexibility in design and installation (A special plug (included) allows to change the configuration if necessary) |
| Inlet x Outlet size | 2'' FPT x 2'' FPT |
| Flow | 2.2 to 150 gpm |
| Pressure | 15 to 150 PSI (1.0 to 10.4 bar) |
| Maximum water temperature | 43°C (110°F) |
| Electrical specifications |
24 VAC 50/60 Hz (cycles per second) solenoid Inrush current: 0.41A (9.9VA) Holding current: 0.14A (3.43VA) Coil resistance: 30-39 Ohms |
| Size | 10" x 7 3/4" x 5" (25.4 x 23.5 x 12.7 cm) |
| Inventory stocked | |
| In Stock | In Stock |
| Outer tube diameter (O.D.) | 2 " |
| Connection type | Female pipe thread (FPT) |
| Connection type | FPT x FPT |
