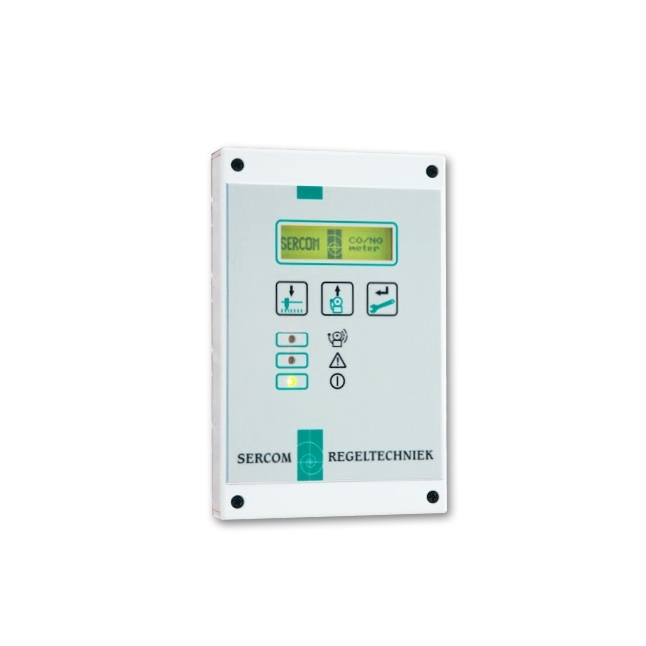

SERCOM CO detector for chimney (complete unit with controller)
160-110-031600
Délai d’expédition si en rupture de stock:
2-6 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-110-031600
The SERCOM carbon monoxide detector (CO) is installed in the CO2 circuit leaving the chimney of a greenhouse heating system to warn of the presence of this harmful gas (CO) mixed with the carbon dioxide (CO2) that results from the combustion.
|
Detector's measuring range
|
0-300 ppm of CO |
|
Alarm limit setting
|
0-100 ppm of CO |
|
Detector accuracy
|
± 5% of measuring value at 20°C |
|
Measuring outlets
|
0-20 mA or 4-20 mA |
|
Alarm contact
|
Potential free make / break contact (max. 30 VAC/DC) |
|
Outlet release relay CO2 unit
|
24 Volt DC |
|
Voltage
|
24 Volt AC = 10%, 50-60 Hz |
|
Power consumption
|
4.6 Watt , 1.8 Watt (nominal) |
| Control unit size | 21 cm x 13.5 cm x 3.5 cm |
| Detector mechanism size | 52 cm x 20 cm x 10.5 cm |
| Control | Stand-alone |
| Control | By computer |
| Control | Stand-alone, or by computer |
| Order-driven inventory | |
| Sensor Type | CO |
