LTA level transducer 10PSI 40'cable / 23.1'deep
160-110-061200
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Only replenished IF YOU ORDER IT
Internal Reference:
160-110-061200

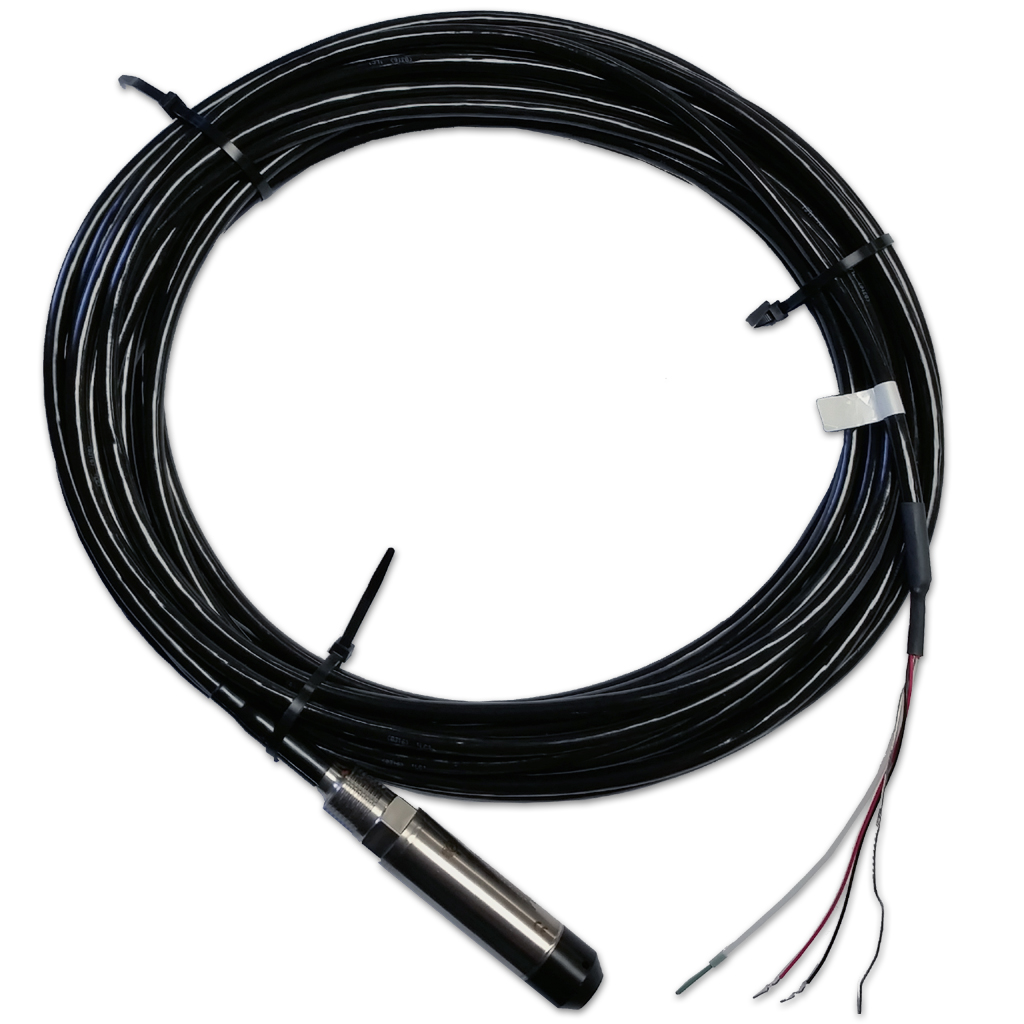

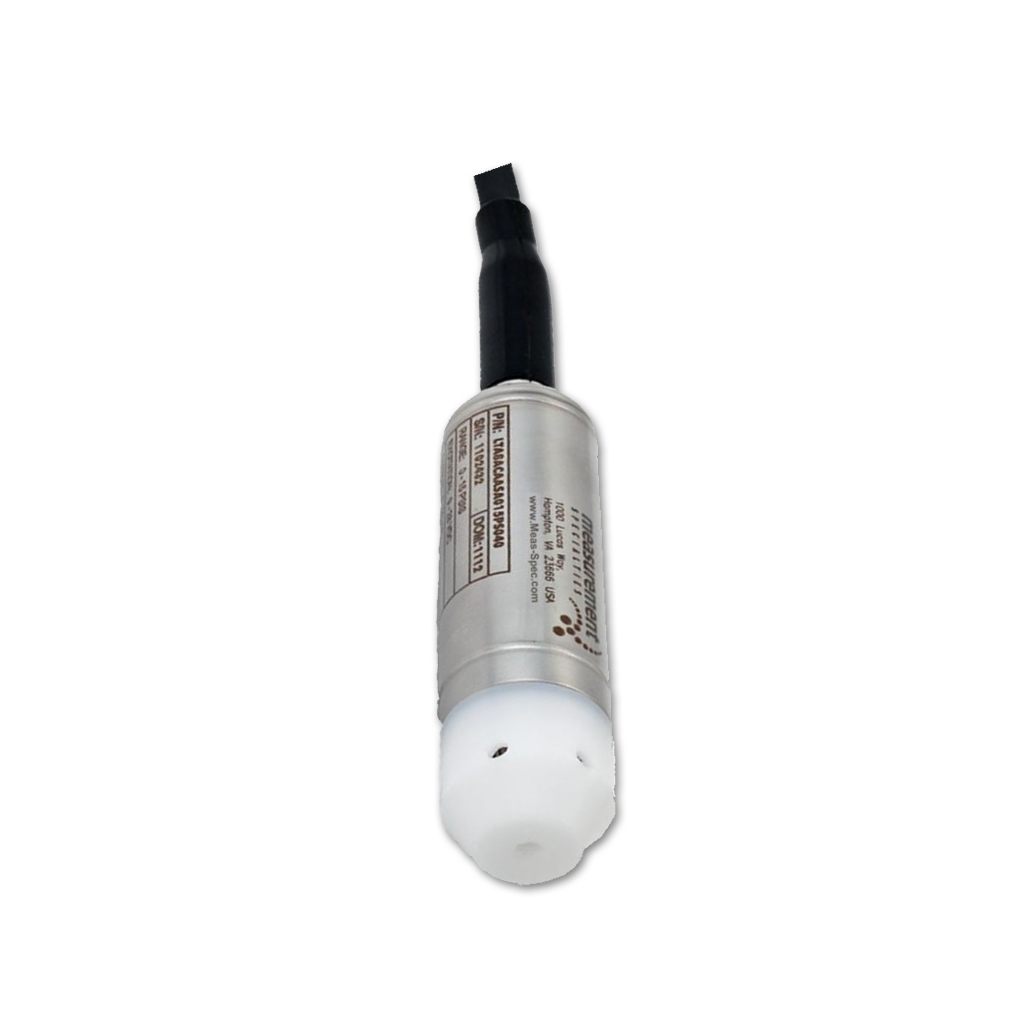

The LTA level transducer is a probe that can be used to assess the water level of a tank This submersible probe is specifically designed to meet the harsh environments encountered in liquid level and control measurements.
This liquid level probe can be installed inside a water or fertilizer solution tank and then must be connected to a controller, an Argus system or antother greenhouse computer that can read it and then control a related equipment. As an example, the controller can then actuate and / or stop a pump to fill a tank to a precise level.
This probe is drop-in type, so very easy to install.
|
Switch type
|
Submersible hydrostatic level transducer |
|
Pressure range (PSI)
|
0-10 PSI |
|
Maximum water height (feet)
|
23.1' (693cm) |
|
Accuracy
|
±0.1% |
|
Operation temperature
|
-20 to 60 ºC |
|

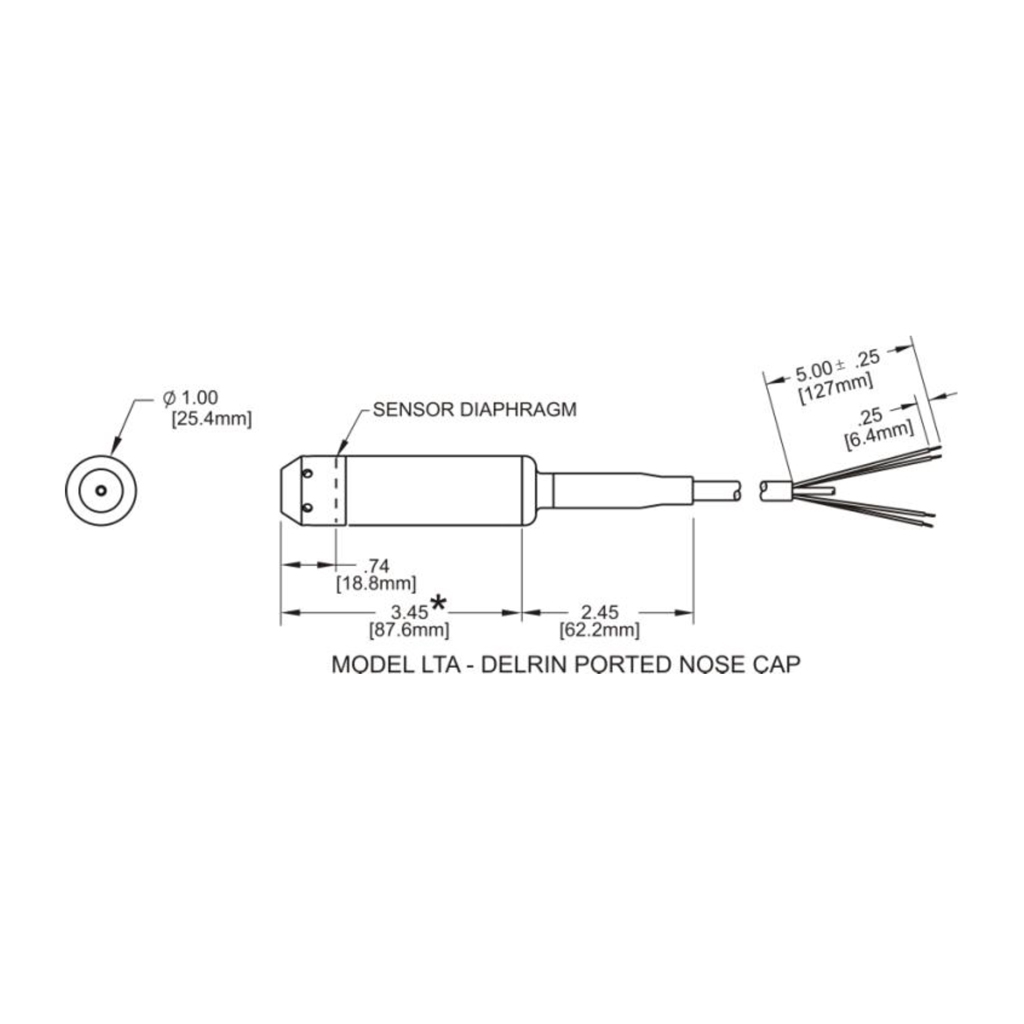

Size (float)
|
25.4 mm (1") wide x 149.8 mm (5.9'') height |
|
Wire lenght
|
127 mm (5") |
|
Wire type
|
22 AWG |
|
Material (float)
|
Stainless steel body 316 |
| Control | By computer |
| Order-driven inventory | |
| Sensor Type | Liquid level |
Submit a Ticket
The LTA level transducer is a probe that can be used to assess the water level of a tank This submersible probe is specifically designed to meet the harsh environments encountered in liquid level and control measurements.
This liquid level probe can be installed inside a water or fertilizer solution tank and then must be connected to a controller, an Argus system or antother greenhouse computer that can read it and then control a related equipment. As an example, the controller can then actuate and / or stop a pump to fill a tank to a precise level.
This probe is drop-in type, so very easy to install.
|
Switch type
|
Submersible hydrostatic level transducer |
|
Pressure range (PSI)
|
0-10 PSI |
|
Maximum water height (feet)
|
23.1' (693cm) |
|
Accuracy
|
±0.1% |
|
Operation temperature
|
-20 to 60 ºC |
|
Size (float)
|
25.4 mm (1") wide x 149.8 mm (5.9'') height |
|
Wire lenght
|
127 mm (5") |
|
Wire type
|
22 AWG |
|
Material (float)
|
Stainless steel body 316 |
