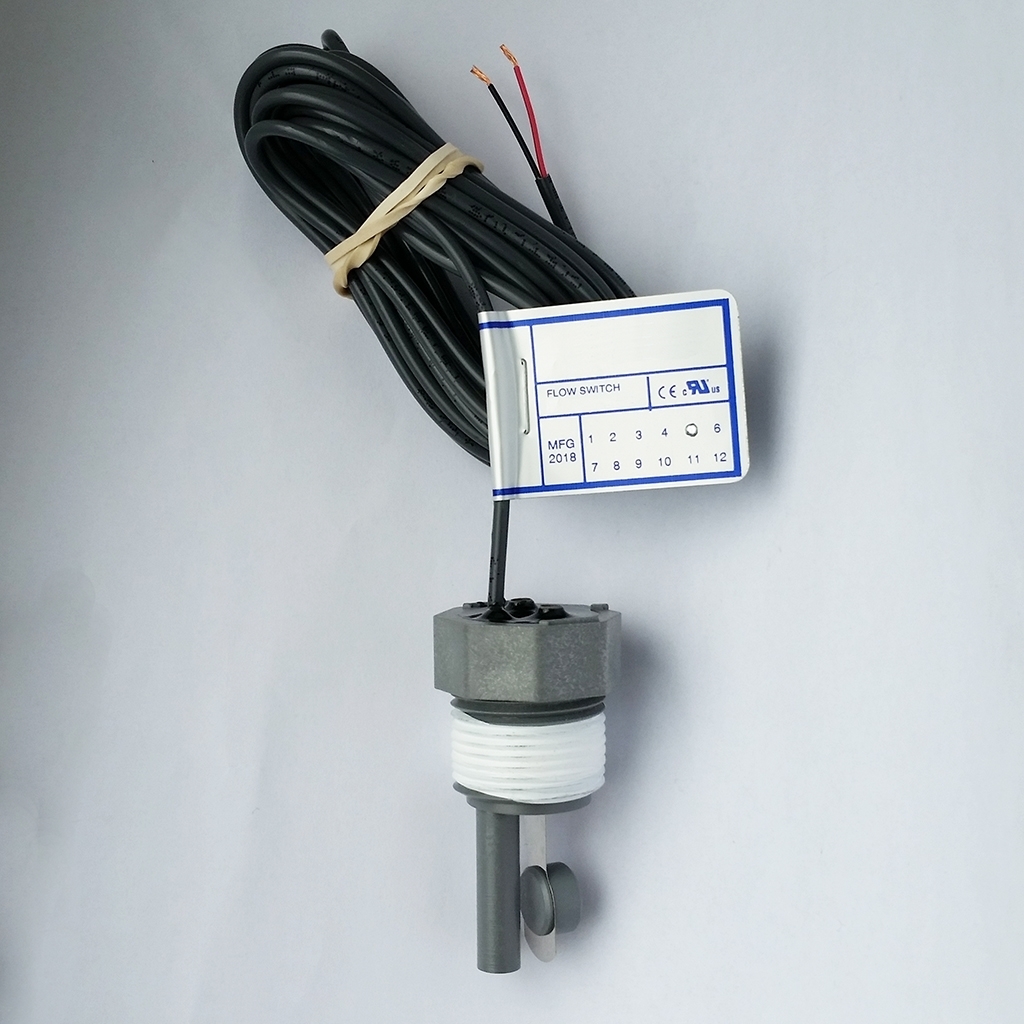

Flowswitch 3/4" MPT
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Usually kept in stock, will be available soon
This flow switch is screwed on a tee connector with a 3/4 "output (side" c ") The other side of the tee fitting (" a "and" b " must be of the size of the pipe in which the fluid passes. The length of the flow switch paddle must be selected according to the size of the hose. It detects the movement or lack of movement of the liquid.
|
Connection
|
3/4" MPT |
|
Minimum flow rate detected for different pipe diameter
|
3/4" - min. 0.9 gpm (3.4 L/m) 1" - min. 1.1 gpm (4.2 L/m) 1 1/2" - min. 2.8 gpm (10.6 L/m) 2" - min. 4.9 gpm (18.6L/m) 3" - min. 11.0 gpm (41.6 L/m) 4" - min. 19.6 gpm (74.1L/m) 5" - min. 30.6 gpm (115.7 L/m) 6" - min. 135 gpm (510.3 L/m) |
|
Working Temperature
|
180˚F (83˚C) Maximum |
|
Working Pressure
|
200 PSI @ 70 ° F |
|
Electrical (Reed) Switch
|
SPNO signal Max: AC / DC 30 Volts / 0.1Amp
|
|
Enclosure
|
NEMA 4X / IP 66 |
|
Material
|
Body in Noryl® (PPO) (10% fiberglass) 316 stainless steel paddle Epoxy seal |
