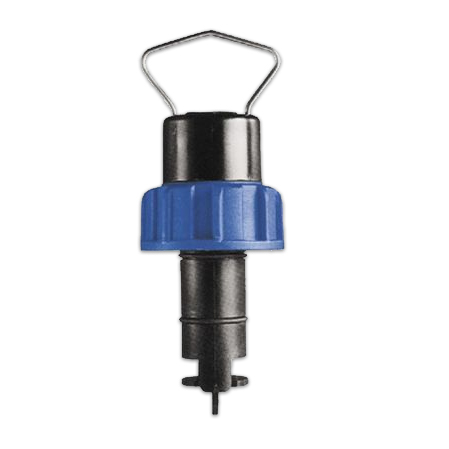

Flowmeter Paddlewheel GF Signet 3-2536-P0 pp body PVDF rotor pin titanium
160-110-063600
Thank you for information, we will get back to you asap.
Failure in product call for price.
Disponibilité:
in stock
Délai d’expédition si en rupture de stock:
jusqu'à 2 semaines
En cas de rupture de stock:
Usually kept in stock, will be available soon
Internal Reference:
160-110-063600
Insertion paddlewheel sensors.
Type 2536 Rotor-X, Standard mount paddlewheel.
- Operating range: 0.1 to 6 m/s, 0.3 to 20 ft/s
- Open collector output
- Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in
- Max Pressure rating: PP 12.5 bar @ 20 °C, 180 psi @ 68 °F PVDF 14 bar @ 20 °C, 200 psi @ 68 °F
- Rotor: PVDF
- Compatibility: 8900, 9900, 9900-1BC, 9950
- Power source: <20mA @ 3.3 to 24 VDC
- *Only Signet installation fittings
| Order-driven inventory |
Submit a Ticket
Insertion paddlewheel sensors.
Type 2536 Rotor-X, Standard mount paddlewheel.
- Operating range: 0.1 to 6 m/s, 0.3 to 20 ft/s
- Open collector output
- Installs into pipe sizes: DN15 to DN900, 0.5 to 36 in
- Max Pressure rating: PP 12.5 bar @ 20 °C, 180 psi @ 68 °F PVDF 14 bar @ 20 °C, 200 psi @ 68 °F
- Rotor: PVDF
- Compatibility: 8900, 9900, 9900-1BC, 9950
- Power source: <20mA @ 3.3 to 24 VDC
- *Only Signet installation fittings
