18" SR tensiometer + RSU-Voltage 0-100 kPa (porous ceramic)
160-110-071800
- Tensiometer_Irrometer_Model_SR-FT_V2014_03_EN.pdf
- Tensiometer_Irrometer_Automation_wire_extension-FT_V2016-10_EN.pdf
- Tensiometer_Irrometer_Automation_RSU-V-Manual_V2016-10-21_EN.pdf
- Tensiometer_Irrometer_Reference_book-Manual_V2015-02_EN.pdf
- Tensiometer_Irrometer_Quick_installation_guide_V2012-02_EN.pdf
- Tensiometer_Irrometer_Recommendations_sensor_interpretations_V2013-03_EN.pdf
- Tensiometer_Irrometer_Irrigation_design-Manual_V2006-01-20_EN.pdf
Availability:
backordered
Shipping time if backordered::
jusqu'à 2 semaines
In case of backorder::
Only replenished IF YOU ORDER IT

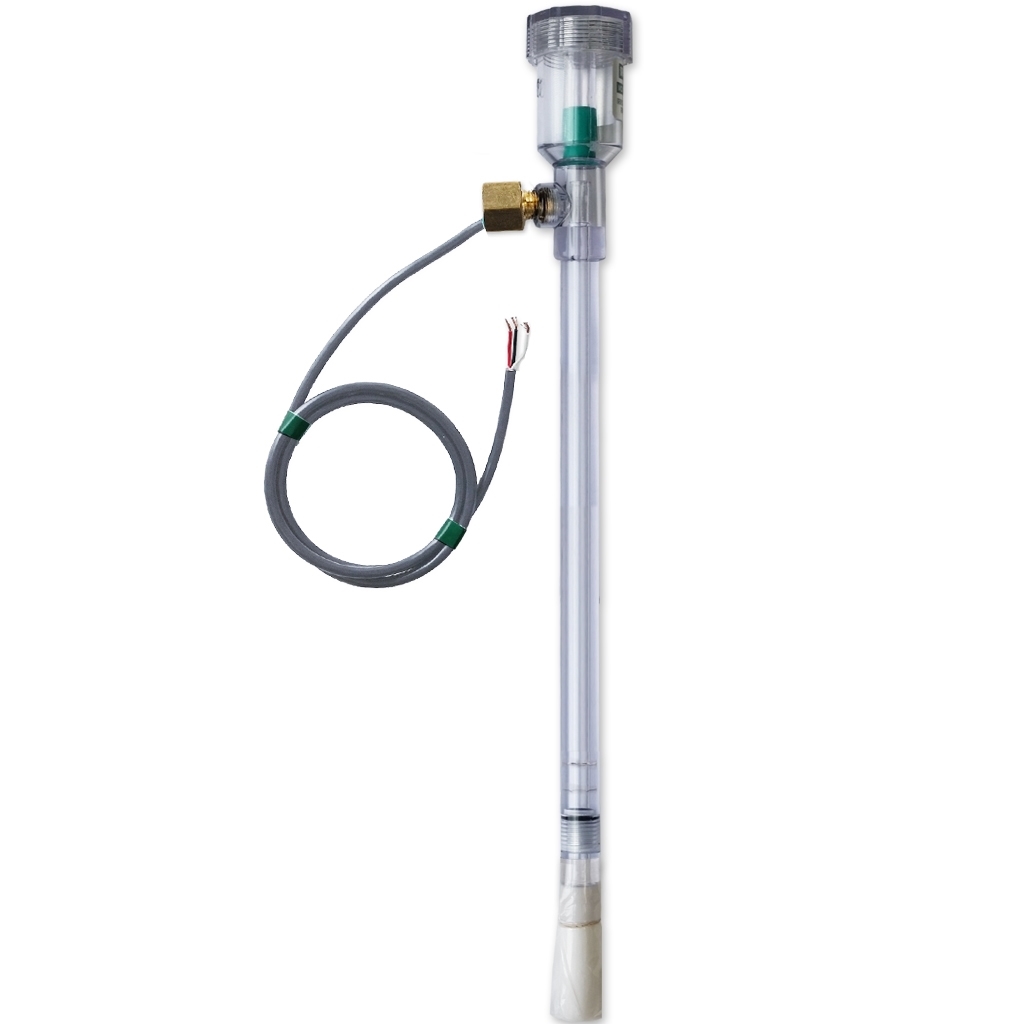

"SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | SR (Standard with replaceable ceramic tip) + RSU-V (Voltage) block 0-94 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/4'' NPT x about 2.5'' long |
| Height from the bottom of the RSU block | 18" |
| Total height | 24" |
| Tensiometer tube diameter | 0,875" |
| RSU block reading window | 0-94 kPa |
| Supply | 5 VDC (regulated), 10 mA |
| Output (voltage) | 0.5 to 4.5 V, 2.5 mA |
| Calibration | 0.0426 V/cb |
"SR" model is a standard IRROMETER tensiometer with replaceable ceramic tip (white color) for general use with row, tree, and field crops.
- For optimal irrigation management
- Measures the tension of a substrate (water availability) on a window from 0 to 94 kPa. This
sensor requires an electronic interface (control computer or controller) for an accurate reading of
the tension of the substrate. - When using the combined STERLING + tensiometer + stand-alone controller, you can set the
STERLING to wait for a desired tension before irrigation begins to limit the cracking of
tomatoes and promote deeper roots. - In addition, a producer who is scheduled to be absent may program the stand-alone
Retains afternoon irrigation schemes if the plant has not consumed water
Available due, for example, to the presence of clouds.
| Model | SR (Standard with replaceable ceramic tip) + RSU-V (Voltage) block 0-94 cb (kPa) |
| Include | Tensiometer and RSU block with wire 1/4'' NPT x about 2.5'' long |
| Height from the bottom of the RSU block | 18" |
| Total height | 24" |
| Tensiometer tube diameter | 0,875" |
| RSU block reading window | 0-94 kPa |
| Supply | 5 VDC (regulated), 10 mA |
| Output (voltage) | 0.5 to 4.5 V, 2.5 mA |
| Calibration | 0.0426 V/cb |
| Length | 18" |
| Model | SR |
| Order-driven inventory | |
| Sensor Type | Soil moisture |
| Block type | RSU-Voltage 0-94 kPa |
